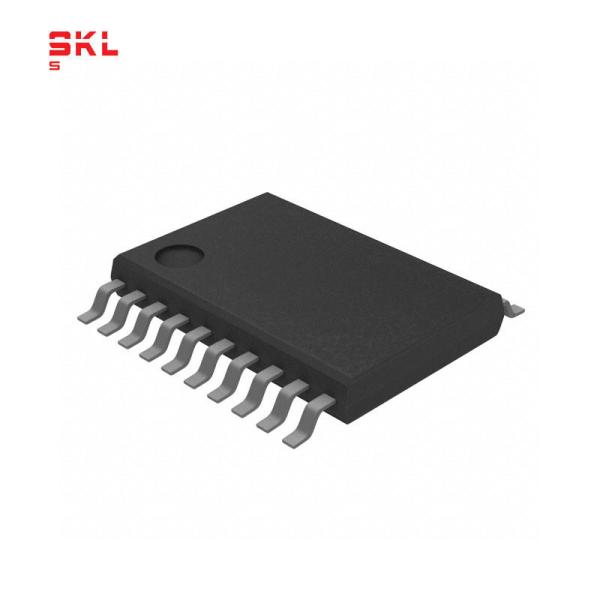

MAX3223IPWR Integrated Circuit IC Chip 3-V TO 5.5-V SINGLE-CHANNEL RS-232 LINE DRIVER RECEIVER Package 20-TSSOP
MAX3223IPWR Integrated Circuit IC Chip 3-V TO 5.5-V SINGLE-CHANNEL RS-232 LINE DRIVER RECEIVER Package 20-TSSOP
Specifications
Brand Name :
TI
Model Number :
MAX3223IPWR
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1-3 days
Packaging Details :
standard
Receiver Hysteresis :
500 mV
Data Rate :
250kbps
Voltage - Supply :
3V ~ 5.5V
Operating Temperature :
-40°C ~ 85°C
Mounting Type :
Surface Mount
Package / Case :
20-TSSOP (0.173", 4.40mm Width)
Description

MAX3223IPWR Integrated Circuit IC Chip

3-V TO 5.5-V SINGLE-CHANNEL RS-232 LINE DRIVER RECEIVER Package 20-TSSOP

Product Status
Active
Type
Transceiver
Protocol
RS232
Number of Drivers/Receivers
2/2
Duplex
Full
Receiver Hysteresis
500 mV
Data Rate
250kbps
Voltage - Supply
3V ~ 5.5V
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case
20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package
20-TSSOP

 RS-232 Bus-Pin ESD Protection Exceeds ±15 kV Using Human-Body Model (HBM)
 Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards
 Operates With 3-V to 5.5-V VCC Supply
 Operates Up To 250 kbit/s
 Two Drivers and Two Receivers
 Low Standby Current . . . 1 µA Typical
 External Capacitors . . . 4 × 0.1 µF
 Accepts 5-V Logic Input With 3.3-V Supply
 Alternative High-Speed Pin-Compatible Device (1 Mbit/s) − SNx5C3223
 Applications
− Battery-Powered Systems, PDAs, Notebooks, Laptops, Palmtop PCs, and
Hand-Held Equipment
