ADS1219IRTER IC Integrated Chip 4 Channel 24 Bit Digital Converter
ADS1219IRTER IC Integrated Chip 4 Channel 24 Bit Digital Converter
Specifications
Brand Name :
TI
Model Number :
ADS1219IRTER
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1-3 days
Packaging Details :
standard
Sampling Rate (Per Second) :
1k
Input Type :
Differential, Single Ended
Data Interface :
I²C
Reference Type :
External, Internal
Voltage - Supply, Analog :
2.3V ~ 5.5V
Voltage - Supply, Digital :
2.3V ~ 5.5V
Description

ADS1219IRTER Integrated Circuit IC Chip

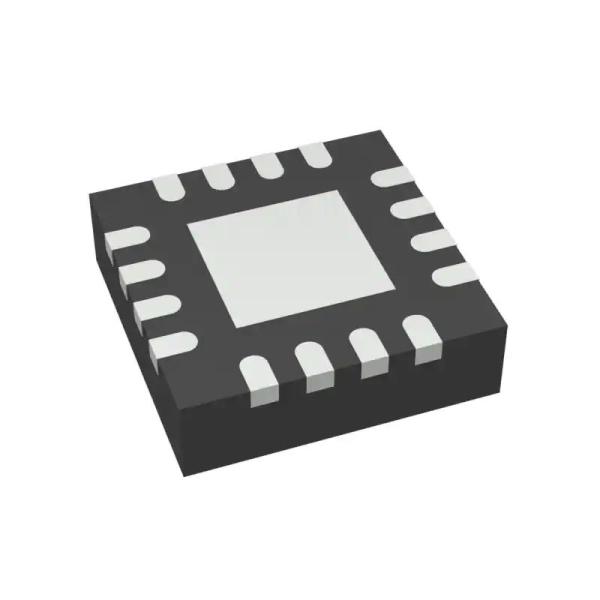

4-Channel 24-Bit Delta-Sigma ADC Analog to Digital Converter Package 16-WQFN

Product Status
Active
Number of Bits
24
Sampling Rate (Per Second)
1k
Number of Inputs
4
Input Type
Differential, Single Ended
Data Interface
I²C
Configuration
MUX-ADC
Ratio - S/H:ADC
0:1
Number of A/D Converters
1
Architecture
Sigma-Delta
Reference Type
External, Internal
Voltage - Supply, Analog
2.3V ~ 5.5V
Voltage - Supply, Digital
2.3V ~ 5.5V
Features
-
Operating Temperature
-40°C ~ 125°C
Package / Case
16-WFQFN Exposed Pad
Supplier Device Package
16-WQFN (3x3)
Mounting Type
Surface Mount

Features
• Easy to Use With Only One Register to Program
• Current Consumption as Low as 315 µA (typ)
• Wide Supply Range: 2.3 V to 5.5 V
• Rail-to-Rail Input Buffers to Achieve High Input
Impedance
• Programmable Gains: 1 and 4
• Programmable Data Rates: Up to 1 kSPS
• Up to 20 Bits Effective Resolution
• Simultaneous 50-Hz and 60-Hz Rejection at
20 SPS With Single-Cycle Settling Digital Filter
• Two Differential or Four Single-Ended Inputs
• Internal 2.048-V Reference: 5 ppm/°C (typ) Drift
• Internal 2% Accurate Oscillator
• I 2C-Compatible Interface
• Supported I 2C Bus Speed Modes:
Standard-Mode, Fast-Mode, Fast-Mode Plus
• 16 Pin-Configurable I 2C Addresses
• Package: 3.0-mm × 3.0-mm × 0.75-mm WQFN
