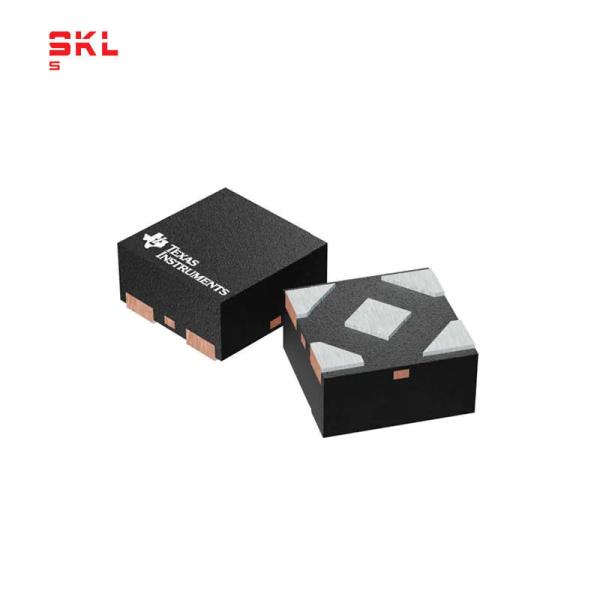

TLV9061IDPWR Amplifier IC Chips 10-MHz RRIO CMOS Operational Amplifiers Cost-Sensitive Systems Package 5-X2SON
TLV9061IDPWR Amplifier IC Chips 10-MHz RRIO CMOS Operational Amplifiers Cost-Sensitive Systems Package 5-X2SON
Specifications
Brand Name :
TI
Model Number :
TLV9061IDPWR
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1-3 days
Packaging Details :
standard
Slew Rate :
6.5V/µs
Gain Bandwidth Product :
10 MHz
Current - Input Bias :
0.5 pA
Voltage - Input Offset :
300 µV
Current - Supply :
538µA
Current - Output / Channel :
50 mA
Description

TLV9061IDPWR Amplifier IC Chips

10-MHz RRIO CMOS Operational Amplifiers Cost-Sensitive Systems Package 5-X2SON

Product Status
Active
Amplifier Type
CMOS
Number of Circuits
1
Output Type
Rail-to-Rail
Slew Rate
6.5V/µs
Gain Bandwidth Product
10 MHz
Current - Input Bias
0.5 pA
Voltage - Input Offset
300 µV
Current - Supply
538µA
Current - Output / Channel
50 mA
Voltage - Supply Span (Min)
1.8 V
Voltage - Supply Span (Max)
5.5 V
Operating Temperature
-40°C ~ 125°C (TA)
Mounting Type
Surface Mount
Package / Case
5-XFDFN Exposed Pad
Supplier Device Package
5-X2SON (0.8x0.8)

Features
• Rail-to-rail input and output
• Low input offset voltage: ±0.3 mV
• Unity-gain bandwidth: 10 MHz
• Low broadband noise: 10 nV/√Hz
• Low input bias current: 0.5 pA
• Low quiescent current: 538 µA
• Unity-gain stable
• Internal RFI and EMI filter
• Operational at supply voltages as low as 1.8 V
• Easier to stabilize with higher capacitive load due
to resistive open-loop output impedance
• Shutdown version: TLV906xS
• Extended temperature range: –40°C to 125°C


Applications
• E-bikes
• Smoke detectors
• HVAC: heating, ventilating, and air conditioning
• Motor control: AC induction
• Refrigerators
• Wearable devices
• Laptop computers
• Washing machines
• Sensor signal conditioning
• Power modules
• Barcode scanners
• Active filters
• Low-side current sensing
