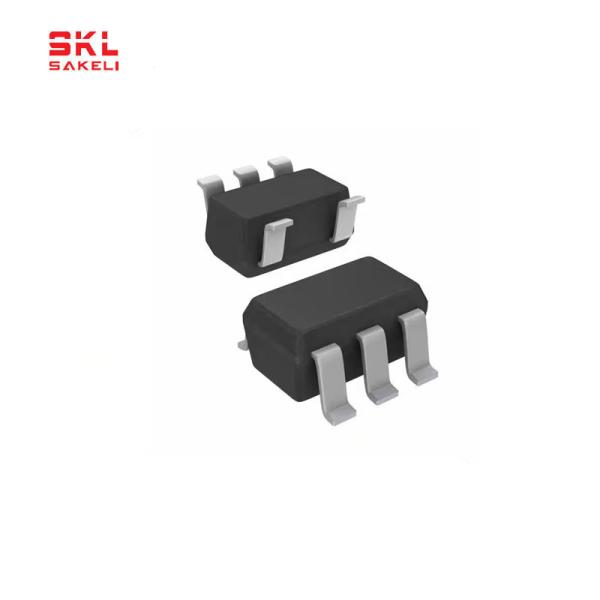

TLV9351IDBVR Amplifier IC Chips 3.5-MHz 40-V RRO MUX-Friendly Operational Cost-Sensitive Systems Package SOT-23-5
TLV9351IDBVR Amplifier IC Chips 3.5-MHz 40-V RRO MUX-Friendly Operational Cost-Sensitive Systems Package SOT-23-5
Specifications
Brand Name :
TI
Model Number :
TLV9351IDBVR
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1-3 days
Packaging Details :
standard
Slew Rate :
20V/µs
Gain Bandwidth Product :
3.5 MHz
Current - Input Bias :
10 pA
Voltage - Input Offset :
350 µV
Current - Supply :
650µA
Current - Output / Channel :
60 mA
Description

TLV9351IDBVR Amplifier IC Chips

3.5-MHz 40-V RRO MUX-Friendly Operational Cost-Sensitive Systems Package SOT-23-5

Product Status
Active
Amplifier Type
General Purpose
Number of Circuits
1
Output Type
Rail-to-Rail
Slew Rate
20V/µs
Gain Bandwidth Product
3.5 MHz
Current - Input Bias
10 pA
Voltage - Input Offset
350 µV
Current - Supply
650µA
Current - Output / Channel
60 mA
Voltage - Supply Span (Min)
4.5 V
Voltage - Supply Span (Max)
40 V
Operating Temperature
-40°C ~ 125°C (TA)
Mounting Type
Surface Mount
Package / Case
SC-74A, SOT-753
Supplier Device Package
SOT-23-5

Features
• Low offset voltage: ±350 µV
• Low offset voltage drift: ±1.5 µV/°C
• Low noise: 15 nV/√Hz at 1 kHz
• High common-mode rejection: 110 dB
• Low bias current: ±10 pA
• Rail-to-rail output
• MUX-friendly/comparator inputs
– Amplifier operates with differential inputs up to supply rail
– Amplifier can be used in open-loop or as comparator
• Wide bandwidth: 3.5-MHz GBW
• High slew rate: 20 V/µs
• Low quiescent current: 600 µA per amplifier
• Wide supply: ±2.25 V to ±20 V, 4.5 V to 40 V
• Robust EMIRR performance: EMI/RFI filters on input pins
• Differential and common-mode input voltage range to supply rail

• Battery protectionWhy buy from us >>> Fast / Safely / Conveniently
• SKL is a Stock keeper and trade company of Electronic components .Our branches office include China, Hong Kong, Sigapore , Canada . Offer business, service, resourcing and information for our global member.
• Goods are ensured the highest quality possible and are delivered to our customers all over the world with speed and precision.

How to buy >>>
• Contact us by email & sent your inquire with your Transport destination .
• Online chat, the commissioner would be responded ASAP.

Service >>>
• Forwarder Shipment to world-wide, DHL ,TNT ,UPS,FEDEX etc. buyer don`t need to worry about shipping problem
• We will try to respond as quickly as possible. But due to time zone difference, please allow up to 24 hours to get your mail replied. The products were tested by some devices or software, we ensure that there is no quality problems.
• We are committed to providing fast, convenient and safe transportation service to global buyer.

TLV9351IDBVR Amplifier IC Chips 3.5-MHz 40-V RRO MUX-Friendly Operational Cost-Sensitive Systems Package SOT-23-5
