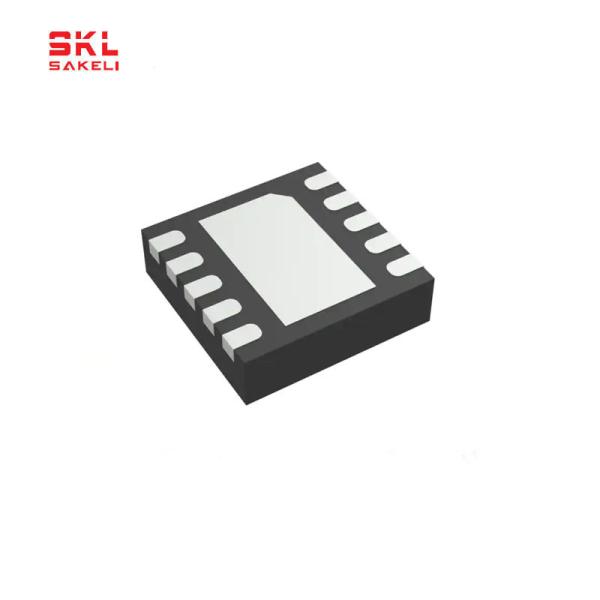

TPS54334DRCR Power Management ICs 3-A Output Current Step-Down Voltage Converter Package 10-VFDFN
TPS54334DRCR Power Management ICs 3-A Output Current Step-Down Voltage Converter Package 10-VFDFN
Specifications
Brand Name :
TI
Model Number :
TPS54334DRCR
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1-3 days
Packaging Details :
standard
Voltage - Input (Min) :
4.2V
Voltage - Input (Max) :
28V
Voltage - Output (Min/Fixed) :
0.8V
Voltage - Output (Max) :
24V
Current - Output :
3A
Frequency - Switching :
570kHz
Description

TPS54334DRCR Power Management ICs 3-A Output Current Step-Down Voltage Converter Package 10-VFDFN

Product Status
Active
Function
Step-Down
Output Configuration
Positive
Topology
Buck
Output Type
Adjustable
Number of Outputs
1
Voltage - Input (Min)
4.2V
Voltage - Input (Max)
28V
Voltage - Output (Min/Fixed)
0.8V
Voltage - Output (Max)
24V
Current - Output
3A
Frequency - Switching
570kHz
Synchronous Rectifier
Yes
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
10-VFDFN Exposed Pad
Supplier Device Package
10-VSON (3x3)

Features
• Two 128mΩ/84mΩ MOSFETs for 3A Continuous Output Current
• Power Good
• Low 2 µA Shutdown Quiescent Current
• 0.8 V Internal Voltage Reference with ±1.5% Accuracy Over Temperature
• Fixed-Frequency Current Mode Control
• Pulse Skipping Boosts Efficiency at Light Loads
• Overcurrent Protection for Both MOSFETs with Hiccup Mode for Severe Fault Conditions
• Thermal and Overvoltage Transient Protection
• Available in Easy-to-Use 8-Pin SOIC PowerPAD™ and 10-Pin SON
• Monotonic Start-Up into Pre-biased Outputs
