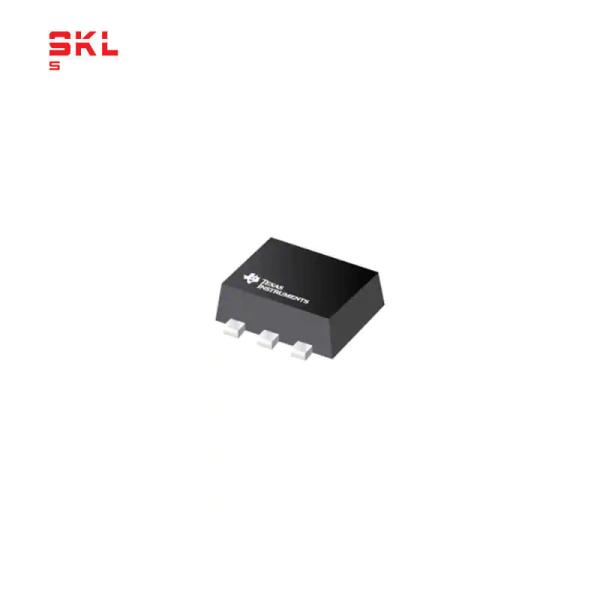

TPS562231DRLR Power Management ICs 2-A Synchronous Step-Down Buck Converter​ ​Package SOT-563
TPS562231DRLR Power Management ICs 2-A Synchronous Step-Down Buck Converter​ ​Package SOT-563
Specifications
Brand Name :
TI
Model Number :
TPS562231DRLR
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1-3 days
Packaging Details :
standard
Voltage - Input (Min) :
4.5V
Voltage - Input (Max) :
17V
Voltage - Output (Min/Fixed) :
0.6V
Voltage - Output (Max) :
7V
Current - Output :
2A
Frequency - Switching :
850kHz
Description

TPS562231DRLR Power Management ICs 2-A Synchronous Step-Down Buck Converter​ ​Package SOT-563

Product Status
Active
Function
Step-Down
Output Configuration
Positive
Topology
Buck
Output Type
Adjustable
Number of Outputs
1
Voltage - Input (Min)
4.5V
Voltage - Input (Max)
17V
Voltage - Output (Min/Fixed)
0.6V
Voltage - Output (Max)
7V
Current - Output
2A
Frequency - Switching
850kHz
Synchronous Rectifier
Yes
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
SOT-563, SOT-666
Supplier Device Package
SOT-563

Features
• 2-A converter integrated 95-mΩ and 55-mΩ FETs
• D-CAP3™ Mode Control with fast transient response
• Input voltage range: 4.5 V to 17 V
• Output voltage range: 0.6 V to 7 V
• Pulse skip mode
• 850-kHz switching frequency
• Low shutdown current less than 2 µA (typical)
• 2% feedback voltage accuracy (25ºC)
• Startup from pre-biased output voltage
• Cycle-by-cycle over current limit
• Hiccup-mode over current protection
• Non-latch UVP and TSD protections
• 6-pin SOT563 package
• Precision enable
• Pin-to-pin compatible with TPS563231


Applications
• Standard 12-V rail supplies
• Digital TV power supply
• Embedded systems
• Networking home terminal
• Digital set top box (STB)
• Surveillance
• E-Meter

• Battery protectionWhy buy from us >>> Fast / Safely / Conveniently
