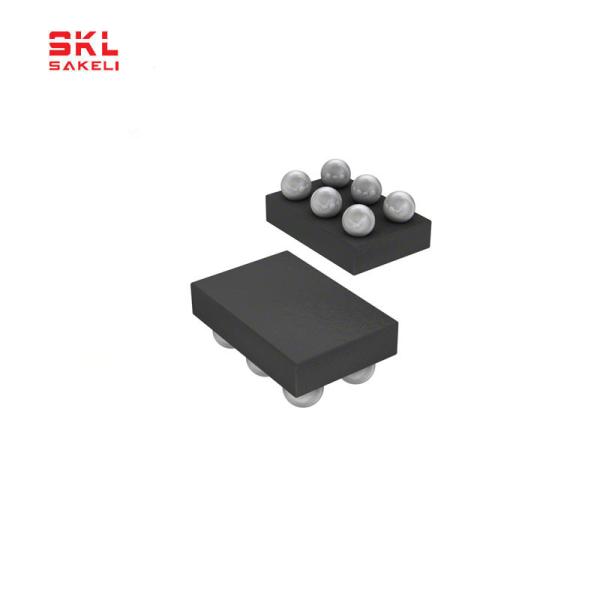

TPS62801YKAR Power Management ICs Buck Switching Regulator IC Positive Adjustable (Fixed) Output 1A Package 6-XFBGA
TPS62801YKAR Power Management ICs Buck Switching Regulator IC Positive Adjustable (Fixed) Output 1A Package 6-XFBGA
Specifications
Brand Name :
TI
Model Number :
TPS62801YKAR
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1-3 days
Packaging Details :
standard
Voltage - Input (Min) :
1.8V
Voltage - Input (Max) :
5.5V
Voltage - Output (Min/Fixed) :
0.8V (1.2V)
Voltage - Output (Max) :
1.55V
Current - Output :
1A
Frequency - Switching :
4MHz
Description

TPS62801YKAR Power Management ICs Buck Switching Regulator IC Positive Adjustable (Fixed) Output 1A Package 6-XFBGA

Product Status
Active
Function
Step-Down
Output Configuration
Positive
Topology
Buck
Output Type
Adjustable (Fixed)
Number of Outputs
1
Voltage - Input (Min)
1.8V
Voltage - Input (Max)
5.5V
Voltage - Output (Min/Fixed)
0.8V (1.2V)
Voltage - Output (Max)
1.55V
Current - Output
1A
Frequency - Switching
4MHz
Synchronous Rectifier
Yes
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
6-XFBGA, DSBGA
Supplier Device Package
6-DSBGA (1.05x0.70)

Features
• 1.75-V to 5.5-V input voltage range
• 2.3-µA operating quiescent current
• Up to 4-MHz switching frequency
• 0.6-A or 1-A output current
• 1% output voltage accuracy
• Selectable power save and forced PWM mode
• R2D converter for flexible VOUT setting
• 16 selectable and one fixed output voltages
– TPS62800 (4 MHz): 0.4 V to 0.775 V
– TPS62801 (4 MHz): 0.8 V to 1.55 V
– TPS62802 (4 MHz): 1.8 V to 3.3 V
– TPS62806 (1.5 MHz): 0.4 V to 0.775 V
– TPS62807 (1.5 MHz): 0.8 V to 1.55 V
– TPS62808 (1.5 MHz): 1.8 V to 3.3 V
• Smart enable pin
• Optimized pinout to support 0201 components
• DCS-Control topology
• Output discharge
• 100% duty cycle operation
• Tiny 6-pin, 0.35-mm pitch WCSP package
• Supports < 0.6-mm solution height
• Supports < 5-mm2
solution size

• Battery protectionWhy buy from us >>> Fast / Safely / Conveniently
• SKL is a Stock keeper and trade company of Electronic components .Our branches office include China, Hong Kong, Sigapore , Canada . Offer business, service, resourcing and information for our global member.
• Goods are ensured the highest quality possible and are delivered to our customers all over the world with speed and precision.

How to buy >>>
• Contact us by email & sent your inquire with your Transport destination .
• Online chat, the commissioner would be responded ASAP.

Service >>>
• Forwarder Shipment to world-wide, DHL ,TNT ,UPS,FEDEX etc. buyer don`t need to worry about shipping problem
• We will try to respond as quickly as possible. But due to time zone difference, please allow up to 24 hours to get your mail replied. The products were tested by some devices or software, we ensure that there is no quality problems.
• We are committed to providing fast, convenient and safe transportation service to global buyer.

TPS62801YKAR Power Management ICs Buck Switching Regulator IC Positive Adjustable (Fixed) Output 1A Package 6-XFBGA
