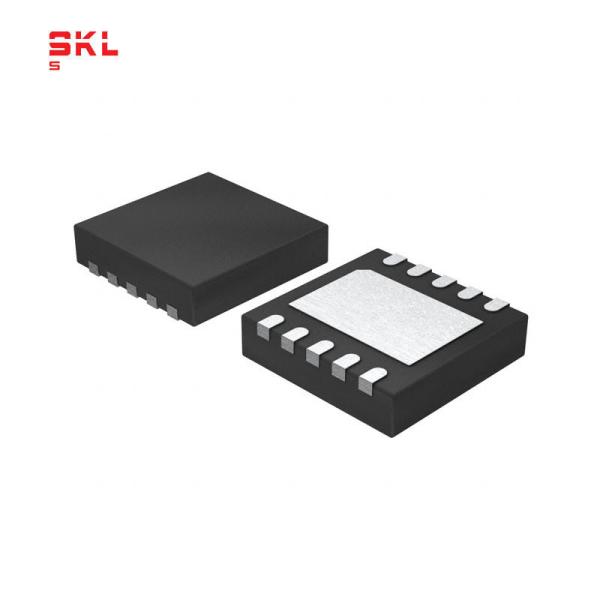

MAX1556ETB+T Power Management ICs 16µA IQ 1.2A PWM Step-Down DC-DC Converters Package 10-WFDFN
MAX1556ETB+T Power Management ICs 16µA IQ 1.2A PWM Step-Down DC-DC Converters Package 10-WFDFN
Specifications
Brand Name :
ADI
Model Number :
MAX1556ETB+T
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1-3 days
Packaging Details :
standard
Product Status :
Active
Function :
Step-Down
Output Configuration :
Positive
Topology :
Buck
Output Type :
Adjustable (Programmable)
Operating Temperature :
-40°C ~ 85°C (TA)
Description

MAX1556ETB+T Power Management ICs 16µA IQ 1.2A PWM Step-Down DC-DC Converters Package 10-WFDFN

Product Status
Active
Function
Step-Down
Output Configuration
Positive
Topology
Buck
Output Type
Adjustable (Programmable)
Number of Outputs
1
Voltage - Input (Min)
2.6V
Voltage - Input (Max)
5.5V
Voltage - Output (Min/Fixed)
0.75V (1.8V, 2.5V, 3.3V)
Voltage - Output (Max)
5.5V
Current - Output
1.2A
Frequency - Switching
1MHz
Synchronous Rectifier
Yes
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
10-WFDFN Exposed Pad
Supplier Device Package
10-TDFN (3x3)
Applications
PDAs and Palmtop Computers
Cell Phones and Smart Phones
Digital Cameras and Camcorders
Portable MP3 and DVD Players
Hand-Held Instruments
Features
♦ Up to 97% Efficiency
♦ 95% Efficiency at 1mA Load Current
♦ Low 16µA Quiescent Current
♦ 1MHz PWM Switching
♦ Tiny 3.3µH Inductor
♦ Selectable 3.3V, 2.5V, 1.8V, 1.5V, 1.3V, 1.2V, 1.0V,
and Adjustable Output
♦ 1.2A Guaranteed Output Current
(MAX1556/MAX1556A)
♦ Voltage Positioning Optimizes Load-Transient
Response
♦ Low 27µA Quiescent Current in Dropout
♦ Low 0.1µA Shutdown Current
♦ No External Schottky Diode Required
♦ Analog Soft-Start with Zero Overshoot Current
♦ Small, 10-Pin, 3mm x 3mm TDFN Package
