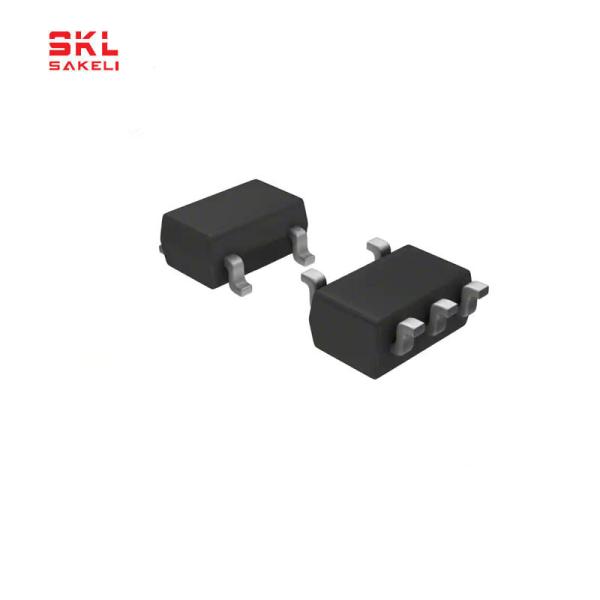

MAX1682EUK+T Power Management ICs Switched-Capacitor Voltage Doublers Package SOT23-5
MAX1682EUK+T Power Management ICs Switched-Capacitor Voltage Doublers Package SOT23-5
Specifications
Brand Name :
ADI
Model Number :
MAX1682EUK+T
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1-3 days
Packaging Details :
standard
Product Status :
Active
Function :
Ratiometric
Output Configuration :
Positive
Topology :
Charge Pump
Output Type :
Fixed
Operating Temperature :
-40°C ~ 85°C (TA)
Description

MAX1682EUK+T Power Management ICs Switched-Capacitor Voltage Doublers Package SOT23-5

Product Status
Active
Function
Ratiometric
Output Configuration
Positive
Topology
Charge Pump
Output Type
Fixed
Number of Outputs
1
Voltage - Input (Min)
2V
Voltage - Input (Max)
5.5V
Voltage - Output (Min/Fixed)
2Vin
Voltage - Output (Max)
-
Current - Output
45mA
Frequency - Switching
12kHz
Synchronous Rectifier
No
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
SC-74A, SOT-753
Supplier Device Package
SOT-23-5

General Description:
The ultra-small MAX1682/MAX1683 monolithic, CMOS
charge-pump voltage doublers accept input voltages
ranging from +2.0V to +5.5V. Their high voltage-conversion efficiency (over 98%) and low operating current
(110µA for MAX1682) make these devices ideal for both battery-powered and board-level voltage-doubler
applications.


Oscillator control circuitry and four power MOSFET switches are included on-chip. The MAX1682 operates
at 12kHz, and the MAX1683 operates at 35kHz. A typical application includes generating a 6V supply to
power an LCD display in a hand-held PDA. Both parts are available in a 5-pin SOT23 package and can deliver
30mA with a typical voltage drop of 600mV.


Applications:
Small LCD Panels
Cell Phones
Handy-Terminals
PDAs


Features:
♦ 5-Pin SOT23 Package
♦ +2.0V to +5.5V Input Voltage Range
♦ 98% Voltage-Conversion Efficiency
♦ 110µA Quiescent Current (MAX1682)
♦ Requires Only Two Capacitors
♦ Up to 45mA Output Current
