TPS61046YFFR PMIC Chip Regulators isolation switch Regulator Adjustable 4.5V 1.2A
TPS61046YFFR PMIC Chip Regulators isolation switch Regulator Adjustable 4.5V 1.2A
TPS61046YFFR PMIC Chip Regulators isolation switch Regulator Adjustable 4.5V 1.2A
TPS61046YFFR PMIC Chip Regulators isolation switch Regulator Adjustable 4.5V 1.2A
Specifications
Brand Name :
TI
Model Number :
TPS61046YFFR
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1 - 3 days
Packaging Details :
standard
Mounting Type :
Surface Mount
Operating Temperature :
-40°C ~ 125°C (TJ)
Package / Case :

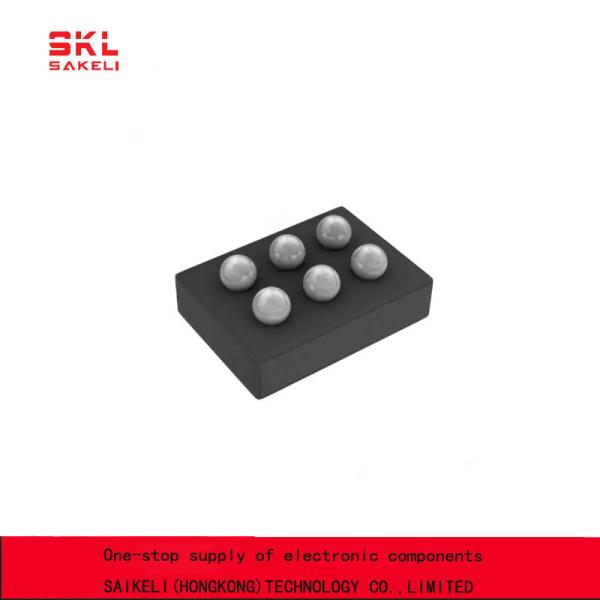

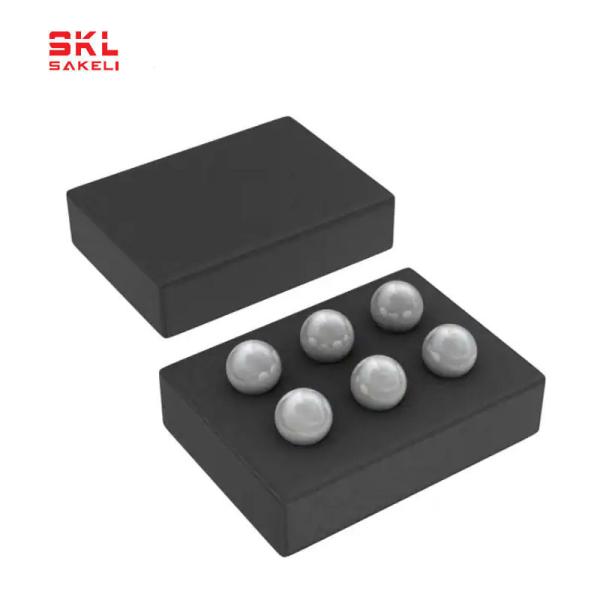

6-UFBGA, DSBGA
Supplier Device Packag :
6-DSBGA
Voltage - Input (Min) :
1.8V
Voltage - Input (Max) :
5.5V
PN :
TPS61046YFFR
Description
TPS61046YFFR Power Management ICs PMIC
6-DSBGA Voltage Regulators Boost Switching Regulator Adjustable 4.5V Output 1.2A

Function
Step-Up
Output Configuration
Positive
Topology
Boost
Output Type
Adjustable
Number of Outputs
1
Voltage - Input (Min)
1.8V
Voltage - Input (Max)
5.5V
Voltage - Output (Min/Fixed)
4.5V
Voltage - Output (Max)
28V
Current - Output
1.2A
Frequency - Switching
1.05MHz
Synchronous Rectifier
No
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
6-UFBGA, DSBGA
Supplier Device Package
6-DSBGA
Base Product Number
TPS61046


Description

Description for the TPS61046


The TPS61046 is a highly integrated boost converter designed for applications requiring high voltage and tiny solution size such as PMOLED panel and sensor module. The TPS61046 integrates a 30-V power switch, input/output isolation switch, and power diode. It can output up to 28 V from input of a Li+ battery or two cell alkaline batteries in series.

The TPS61046 operates with a switching frequency at 1.0 MHz. This allows the use of small external components. The TPS61046 has an internal default 12-V output voltage setting by connecting the FB pin to the VIN pin. Thus it only needs three external components to get 12-V output voltage. Together with WCSP package, the TPS61046 gives a very small overall solution size. The TPS61046 has typical 900-mA switch current limit. It has 10-ms built-in soft start time to minimize the inrush current. When the TPS61046 is in shutdown mode, the isolation switch disconnects the output from input to minimize the leakage current. The TPS61064 also implements output short circuit protection, output over-voltage protection and thermal shutdown.
