TPS53513RVER Power Management ICs Buck Switching Regulator Positive Adjustable 0.6V Output 8A ​
TPS53513RVER Power Management ICs Buck Switching Regulator Positive Adjustable 0.6V Output 8A ​
Specifications
Brand Name :
TI
Model Number :
TPS53513RVER
Place of Origin :
original
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999999
Delivery Time :
1-3 days
Packaging Details :
standard
Voltage - Input (Min) :
1.5V
Voltage - Input (Max) :
18V
Voltage - Output (Min/Fixed) :
0.6V
Voltage - Output (Max) :
5.5V
Current - Output :
8A
Frequency - Switching :
200kHz ~ 1MHz
PN :
TPS53513RVER
Description

TPS53513RVER Power Management ICs Buck Switching Regulator Positive Adjustable 0.6V Output 8A ​ Package 28-VFQFN

Product Status
Active
Function
Step-Down
Output Configuration
Positive
Topology
Buck
Output Type
Adjustable
Number of Outputs
1
Voltage - Input (Min)
1.5V
Voltage - Input (Max)
18V
Voltage - Output (Min/Fixed)
0.6V
Voltage - Output (Max)
5.5V
Current - Output
8A
Frequency - Switching
200kHz ~ 1MHz
Synchronous Rectifier
Yes
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount

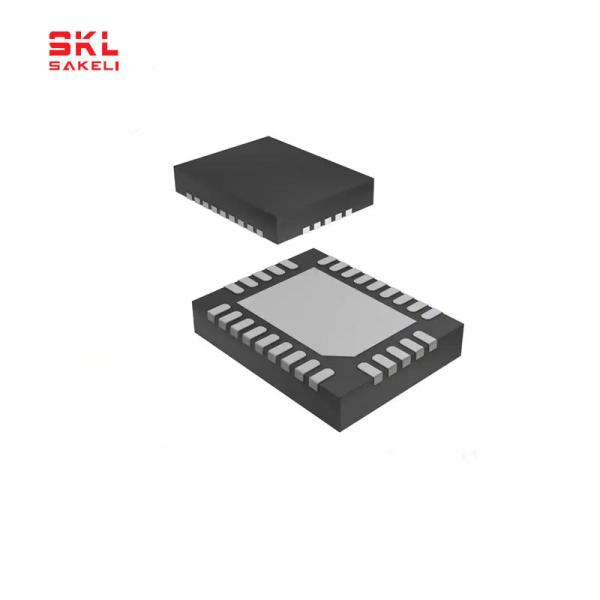

Package / Case
28-VFQFN Exposed Pad
Supplier Device Package
28-VQFN-CLIP (4.5x3.5)

Features
• Integrated 13.8-mΩ and 5.9-mΩ MOSFETs With 8-A Continuous Output Current
• Supports All Ceramic Output Capacitors
• Reference Voltage 600 mV ±0.5% Tolerance
• Output Voltage Range: 0.6 V to 5.5 V
• D-CAP3™ Control Mode With Fast Load-Step ResponseSWIFT™
• Auto-Skipping Eco-mode™ for High Light-Load Efficiency
• FCCM for Tight Output Ripple and Voltage Requirements
• Eight Selectable Frequency Settings from 250 kHz to 1 MHz
• Precharged Start-up Capability
• Built-in Output Discharge Circuit
• Open-Drain Power-Good Output
• 3.5 mm × 4.5 mm, 28-Pin, VQFN Package
• Create a Custom Design Using the TPS53513 With the WEBENCH® Power Designer

• Battery protectionWhy buy from us >>> Fast / Safely / Conveniently
• SKL is a Stock keeper and trade company of Electronic components .Our branches office include China, Hong Kong, Sigapore , Canada . Offer business, service, resourcing and information for our global member.
• Goods are ensured the highest quality possible and are delivered to our customers all over the world with speed and precision.

How to buy >>>
• Contact us by email & sent your inquire with your Transport destination .
• Online chat, the commissioner would be responded ASAP.

Service >>>
• Forwarder Shipment to world-wide, DHL ,TNT ,UPS,FEDEX etc. buyer don`t need to worry about shipping problem
• We will try to respond as quickly as possible. But due to time zone difference, please allow up to 24 hours to get your mail replied. The products were tested by some devices or software, we ensure that there is no quality problems.
• We are committed to providing fast, convenient and safe transportation service to global buyer.

TPS53513RVER Power Management ICs Buck Switching Regulator Positive Adjustable 0.6V Output 8A ​
