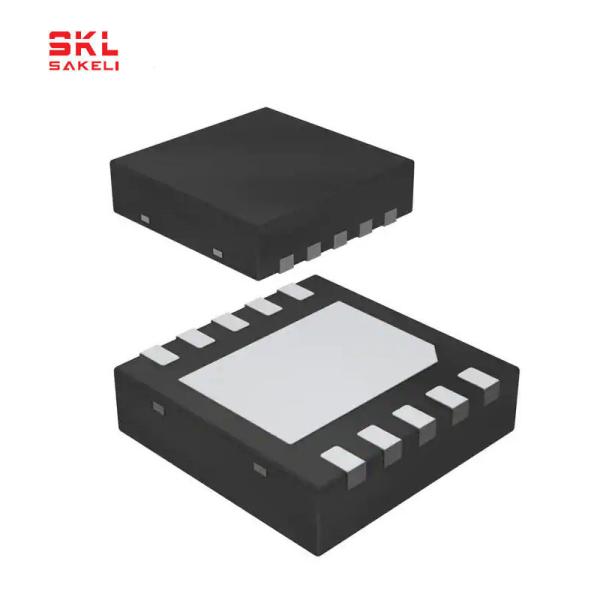

TPS63060DSCR Power Management ICs

PMIC Buck-Boost Switching Regulator IC Positive 2.5V 8V 2A Package 10-WSON

Manufacturer

Texas Instruments

Description

IC REG BCK BST ADJ 2A 10WSON

TPS63060DSCR Description

The TPS63060 devices provide a power supply solution for products powered by either three-cell up to six-cell alkaline, NiCd or NiMH battery, or a one-cell or dual-cell Li-Ion or Li-polymer battery. Output currents can go as high as 2 A while using a dual-cell Li-Ion or Li-polymer battery, and discharge to 5 V or lower. The buck-boost converter is based on a fixed frequency, pulse width modulation (PWM) controller using synchronous rectification to obtain maximum efficiency. At low load currents, the converter enters power save mode to maintain high efficiency over a wide load current range. The power save mode can be disabled, forcing the converter to operate at a fixed switching frequency. The maximum average current in the switches is limited to a typical value of 2.25 A. The output voltage is programmable using an external resistor divider, or is fixed internally on the chip. The converter can be disabled to minimize battery drain. During shutdown, the load disconnects from the battery. The devices are available in a 3 mm × 3 mm, 10-pin, WSON (DSC) package.

TPS63060DSCR Features

Input voltage range: 2.5 V to 12 V

Efficiency: Up to 93%

Automatic transition between step down and boost mode

Typical device quiescent current: < 30 μA

Fixed and adjustable output voltage options from 2.5 V to 8 V

Power save mode for improved efficiency at low output power

Forced fixed-frequency operation at 2.4 MHz and synchronization possible

Power good output

Buck-Boost Overlap Control?

Load disconnect during shutdown

Overtemperature protection

Overvoltage protection

TPS63060DSCR Applications

Dual Li-ion application

Digital still cameras (DSC) and camcorders

Notebook computer

Industrial metering equipment

Ultra mobile PCs and mobile internet devices

Personal medical products

High-power LEDs
