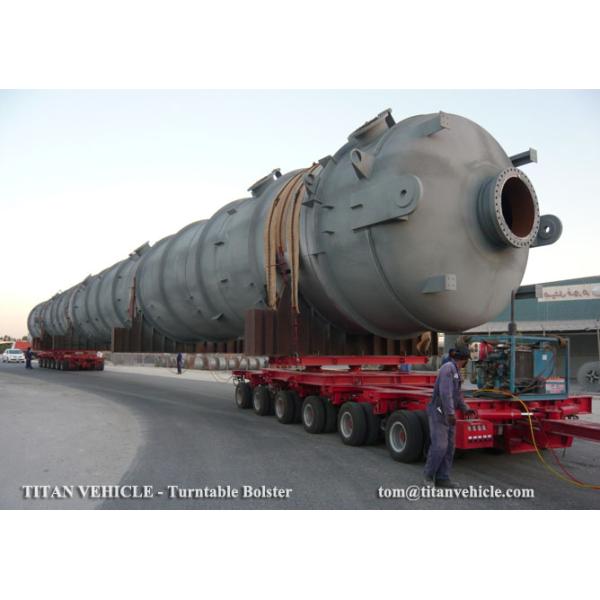

Turntable Bolster Gooseneck Modular Trailer for carrying 120 ton 200 ton tank

Specifications

Brand Name :

TITAN Turntable Bolster

Model Number :

TITAN Turntable Bolster

Certification :

SGS. BV

Place of Origin :

MOQ :

Price :

Payment Terms :

T/T, T/T

Supply Ability :

200unit/month

Delivery Time :

25 working days

Packaging Details :

nude packing

Loading capacity :

120 ton - 200 ton

Transport :

40 meters long tank

platform height :

650mm+/-280mm

steering angle :

100°

suspensio :

hydraulic suspension

Description

Turntable Bolster Gooseneck Modular Trailer for carrying 120 ton 200 ton tank

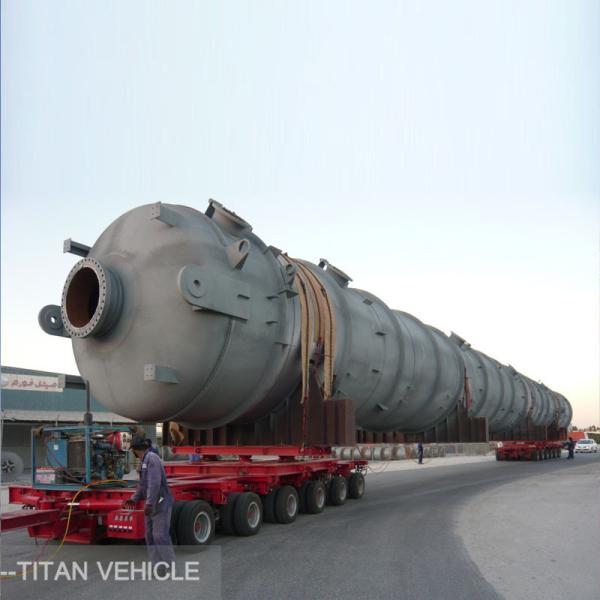

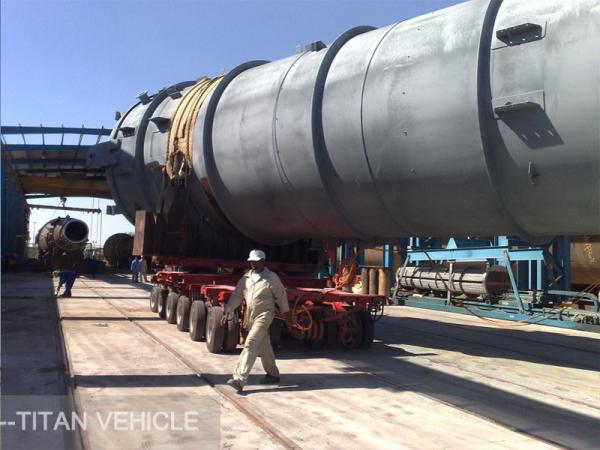

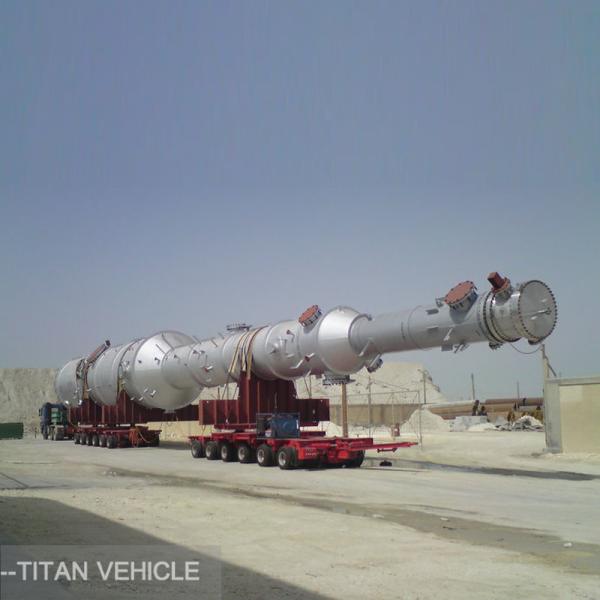

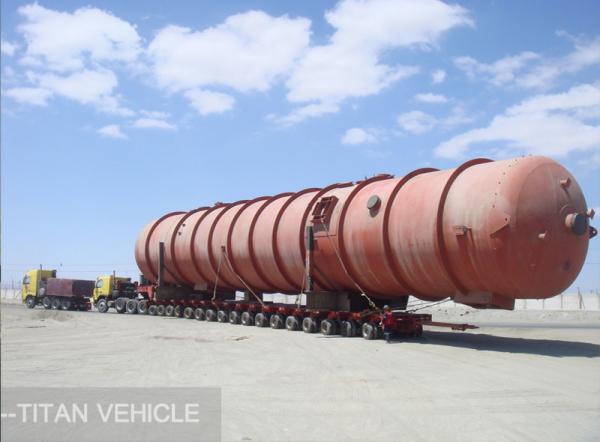

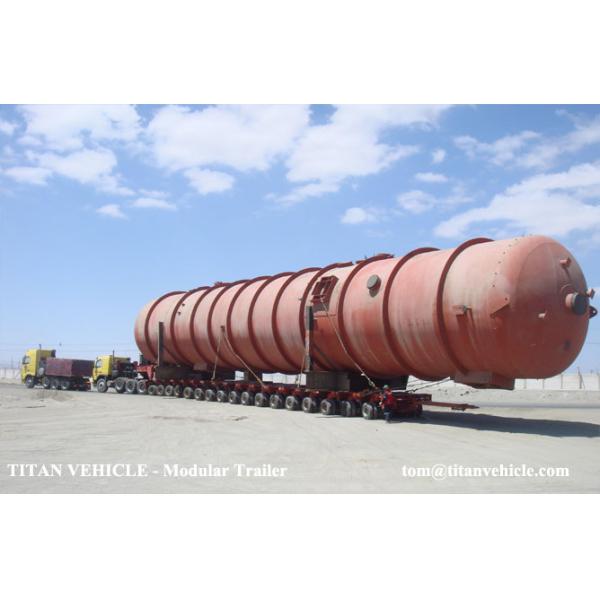

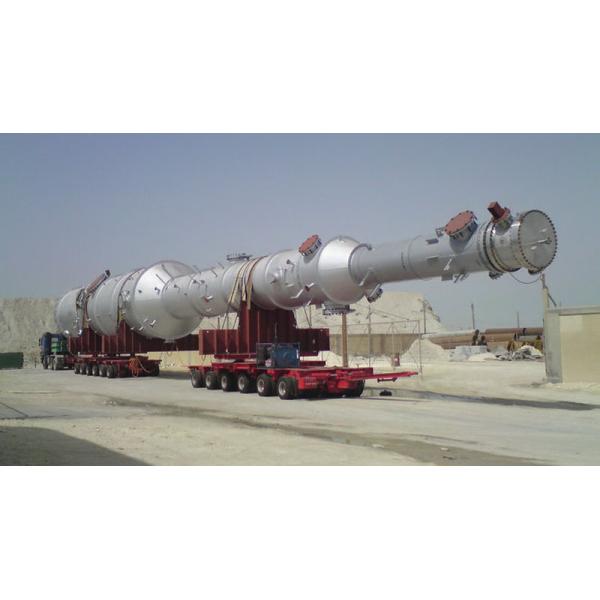

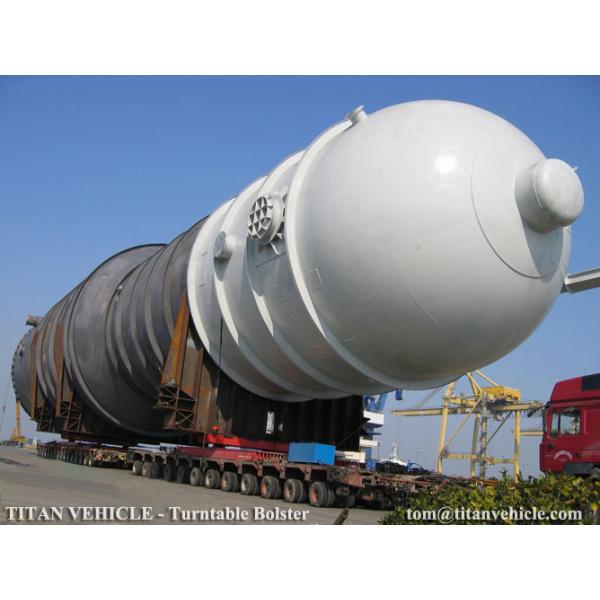

TITAN designs and produce turntable bolster goosenck modular trailer for transpoting 120 ton to 200 ton large tank, the modular trailer equipped with hydraulic cylinders turntables and bolsters are able to automatically follow steering of modular trailer and tractor.

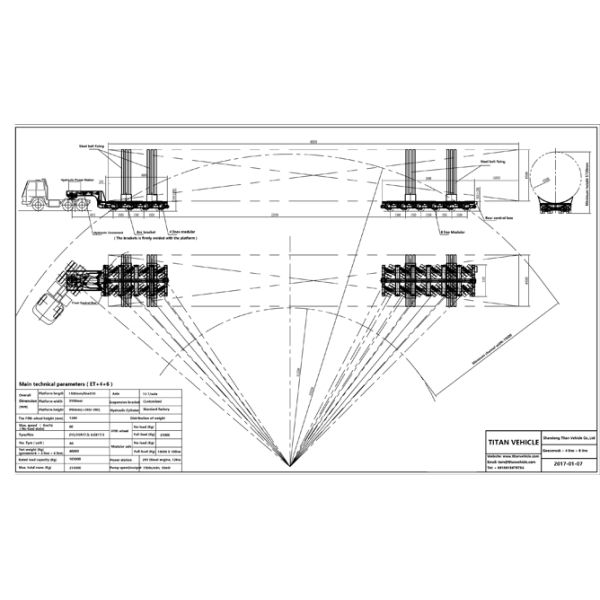

When truck head turning, hydraulic pressure from front turntable will be passed to rear bolster, then steering cylinder will pull or push suspension via tie rod to realize simultaneous steering, and the steering angle up to 100°, just image the long cargo as a steering rod.

Our TITAN turntable bolster can be supplied to fit with Goldhofer THP/SL, Scheuerle InterCombi, Nicolas MDED, Cometto 51M, Scheuerle SPMT and Goldhofer PST SPMT.

Product video link:https://youtu.be/3eflTIyrt9Q

Product link: http://www.titanvehicle.com/product/en/Turntable-Bolster-Gooseneck-Modular-Trailer-for-carrying-120-ton-200-ton-tank.html

Features of TITAN Turntable Bolster

Samll turning radius.
Platform height 650mm+/-280mm
steering angle up to 100° and stability.
Spread concentrated weight via distribution bolster.
Protect long cargo away from twist force.
Hydraulic jacking up system help to lift cargo.
hydraulic steering system integrated.

Turntable Bolster Gooseneck Modular Trailer for carrying 120 ton 200 ton tank

Contact information

If you have any interests for our Turntable Bolster Gooseneck Modular Trailer, pleasuRe don't hesitate to contact us, we provide you the best solution for you. we will do our best effort to support at the fist time. Thank you.

Email: tom@titanvehicle.com

Phone: +8618615679754

Tel:+86531889978626
