Specifications
Brand Name :
Genron
Model Number :
GV16002
Certification :
CCC , CQC , CNAS
Place of Origin :
Shangdong , China
MOQ :
1 Unit
Price :
$12,600.00 - $16,000.00 / unit
Payment Terms :
L/C, T/T
Supply Ability :
80 Units per Month
Delivery Time :
5-20 Work Days
Packaging Details :
Nude Packing
Dimension :
13000mm*2490mm*2860mm (Outerside) 12800*2300*1800mm
Axle :
13 T/16T, FUWA /BPW /Huajing Brand
Rim :
9.00-22.5
Tire :
12.00R22.5/ 315 80R22.5
Suspension :
Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand )
Spring leaf :
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
Kin pin :
JOST brand 2.0 or 3.5inch bolts type or Welding type
Loading Capacity :
60T
Brake chamber :
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand);One piece of 45L air tankers .
Description

Product Description

1. We can customize it according to your requirements.

2. The Logo can be customized.

3. If you only buy spare parts, Our engineer can go to your factory to teaching your empolyee how to assembly the products !

Fence Wall Air Suspension Quadaxles 60T Cargo Semi Trailer

4 Axles 60T Storage Semi Trailer With Front Air Suspension Export To Kenya, Tanzania , etc

Tare Weight About 8.3T
Dimension

13000mm*2490mm*2860mm (Outerside)

12800*2300*1800mm

Loading Capacity (T) ≤ 60 T
Axle 13 T/16T, FUWA /BPW /Huajing Brand
Rim 9.00-22.5
Tire 12.00R22.5/ 315 80R22.5
Suspension

Mechanical suspension (Germany Type or America Type)

Or Air suspension (China brand or BPW brand )

Spring leaf 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
King pin JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg JOST brand D200T or China brand 28Tons (Double speed)
Main beam

Height: 500mm, upper plate is 14mm, middle plate is 8mm,

Down plate is 16mm; Material is Q345B Steel.

Side beam 16mm or 18mm channel steel (Material is Q235steel).
Side Wall

600mm-1800mm ,the open door can be choose freely.

With 300-500mm height square tube or round tube

Bottom Platform 3mm-5mm thickness (According to the capacity which you loading for )
Brake chamber WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand);One piece of 45L air tankers .
ABS Optional
Twist Locks Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional
Valve WABCO valve
Light LED light
Voltage 24V
Receptacle 7 ways (7 wire harness)
Tool box One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms: By bulk cargo carrier, RORO or 40HQ container.

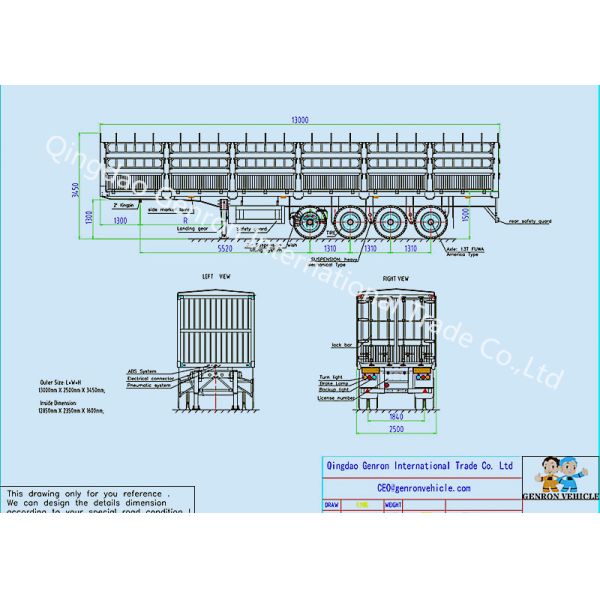

Details of 4 Axles 60T Storage Semi Trailer With Front Air Suspension

Fence Wall Air Suspension Quadaxles 60T Cargo Semi Trailer

Fence Wall Air Suspension Quadaxles 60T Cargo Semi Trailer

Advantages of 4 Axles 60T Storage Semi Trailer With Front Air Suspension

1. The semi-trailer with barrier structure design is adopted at the loading position. It is mainly used for the transportation of agricultural and sideline products, animals, coal, steel coils, or other light goods.

2. The space frame structure, which is assembled and welded by longitudinal beam and integral through beam, has strong bearing capacity and no permanent deformation.

3. Series of rack type semi-trailer frame are beam through structure, longitudinal beam adopts flat type or goose neck type.

4. Adopt new American or German mechanical suspension system with high strength and strong impact resistance

5. According to the different media of the goods carried, design the corresponding vehicle model to meet the customer's individualization

E - coating

Fence Wall Air Suspension Quadaxles 60T Cargo Semi Trailer

Why Choose Us ?

1.12months for main parts (engine, axle, body and beam, etc)

2. Technical Support by phone Whatsapp or email around the clock

3. Lifelong Parts Supports

4.The good faith management is our philosophy, and welcome visits our company at any time

5.According to your order, we provide suitable trailer.

6.We also provide rational packing and shipping program , let shipment save money and security. Just trust us, you will get a satisfactory answer.

Other Products

Fence Wall Air Suspension Quadaxles 60T Cargo Semi Trailer

Our Service

1.Before Sale

Quotation:

We will gave you the matched product details configuration and drawing according to your market ,show you the best-selling model pictures and reasonable best price.

Reception & Accompany

After you accepted the offer price we have made to your company have the pre-interview ,you can come to visit our office and then go to visit factory ,we will arrange your everything in China. Or if you not sure which model of trailer or other product you should chose ,we can arrange our professional technical checking your market together with you.

2.After Sale Service

We have our own technical team, we will gave you repaired method within 12 hours through calling or email. We can go to visit you gave you technical guide after or before you buy ‘Genron’ products.

We will post to you all spare parts for free within guarantee period after the spare parts were out of work which are under normal operation.

We can go to your place to teach your team how to operate the trailer or our machines .
