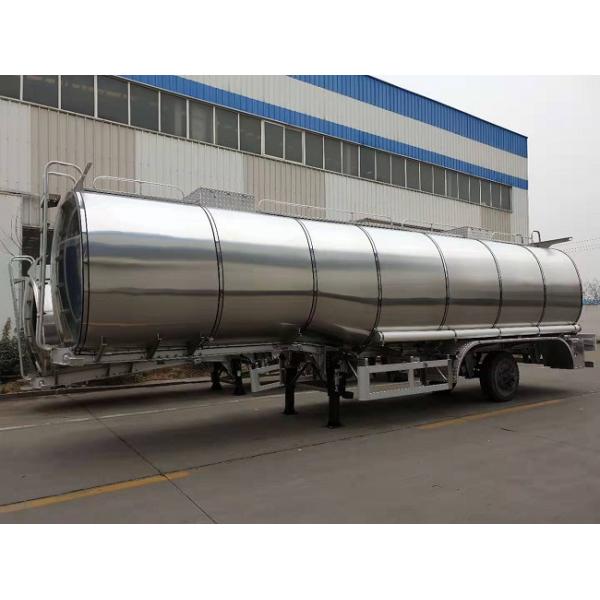

Transportation Tri Axle 40T 35ft Semi Tanker Trailer For Fuel Petrol
Transportation Tri Axle 40T 35ft Semi Tanker Trailer For Fuel Petrol
Transportation Tri Axle 40T 35ft Semi Tanker Trailer For Fuel Petrol
Transportation Tri Axle 40T 35ft Semi Tanker Trailer For Fuel Petrol
Specifications
Brand Name :
Genron
Model Number :
GV18002
Certification :
CCC,CQC,CNAS
Place of Origin :
China
MOQ :
1 UNIT
Price :
USD21000-23000
Payment Terms :
L/C, T/T
Supply Ability :
80 Pieces per morth
Delivery Time :
5-20 work days
Packaging Details :
naked packing
Product name :
40-60 Tons Aluminum Oil Semi Tanker Trailer Delivery for Fuel Petrol Water Palm oil
Usage :
Delivery for Fuel Petrol Water Palm oil
feature :
3 Axles
Suspension :
Mechanical Suspension
Landing Gear :
Standard 28Ton
Axle :
13 Ton Fuwa Brand
Tire :
12R22.5
Loading capacity :
40-60T
Color :
Customers Optional
Description

Aluminum Oil Semi Tanker Trailer Description:

Advantages of 3 Axles Oil Tanker Semi Trailer:

1. The oil semi-trailer is mainly used for the transportation of large-scale oil and liquid asphalt, with a tonnage of about 40-60 cubic meters.

2. Q235 carbon steel plate, stainless steel or aluminum material are mostly used for tank body material of oil semi-trailer.

3. The pump oil system can be installed, and the force is taken from the gearbox side through the power take-off device, which can be self-priming and self-discharging; it has two oil extraction pipes, and is equipped with quick assembly joint, with a suction distance of 6m. Two fire extinguishers and special tools.

Aluminum Oil Semi Tanker Trailer Drawing:

Transportation Tri Axle 40T 35ft Semi Tanker Trailer For Fuel Petrol

Main Configeration:

Tank Body
Shape Cylindrical
Dimension 11000m*2500mm*3880mm
Tare weight About 7000Kg
Total Volume(m3) 46m³
Tanker Body Material 6mm aluminium alloy 5083
End Plate 6mm aluminium alloy 5083
Manhole Cover stainless steel manhole ,diameter500mm,two pieces (jia long brand),with two Oil and gas recovery system
Bottom Valve Aluminum API Pneumatic Bottom Valve, two pieces(jia long brand)
Discharging Valve aluminium alloy ball valve 4 inch ,2 pieces
Compartments 2 compartments
Discharging Pipe 4”Rubber tube ,two pieces , six meters length
Cat Walk As requirement
Chassis
Main Beams aluminium alloy 5083
Axle 3 axles BPW
Landing Gear JOST D200T
King Pin 2.00inch bolts type kin pin
Suspension Air suspension (America system ) front lifting system BPW brand
Leaf Spring Without
Pneumatic Braking System Vabco emergency valve,four double and two single chamber, one pieces air tanker .
Rim 13.00-22.5 7 pieces
Tire 425/60R22.5 Chaoyang Brand , 7 pieces
ABS With
Fire extinguisher Two pieces 4 KG ,
Spare Tire Carrier 2 pieces aluminum alloy 5083
Side,rear safty guard All aluminum alloy
Painting Without Painting
Accessories One standard tool box,aluminium alloy 5083

Aluminum Oil Semi Tanker Trailer Spare Parts Show:

Transportation Tri Axle 40T 35ft Semi Tanker Trailer For Fuel Petrol

Transportation Tri Axle 40T 35ft Semi Tanker Trailer For Fuel Petrol

Aluminum Oil Semi Tanker Trailer Factory Show:

Transportation Tri Axle 40T 35ft Semi Tanker Trailer For Fuel Petrol

Transportation Tri Axle 40T 35ft Semi Tanker Trailer For Fuel Petrol
