Corrosion Resistant 13000mm 50m3 Diesel Aluminium Tanker Trailer
Corrosion Resistant 13000mm 50m3 Diesel Aluminium Tanker Trailer
Corrosion Resistant 13000mm 50m3 Diesel Aluminium Tanker Trailer
Corrosion Resistant 13000mm 50m3 Diesel Aluminium Tanker Trailer
Specifications
Brand Name :
Genron
Model Number :
GV18001
Certification :
CCC,CQC,CNAS
Place of Origin :
China
MOQ :
1 UNIT
Price :
USD21000-23000
Payment Terms :
T/T, L/C
Supply Ability :
80 Pieces per morth
Delivery Time :
5-20 work days
Packaging Details :
naked packing
Product name :
3 Axles Aluminum Oil Tanker Semi Trailer Delivery for Diesel and Petrolum
Usage :
Delivery for Diesel and Petrolum,etc
feature :
3 axles
Suspension :
Mechanical Suspension
Landing Gear :
Standard 28Ton
Axle :
13 Ton Fuwa Brand
Tire :
12R22.5
King pin :
2"(50mm)or3.5"(90mm) JOST
Loading capacity :
40-60T
Color :
Customers Optional
Description

Aluminum Oil Semi Tanker Trailer Description:

Advantages of aluminium oil semi tanker trailer:

1. Lightweight trailer body, more economical and practical

Aluminium oil tanker is lighter than carbon steel tanker, which reduces fuel consumption and tire wear during transportation, thus reducing daily operating and maintenance costs.

2. Strong corrosion resistance and long service life

Aluminum has good compatibility with most media and food, wide transportation range, low maintenance cost, not easy to rust, easy to clean.

3. Good ductility to improve safety and eliminate hidden dangers

The tank body is made of aluminum with good elongation and high strength.It's not easy to explode.

4. Recyclability and high recovery rate

Aluminum has a very high recovery value, which can effectively save the operation cost of enterprises.

Aluminum Oil Semi Tanker Trailer Drawing:

Corrosion Resistant 13000mm 50m3 Diesel Aluminium Tanker Trailer

Main Configeration:

Tank Body
Shape Cylindrical
Dimension 13000m*2500mm*3850mm
Tare weight 7700Kg
Total Volume(m3) 50 m³
Tanker Body Material 6mm aluminium alloy 5083
End Plate 6mm aluminium alloy 5083
Manhole Cover

stainless steel manhole ,diameter 500mm,two pieces

(jia long brand)
Bottom Valve

Aluminum API Pneumatic Bottom Valve, one pieces

(jia long brand)
Discharging Valve aluminium alloy ball valve 4 inch ,2 pieces
Compartments 1 pieces
Discharging Pipe 4”Rubber tube ,two pieces , six meters length
Cat Walk As requirement
Chassis
Main Beams High strength plate T700
Axle 3 axles FUWA
Landing Gear JOST D200T
King Pin 3.5 inch bolts type kin pin
Suspension Mechanical suspension (America system )
Leaf Spring 90mm(width)/13mm(thickness)/10pieces
Pneumatic Braking System

Vabco emergency valve,four double and two single

chamber, one pieces air tanker .
Rim 9.00-22.5 13 pieces
Tire 12.00R22.5 Triangle Brand
ABS With
Fire extinguisher Two pieces 4 KG ,
Painting Main Beam ,suspension 2 coats of final paint ;tanker body no painting .
Accessories One standard tool box ,steel

Aluminum Oil Semi Tanker Trailer Detail:

Corrosion Resistant 13000mm 50m3 Diesel Aluminium Tanker Trailer

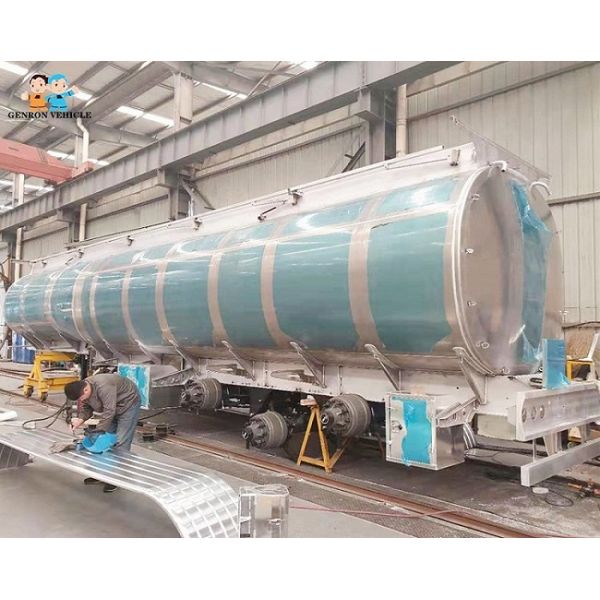

Aluminum Oil Semi Tanker Trailer Factory Show:

Corrosion Resistant 13000mm 50m3 Diesel Aluminium Tanker Trailer

Corrosion Resistant 13000mm 50m3 Diesel Aluminium Tanker Trailer
