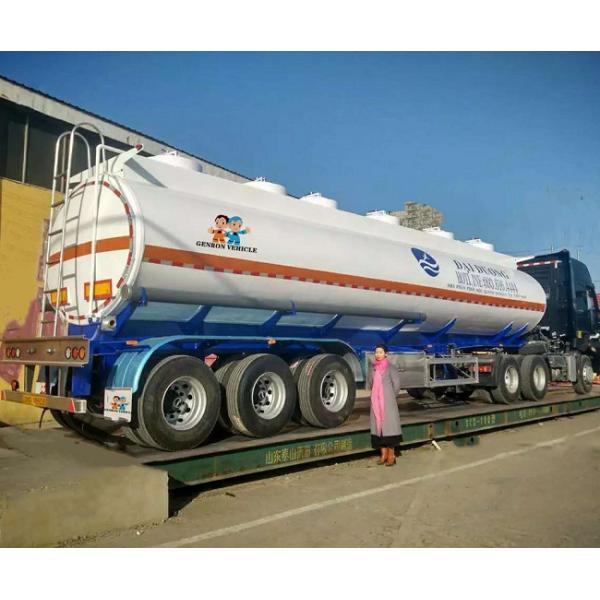

Triaxles Tanker Truck Trailer
Triaxles Tanker Truck Trailer
Triaxles Tanker Truck Trailer
Triaxles Tanker Truck Trailer
Triaxles Tanker Truck Trailer
Triaxles Tanker Truck Trailer
Triaxles Tanker Truck Trailer
Triaxles Tanker Truck Trailer
Specifications
Brand Name :
Genron
Model Number :
GV04001
Certification :
CCC,CQC,CNAS
Place of Origin :
China
MOQ :
1 UNIT
Price :
USD22000-USD28000
Payment Terms :
T/T, L/C
Delivery Time :
5-20 work days
Packaging Details :
naked packing and polish with wax
Supply Ability :
50 units per morth
usage :
Delivery for Fuel and Oil
Suspension :
Mechanical Suspension or Air Suspension
Landing Gear :
Standard 28Ton
Axle :
13 Ton Fuwa Brand
Tire :
12R22.5
King pin :
2"(50mm)or3.5"(90mm) JOST
Color :
Customers Optional
Description

Can you choose the right Fuel Tanker truck Trailer or Fuel tanker semi trailer ?

1. Name : We called the fuel tanker trailer different names according to the material which it loading for .Oil tanker semi trailer , Diesel Tanker Semi Trailer ,Petro Tanker Semi-trailer,Crude Oil Carrier ,Coal Tar Carrier, Lubricating Oil Carrier, Corn Oil Trailer ,Maize Oil trailer ,Soy Bean Oil semi-trailer ,Peanut Oil tanker semi trailer etc, food oil carrier /trailer truck. And Bitumen/ Asphalt Tanker Semi-trailer .

2. How much loading capacity of the oil tanker truck trailer?

The Oil/fuel tanker truck loading capacity is from 5 m3 to 30m3 , The oil /Fuel Tanker semi trailer loading capacity is from 30m3 to 60m3 , the axles can be 2 axles or 3 axles , 4 axles; some countries use liters calculate the trailer’s capacity , such as 40000L oil tanker semi trailer with three axles ; About the fuel , we can see the density is about 0.83 ,the mean is 30m3 by 0.83 is 24.9KG , one cubic meter equal 1.1 L .

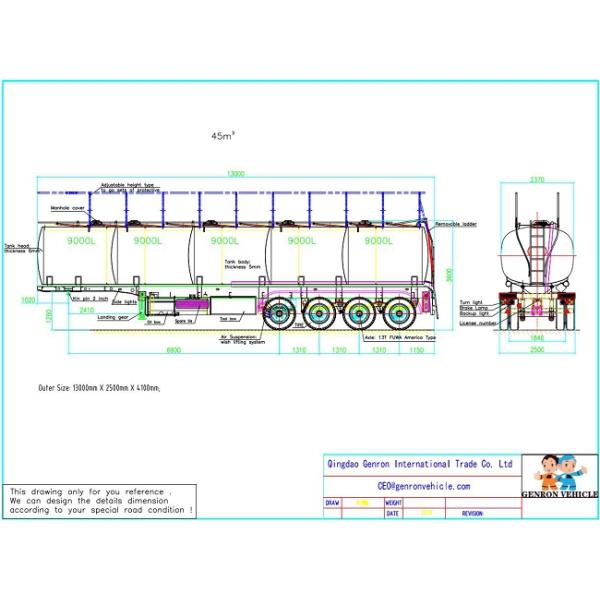

Liquid Tanker Trailer Size:


Triaxles Tanker Truck Trailer

Liquid Tanker Trailer​ Information:

Main Dimensions
Tank Body
Shape Optional ( Round or Square)
Dimension 12000mm*2490mm*3990mm ( Exact size depends on the final design)
Tare weight About 8000KGS-12800KGS
Total Volume(m3) 25m³-60 m³
Tanker Body Material 5mm or 6mm/ Q235 carbon steel /aluminum /stainless steel
End Plate 5mm or 6mm /Q235 carbon steel /aluminum /stainless steel
Manhole Cover Carbon steel or Aluminum alloy API manhole cover, ∮500mm
Bottom Valve Aluminum API Pneumatic Bottom Valve
Discharging Valve Diameter is 3 or 4 inch
Compartments Optional
Discharging Pipe 4” rubber hose, 2 pcs, 6m/each
Cat Walk With (Common model or special design)
Chassis
Main Beams

Welding design or Special design I beam, connected by bolts and nuts
Q345 carbon steel material
Axle 2 or 3 axles, BPW/FUWA/GV brand
Landing Gear JOST (D200T)or CHINA BRAND 28T
King Pin JOST 2.00 or 3.5 inch bolt-in king pin
Suspension Mechanical suspension/Germany or America type /air suspension
Leaf Spring 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 /without
Pneumatic Braking System 6 relay valves; Spring brake chamber; one piece of 45L air tanks.
Rim 9.00-22.5/8.00-20/8.5-20 China Brand
Tire /12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand is optional
ABS Optional
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories One standard tool box
Shipping Terms By Bulk Cargo ,RORO or 40HQ Containers

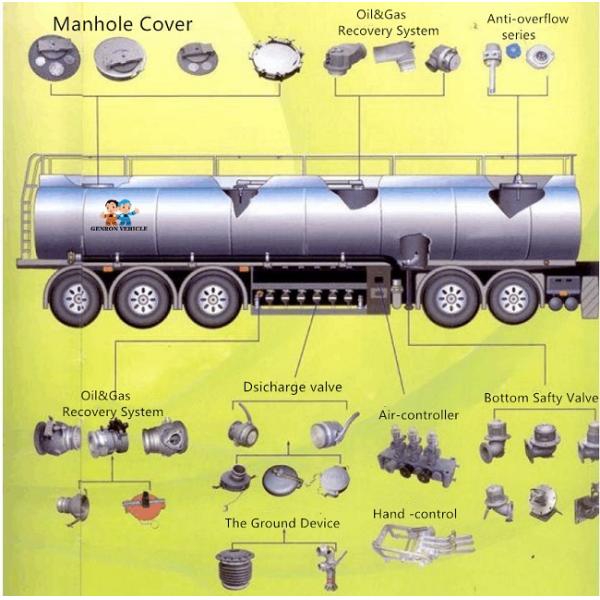

Spare Parts Show:

Triaxles Tanker Truck Trailer

Triaxles Tanker Truck Trailer

Triaxles Tanker Truck Trailer

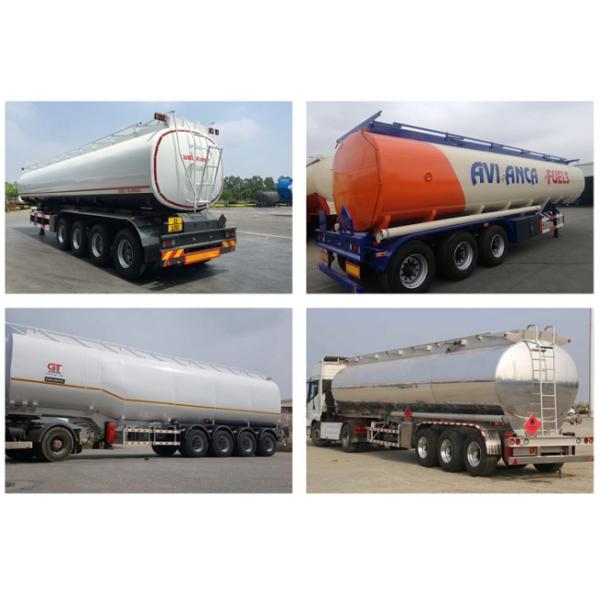

Other types:

Triaxles Tanker Truck Trailer

Triaxles Tanker Truck Trailer

Triaxles Tanker Truck Trailer

Triaxles Tanker Truck Trailer
