Specifications
Brand Name :
GENRON VEHICLE
Model Number :
GV01001
Certification :
CCC,CQC,CNAS
Place of Origin :
Shandong province,China
MOQ :
1 units
Price :
USD39900-41800per unit
Payment Terms :
L/C, T/T
Supply Ability :
80 units per minth
Delivery Time :
5-8 work days
Packaging Details :
It can be transported by container or bulk cargo ship for container trailer
Product name :

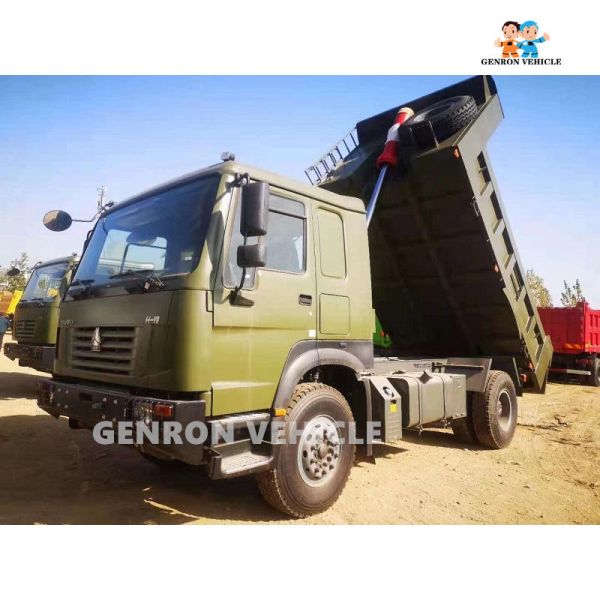

Sino truck 4*2 tipper truck with 10T big capccity Howo dumper truck
Keyword :
Sino light truck
Application :
Used for transport light bulk cargo
Size :
8545*2500*3450 mm
Engine :
Yuchai
Emission standard :
Euro 3
Fuel type :
Diesel
Transmission :
Manual Transmission
Horse power :
131Hp
Driving Type :
LHD
Description

Sino truck 4*2 tipper truck with 10T big capccity Howo dumper truck for transport sands

Description of the Howo 4*2 light truck :

Sino Truck 4*2 Tipper Truck 10T Howo Dumper Truck For Transport Sands

Chassis Model
ZZ3257N3841W
Driving Type
LHD (RHD is optional)
Cabin
HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with
heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with
transverse stabilizer, with four piont support floating suspension+shock absorber.
Engine
Make: SINOTRUK
Diesel 4-stroke direct injection diesel engine
Engine model: WD615.69, Euro 2, 336 HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 9.726 L
Transmission
HW19710, 10F & 2R, with PTO
Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering
ZF power steering, modol ZF8118, hydraulic steering with power assitance
Front Axle
HF9
Steering with doubleT-cross section beam
Rear Axle
HC16, 2x16000 KGS
Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.
Ratio:5.73
Propeller Shaft
Double universal joint propeller shaft with gear-shaped coupling flange
Chassis
Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer
Brake
Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Electrics
Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tyres
12.00R20, radial tyres with one spare tyre
Fuel Tank
300L
Cargo Body
5800*2300*1500 mm, 20 CBM, Floor 8mm Side 6mm
Overall Dimension
8800*2550*3450mm


More photo show and details show:

Sino Truck 4*2 Tipper Truck 10T Howo Dumper Truck For Transport Sands

Sino Truck 4*2 Tipper Truck 10T Howo Dumper Truck For Transport Sands

The HOWO Light Truck is SINORUK business department designed according to its mature technology, combined with working conditions, absorbing international advanced technology and developed a series of high-end light truck. The first appearance of the total of 12 different configurations of the high-end light truck, can be applied to various working environment.

A. Engine:
The power source of the car. Its function is to burn fuel to generate power, and then drive the car through the drive train to drive the wheels.
B. Chassis:

It will be introduced in terms of transmission system, driving system, steering system and braking system.
Driveline: The power of the engine is transmitted to the drive wheels, which mainly include clutch, gearbox, drive shaft, and drive axle.
Driving system: connect the various assemblies and parts of the car into a whole and support the whole car to ensure the normal driving of the car. It mainly includes the frame, front axle, wheels, and suspension.
Steering system: to ensure that the car can drive in the direction selected by the driver during the driving process, mainly including the steering mechanism, steering gear, and steering transmission device.
Braking system: to slow down and stop the car and ensure the reliable parking of the car. Mainly include brake operating mechanism, brake, transmission device.
C. Body:

The place where the driver works and loads goods. Including the cab and carriage.

Our advantage :

Sino Truck 4*2 Tipper Truck 10T Howo Dumper Truck For Transport Sands

1. Ultra-high reliability and ultra-long fault interval mileage to ensure that your car can travel unimpeded across the country
2. Ultra-low fuel consumption, ultra-long engine oil change mileage, and ultra-conventional warranty period help you stay invincible in the market competition
3. Super safety that meets the strictest Swedish regulations in the world, reducing the worries for you and your employees
4. Adopt advanced technology to reduce self-weight and effectively increase load without overloading
5. Beautiful appearance, comfortable driving, face externally, enjoyment internally


Shipping and package:

Sino Truck 4*2 Tipper Truck 10T Howo Dumper Truck For Transport Sands

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Contact us :

Sino Truck 4*2 Tipper Truck 10T Howo Dumper Truck For Transport Sands

Qingdao Genron Internatinal Trade Co.Ltd. ,the main business is to exporting all kinds of semi trailers,trucks made in China,trailer parts,and welding machinery,trailer production line.We have our own factory which producted semi trailers for more than 18 years.Our experience can make you a better choice, and our grasp of the market can make you better pay back.After Sales Service is To build Genron Maintenance department in every place where Genron products arrived(we are looking for local cooperate partner also).We are focusing on that Genron products can got repair within 24 hours in everywhere of the world.We did it in china market ,We are doing step by step out of china market . We have flexible cooperate items.Firstly, you can be Genron Sales Agent:We have our own brand and logo,we have more than five very steady producer partners of each product which we supply to you from China,after you to be Genron agent in your country you will have very steady supplier of China,no need worried one factory will close down.Or you can choose Genron As your China Purchasing Agent.Your can buy from the China factory directly,we can be your exporting agent in China.
