9.5M Bogie Suspension Dump Semi Trailers End Dump Semi Trailer
9.5M Bogie Suspension Dump Semi Trailers End Dump Semi Trailer
9.5M Bogie Suspension Dump Semi Trailers End Dump Semi Trailer
9.5M Bogie Suspension Dump Semi Trailers End Dump Semi Trailer
Specifications
Brand Name :
Genron
Model Number :
GV08087
Certification :
CCC CE
Place of Origin :
China
MOQ :
1 unit
Price :
USD 15000 - 25000 per unit
Payment Terms :
T/T
Supply Ability :
80 units per month
Delivery Time :
20-30 work days
Packaging Details :
By bulk cargo ship
Axle :
13T FUWA Axle
Valve :
WABCO Brand Emergency Brake Valve
Usage :
Load and Unload Sands and Stones
Suspension :
Bogie Suspension
Key Word :
Dump Semi Trailers
Tire :
12.00R22.5
Rim :
9.00-22.5
Loading Capacity :
More Than 50T
Color :
Optional
Name :
End Dump Semi Trailer
Description

Advantages of End Dump Semi Trailer

1. The frame and the longitudinal beam of the carriage are welded with high-quality manganese plate,

and there are dustpan and rectangular box. It has high strength, strong lifting force, good rigidity and

toughness, strong bearing capacity and no permanent deformation.


2. Hyva hydraulic jacking cylinder is selected, which has stable lifting performance. The longitudinal beam

is made of automatic submerged arc welding. The axle and steel spring are accurately assembled by assembly machine.


3. It can be designed separately according to the different needs of customers, or tell us that the medium

of the goods you carry is different. We will design the corresponding model for you to meet the personalized needs of customers.

9.5M Bogie Suspension Dump Semi Trailers End Dump Semi Trailer

9.5M Bogie Suspension Dump Semi Trailers End Dump Semi Trailer

9.5M Bogie Suspension Dump Semi Trailers End Dump Semi Trailer

9.5M Bogie Suspension Dump Semi Trailers End Dump Semi Trailer

Dimension 9500*2600*3400mm
Tare weight About 8500KGS
Loading Capacity(T) 54T
Side wall thickness(mm) 4mm,high strength steel
Bottom plate thickness(mm) 5mm,high strength steel
Lifting system 191 Hydraulic Lifting Cylinder
Chassis
Main Beams Height:500mm, upper plate is 14mm,middle is 8mm,down plate is 16mm,material is Q345B steel
Axle 16 tons per axle, 2pcs
Landing Gear CHINA BRAND 28T
King Pin JOST 2.00 or 3.5 inch bolt-in king pin
Suspension 32T bogie suspension
Leaf Spring 90(W)mm*13(Thickness)mm*17 Layer
Pneumatic Braking System WABCO brand valve; Spring brake chamber; one piece of 45L air tanks.
Rim 9.00-20 9pcs
Tire 12.00R20 9pcs
ABS Without
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories One standard tool box
Shipping Terms By bulk cargo ship.

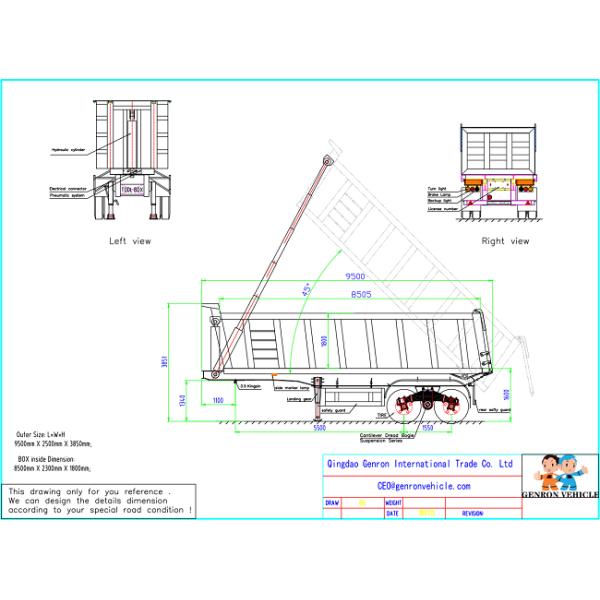

Drawing of End Dump Semi Trailer:

9.5M Bogie Suspension Dump Semi Trailers End Dump Semi Trailer

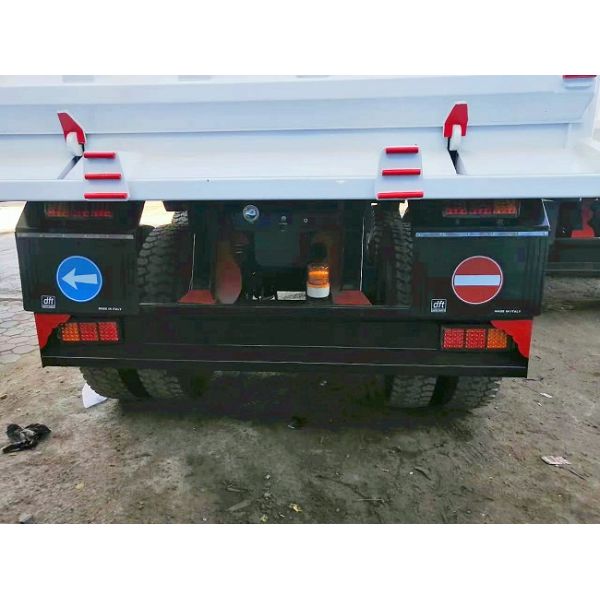

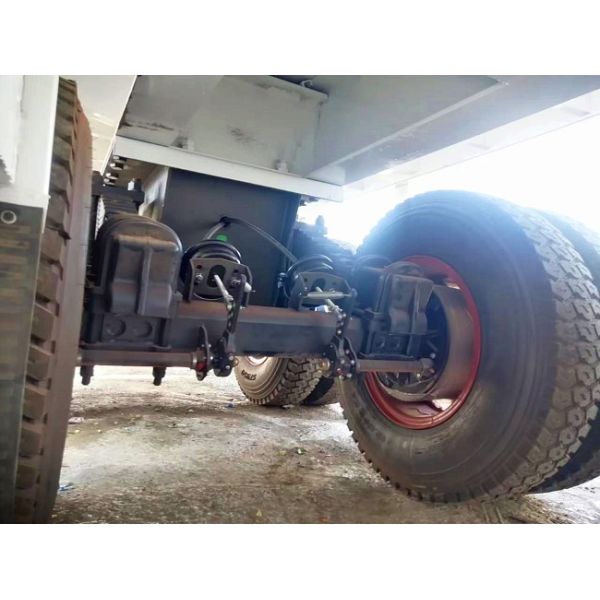

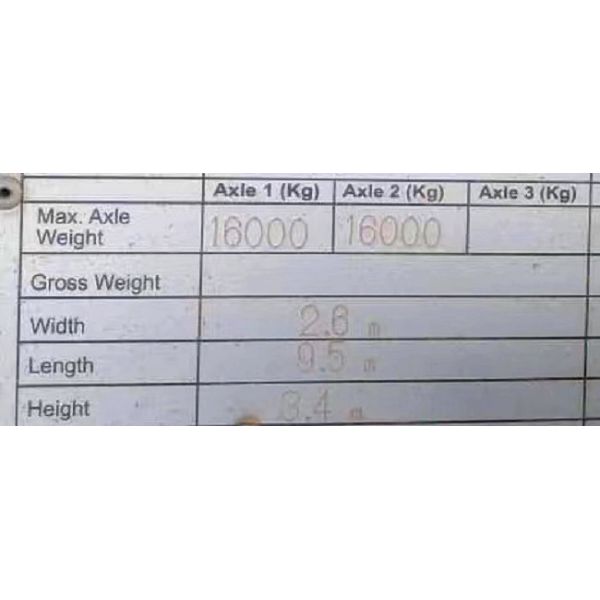

End Dump Semi Trailer Details:

9.5M Bogie Suspension Dump Semi Trailers End Dump Semi Trailer

9.5M Bogie Suspension Dump Semi Trailers End Dump Semi Trailer

9.5M Bogie Suspension Dump Semi Trailers End Dump Semi Trailer
