3 Axles 12.00R22.5 Semi Trailer Dump Truck Mechanical Suspension
3 Axles 12.00R22.5 Semi Trailer Dump Truck Mechanical Suspension
3 Axles 12.00R22.5 Semi Trailer Dump Truck Mechanical Suspension
3 Axles 12.00R22.5 Semi Trailer Dump Truck Mechanical Suspension
3 Axles 12.00R22.5 Semi Trailer Dump Truck Mechanical Suspension
3 Axles 12.00R22.5 Semi Trailer Dump Truck Mechanical Suspension
3 Axles 12.00R22.5 Semi Trailer Dump Truck Mechanical Suspension
3 Axles 12.00R22.5 Semi Trailer Dump Truck Mechanical Suspension
Specifications
Brand Name :
Genron
Model Number :
GV08086
Certification :
CCC CE
Place of Origin :
China
MOQ :
1 unit
Price :
USD 15000 - 25000 per unit
Payment Terms :
T/T
Supply Ability :
80 units per month
Delivery Time :
20-30 work days
Packaging Details :
By bulk cargo ship
Axle :
13T FUWA Axle
Suspension :
Mechanical Suspension
Valve :
WABCO Brand Emergency Brake Valve
Usage :
Load and Unload Sands and Stones
Name :
Semi Trailer Dump Truck
Key Word :
Dump Semi Trailers
Tire :
12.00R22.5
Rim :
9.00-22.5
Loading Capacity :
More Than 50T
Color :
Optional
Description

Advantages of Semi Trailer Dump Truck

1. It is suitable for the transportation of bulk bulk bulk goods such as coal, ore and construction materials.

Dump semi-trailer can be divided into two categories according to their uses: one is heavy-duty and super

heavy-duty dump trucks for off-road transportation, mainly responsible for large-scale mining, engineering

and other transportation tasks, usually used together with excavators. The other type of light and

medium-sized ordinary dump truck for highway transportation mainly undertakes the transportation of sand,

soil, coal and other loose goods, which is usually used together with loaders.

2. The carriage adopts rollover and backward dump mode, which can effectively improve the transportation

efficiency of bulk goods transported by the loader.

3 Axles 12.00R22.5 Semi Trailer Dump Truck Mechanical Suspension

3 Axles 12.00R22.5 Semi Trailer Dump Truck Mechanical Suspension

3 Axles 12.00R22.5 Semi Trailer Dump Truck Mechanical Suspension

3 Axles 12.00R22.5 Semi Trailer Dump Truck Mechanical Suspension

3 Axles 12.00R22.5 Semi Trailer Dump Truck Mechanical Suspension

Dimension 8500*2500*3950mm, work place height:1800mm
Tare weight About 15600KGS
Loading Capacity(T) 30T
Side wall thickness(mm) 3mm Q235 steel
Bottom plate thickness(mm) 4mm,Q235 steel
Lifting system 180 Hydraulic Lifting Cylinder
Chassis
Main Beams Height:480mm, upper plate is 14mm,middle is 8mm(double+three plate),down plate is 12mm,material is Q345B steel
Axle 3 axles, FUWA brand 13 tons per axle
Landing Gear CHINA BRAND 28T
King Pin JOST 2.00 or 3.5 inch bolt-in king pin
Suspension Heavy duty mechanical suspension
Leaf Spring 90(W)mm*13(Thickness)mm*10 Layer
Pneumatic Braking System WABCO brand valve; Spring brake chamber; one piece of 45L air tanks.
Rim 9.00-22.5 12pcs
Tire 12.00R22.5 12pcs
ABS Optional
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories One standard tool box
Shipping Terms By bulk cargo ship.

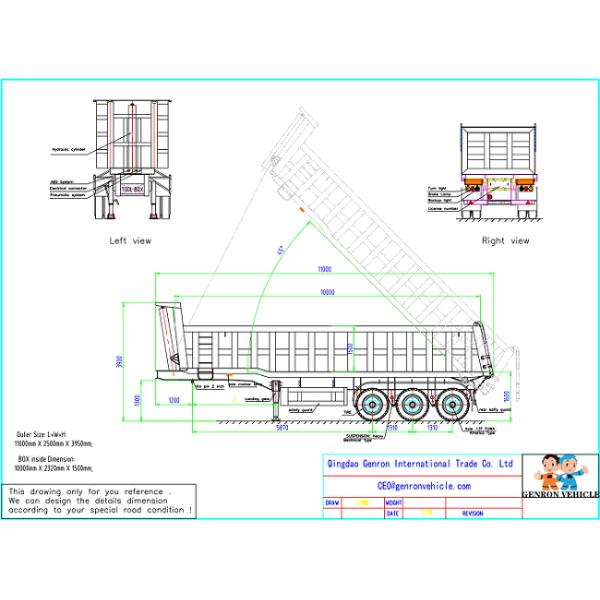

Drawing of Semi Trailer Dump Truck:

3 Axles 12.00R22.5 Semi Trailer Dump Truck Mechanical Suspension

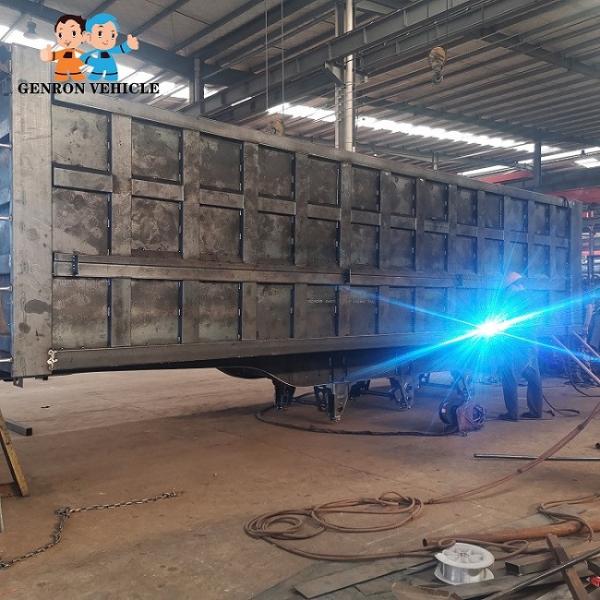

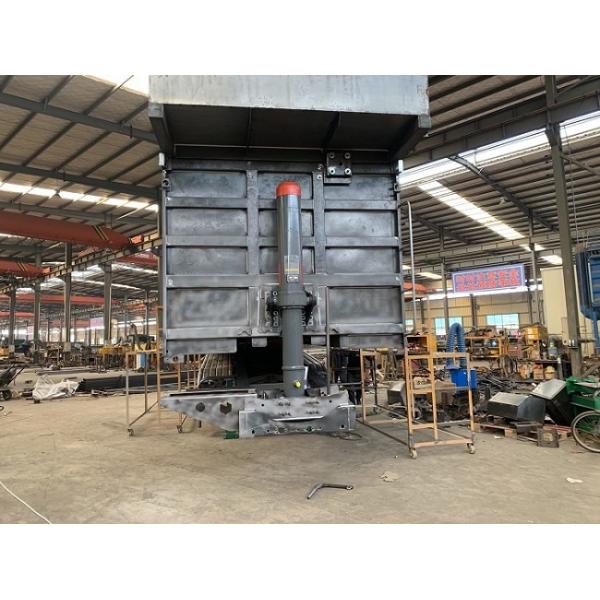

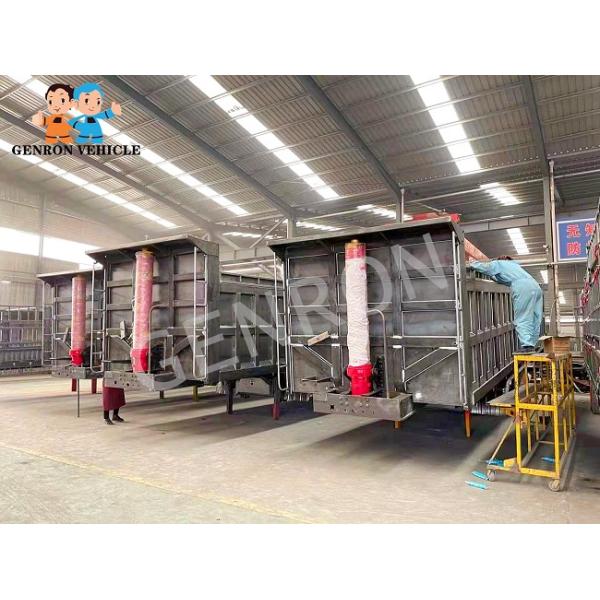

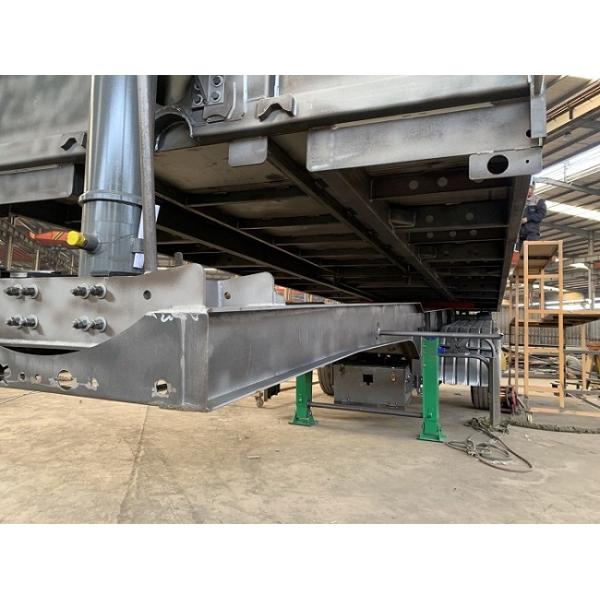

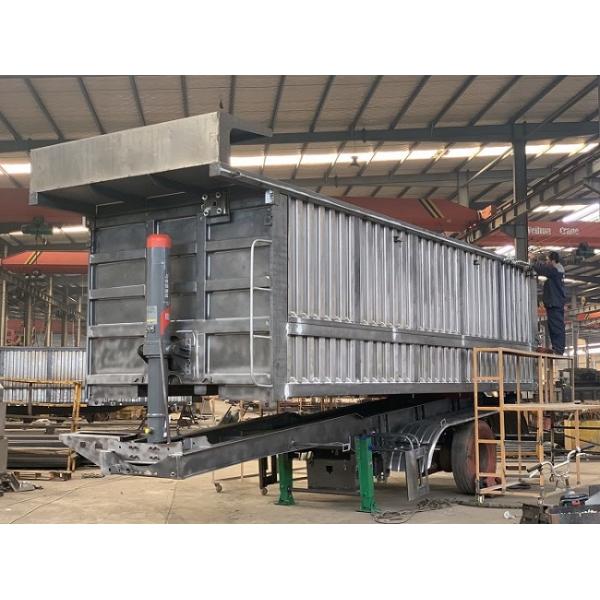

Semi Trailer Dump Truck Workshop:

3 Axles 12.00R22.5 Semi Trailer Dump Truck Mechanical Suspension

3 Axles 12.00R22.5 Semi Trailer Dump Truck Mechanical Suspension

3 Axles 12.00R22.5 Semi Trailer Dump Truck Mechanical Suspension

3 Axles 12.00R22.5 Semi Trailer Dump Truck Mechanical Suspension

3 Axles 12.00R22.5 Semi Trailer Dump Truck Mechanical Suspension
