Specifications
Brand Name :
Genron Brand
Model Number :
GV03028
Certification :
CCC,CQC
Place of Origin :
Shandong, China
MOQ :
1 unit
Price :
USD11000 /UNIT
Payment Terms :
L/C, T/T
Supply Ability :
100 per month
Delivery Time :
15 days
Packaging Details :
nude packing
Product name :

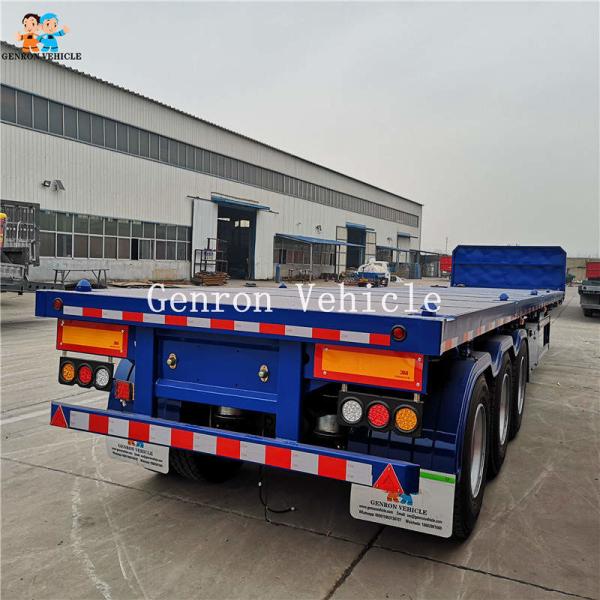

Flatbed semi trailer with 3 axles air suspension exported
Tire :
12.00R22.5 Triangle brand ,12pcs
Suspension :
Air suspension ,the front one with lifting system
Dimension :
1.25m * 2.5m * 1.5m
Landing gear :
China brand 28T double speed
Axle :
3 axles ,13T FUWA brand
Twist Locks :
12 pcs
Loading capacity :
50 tons
Tare weight :
7 tons
Port :
Tianjin or Qingdao port
Description

Flatbed semi trailer with 3 axles air suspension exported to Ghana ,Tanzania, Chad .

Product Description

Flatbed semi trailer with 3 axles air suspension exported to Ghana ,Tanzania, Chad .

1. It is specially used for the transportation of various containers, It can carry a 40 foot container,

two 20 foot containers or a 20 foot container at the same time. Customers can change the number of locks

according to their own needs. The beam is submerged arc welded, and the whole vehicle is shot blasted.

The bottom plate is a 3mm thick checkered plate with anti-skid design. After 20 years of use experience,

all accessories are selected from suppliers, which can be used for long-term anti-skid It has enough strength

for repeated use.

2. This kind of flat semi-trailer can be equipped with detachable railings, columns, etc. according to customers' requirements,

It can be loaded and unloaded quickly, and can be easily transferred from one transport to another.

4. You can design it separately according to the different needs of customers, or tell us that the medium of

the goods you carry is different. We will design the corresponding model for you to meet the personalized

needs of customers.

40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension

Product Conguration

Dimension 1.25 * 2.5 * 1.550m
Front Wall 1.2m
Tare weight About 7 ton
Loading capacity ≤50 ton
Main Beams

Welding beam Design, Q345 carbon steel ,

Height: 500mm, upper plate is 14 mm

Middle plate is 8 mm

Down plate is 16 mm

Side beam 16mm mm channel steel (Material is Q235steel).
Bottom Platform 3mm diamond steel plate
Axle 13T GV brand axles ,3 pcs
Suspension air suspension
Landing Gear China brand 28T double speed
King Pin JOST2.00 inch bolt-in king pin
Pneumatic Braking System WABCO RE 6 relay valve;
Brake Chamber T30/30 air brake chamber six pcs , china brand
Rim 9.00-22.5 Steel China Brand 12 pcs
Tire 12.00R22.5 China brand 12 pcs
Twist Locks 12 pcs lifting type
ABS Optional
Light LED light (special for export market)
Voltage 24V
Receptacle 7 ways (7 wire harness)
Tool box

One standard tool box

Equipped with 2 units spare tire carrier

Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping terms By bulk cargo . Wax before shipping

The Drawing Of The Flatbed semi trailer with 3 axles air suspension

40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension

The Details Of The Flatbed semi trailer with 3 axles air suspension

40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension

40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension

40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension

40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension

40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension

40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension

The Production Line

40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension

40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension

40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension

40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension

40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension

Our Customers

40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension

40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension

Delivery And Shipping

40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension

40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension40 Foot Container 50t Flatbed Semi Trailer With 3 Axles Air Suspension

FAQ

Q:Which semi trailer brand is best in China?

A: Genron semi trailer is the top 3 in China market .We can give you a reasonable price according to the trailer quality .

The best expensive brand is CIMC ( this is government company ).Genron is private company ,

we can supply low price in high quality .

Q: Can you satisfy my special requirement?

A:Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!

Q: How can I get your trailer?

A: I will shipping trailer to your port after you pay money .

Q: What’s your payment terms?

A:1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery time

after production finished and inspection .

2.L/C at sight .

Q: Can I paint my logo on trailer?

A: Of course, you can send me your company logo, then we will design it.

Q:How many cities have been exported ?

A:Kenya, Tanzania, Zambia, Ghana, Kazakhstan, Uzbekistan, Malaysia ,and so on.
