12000mm 30 Ton Semi Tanker Trailer Truck Waste Garbage Rubbish Transfer Crawler Dump
12000mm 30 Ton Semi Tanker Trailer Truck Waste Garbage Rubbish Transfer Crawler Dump
12000mm 30 Ton Semi Tanker Trailer Truck Waste Garbage Rubbish Transfer Crawler Dump
12000mm 30 Ton Semi Tanker Trailer Truck Waste Garbage Rubbish Transfer Crawler Dump
12000mm 30 Ton Semi Tanker Trailer Truck Waste Garbage Rubbish Transfer Crawler Dump
12000mm 30 Ton Semi Tanker Trailer Truck Waste Garbage Rubbish Transfer Crawler Dump
Specifications
Brand Name :
Genron
Model Number :
GVC0005
Certification :
ISO CCC
Place of Origin :
China
MOQ :
1
Price :
USD10000-USD20000
Payment Terms :
T/T
Supply Ability :
500PCS per month
Delivery Time :
15 workdays
Packaging Details :
Bulk
Material :
Stainless steel
Size :
12000*2500*3800mm
Tare weight :
14 ton
Max payload :
30 tons
Axle :
13T Fuwa brand axles ,3 pcs (China no.1)
Main Beams :
Welding beam Design, AG700 high tension steel
Side wall :
0.8mm high tension corrugated sheet + 1.5mm-304 stainless steel, all welding lines are sealed with leak-proof glue, sprayed with anti-corrosion material.
Bottom\floor Platform :
Thickness:2mm stainless steel with anti-corrosion
Pump system :
Double motor pump system on both side of rear trailer.
Description

As a factory manufacturing semi trailer trucks for more than 20 years, Genron Vehicle manufactures more

than 7200 semi trailer trucks for one year including container semi trailers, low bed semi trailers, bulk cement

semi trailers, petroleum tankers, fence semi trailers, dump semi trailers, drop side semi trailers ans other special

trucks.Our market is around the world for example Australia, Malaysia, Ghana, Jamaica, Chad, Tanzania, Zambia

and other countries. Please trust us.Welcome to visit our factory in Shandong, China. And we accept video phone

calls to see our factory and workshop because of the COVID-19.

12000mm 30 Ton Semi Tanker Trailer Truck Waste Garbage Rubbish Transfer Crawler Dump

China popular used best sale crawler 12000 mm 30 ton waste garbage rubbish transfer

dump semi trailer truck with caterpillar

This kind of crawler dump truck is used for transfer life waste. Lift waste is light and can be tight in the

trucks. We use stainless steel and corrosion resistant material to extend the service life. In China, it

is popular in transfer life waste. Really use well. So we want to put it into the whole world.

Please contact us, if any need.

12000mm 30 Ton Semi Tanker Trailer Truck Waste Garbage Rubbish Transfer Crawler Dump

We use stainless steel to prevent the truck from rusting because there are water

in life waste. The trucks' years of working will be longer than normal. We maintain

these trucks about once two years.

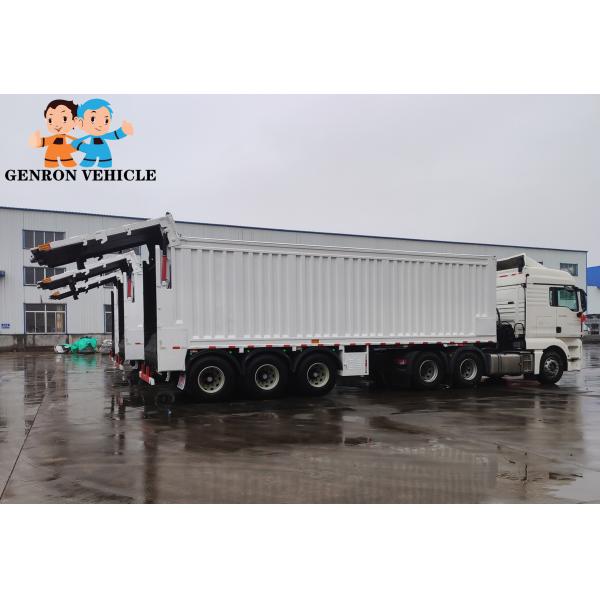

Tipping with crawler can prevent the truck from turnover.

We also could do carbon steel type for normal usage , for example, tipping the sand.

Details；

Dimension

12000mm * 2500mm * 3800mm(outer size) (For China6*4 tractor size )

11880mm * 2360mm * 2000mm(working space)

Tare weight

About 14 tons

Loading capacity

≤ 33 tons

Main Beams

Welding beam Design, AG700 high tension steel ,

Height:430mm

upper plate is 8mm width:140mm

Middle plate is 5 mm Down plate is 14 mm

Side wall

0.8mm high tension corrugated sheet + 1.5mm-304 stainless steel, all welding lines are sealed with leak-proof glue, sprayed with
anti-corrosion material.

Bottomfloor Platform

Thickness:2mm stainless steel with anti-corrosion

Pump system

Double motor pump system on both side of rear trailer.

Cover tarpaulin

Automatic controller

Conveyor belt

2200mm(Effective width:2100mm) Material: Corrosion resistant, acid and alkali resistant rubber rubber. Junction Plate: 3mm, A700L
High strength board spray anti-corrosion material. Rubber connecting plug:304 stainless steel

Chassis

Axle

13T Fuwa brand axles ,3 pcs (China no.1)

Suspension

Heavy duty mechanical suspension

Rim

9.00-22.5 Steel China Brand 12 pcs+1 spare

Tire

12.00R22.5 Triangle brand 12 pcs +1 spare

King Pin

JOST 2.00 inch bolt-in king pin

Leaf Spring

Six units heavy duty spring,90(W)mm*13(Thickness)mm*10 Layer

Valve

WABCO RE 6 relay valve;

Brake Chamber

T30/30 air brake chamber six pcs , china brand , one piece of 45L air tanks

PTO system

With (for china brand truck tractor)

Landing legs

Jost brand double speed 28tons

ABS

Optional (without)

Light

LED light

Voltage

24V

Receptacle

7 ways (7 wire harness)

Tool box

1m×0.5m×0.5m with tire spaner

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Color can be choose by customer

Shipping terms

By bulk cargo . Wax before shipping

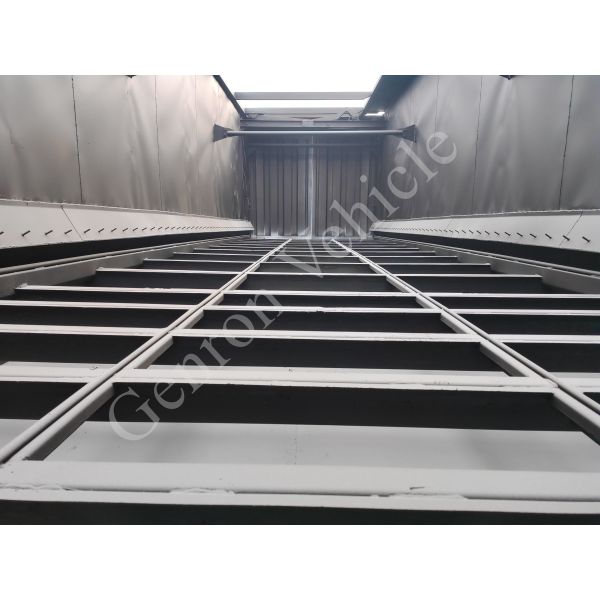

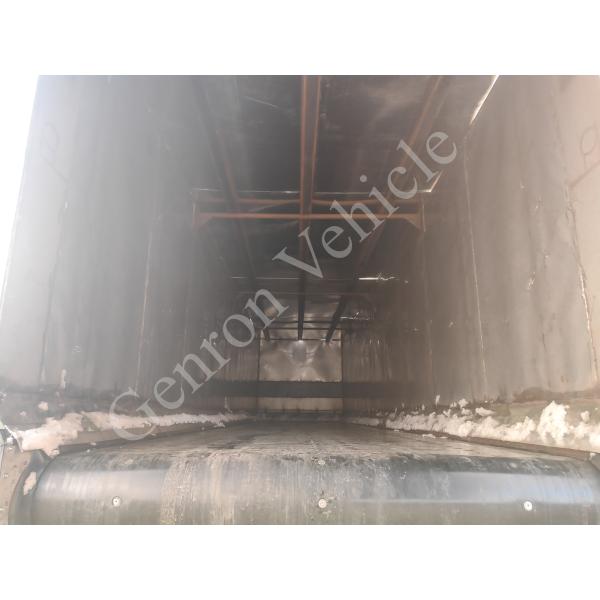

Inner picture:

12000mm 30 Ton Semi Tanker Trailer Truck Waste Garbage Rubbish Transfer Crawler Dump

12000mm 30 Ton Semi Tanker Trailer Truck Waste Garbage Rubbish Transfer Crawler Dump

Qingdao Genron International Trade Co.,Ltd Main Business is Exporting all kinds

of trailers ,trailer parts and Man-hand Welding Machinery ,Automatic Welding

machinery,Trailer Production Line Etc. We have our own factory which produce

trailers for more than 15 years,we can help you exporting other machinery and trucks.

FAQ:

1. who are we?
We are based in Shandong, China, start from 2019,sell to Africa(60.00%),Southeast

Asia(10.00%),Oceania(10.00%),Mid East(10.00%),North America(5.00%),South

America(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Truck Trailer,Trailer Spare Parts,Dry Ice Make Machine,Construction Machine,Diesel Tricycle

4. why should you buy from us not from other suppliers?
We have more than five factory partners which are at least TOP 3 factory in China

suppliers ,we have our own technical team ,two of them are up to Engineer , two of

them are graduated from University ,have got own patented design ,use auto CAD solid figur

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,French,Russian
