BY42BLY03 24V DC 33W 0.1N.m high speed Brushless DC motor
BY42BLY03 24V DC 33W 0.1N.m high speed Brushless DC motor
Specifications
Place of Origin :
Changzhou
Brand Name :
BangYi
Model Number :
BY42BLY03
Certification :
CCC , SGS IS9000
Price :
USD18.19/pcs
Packaging Details :
CARTON
Delivery Time :
20 WORKING DAYS
Payment Terms :
T/T IN ADVANCE, Western Union
Supply Ability :
8000/month
MOQ :
50pcs
Model :
BY42BLY03
Voltage :
24VDC
Current :
3A
Rated speed :
3000rpm
Rated torque :
0.13N.M
Power :
33W
Body length :
78mm
Weight :
0.8kg
Description

Brushless DC Motor

Specifications:

BY42BLY03

Voltage

24

Rated out power

P out

W

33

Rated speed

nN

RPM

3000

Rated current

I N

A

3.0

Rated torque

T N

N.m

0.13

Peak current

I P

A

9

Peak torque

T p

N.m

0.3

Voltage constant

K E

V/ Krpm

3.37

Torque constant

K T

N.m/A

0.035

Rotor inertia

J

Kg.cm 2

0.45

Number of poles

NP

4

Winding class

B

Motor weight

Kg

0.8

We can produce motor according to customer's requirements.

Motor can add gear box and encoder.

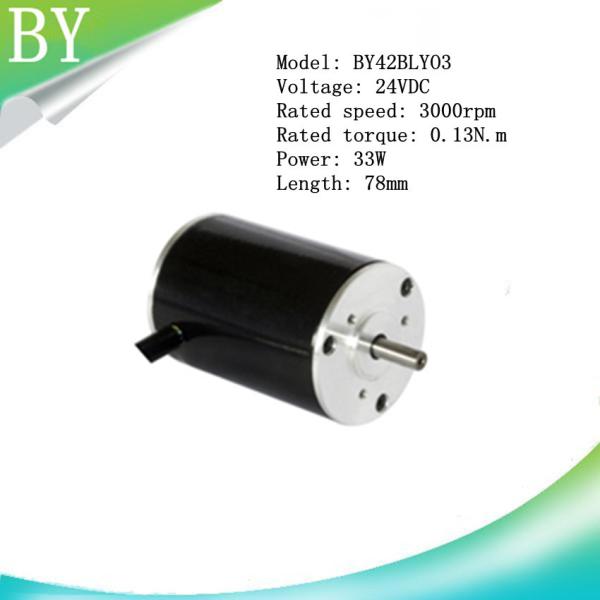

Figure:

BY42BLY03 24V DC 33W 0.1N.m high speed Brushless DC motor

Wiring Diagram:

BY42BLY03 24V DC 33W 0.1N.m high speed Brushless DC motor

BY42BLY03 24V DC 33W 0.1N.m high speed Brushless DC motorBY42BLY03 24V DC 33W 0.1N.m high speed Brushless DC motor
