Mechanical Electric Pneumatic Rotary Union Joint 1000RPM
Mechanical Electric Pneumatic Rotary Union Joint 1000RPM
Mechanical Electric Pneumatic Rotary Union Joint 1000RPM
Mechanical Electric Pneumatic Rotary Union Joint 1000RPM
Mechanical Electric Pneumatic Rotary Union Joint 1000RPM
Mechanical Electric Pneumatic Rotary Union Joint 1000RPM
Mechanical Electric Pneumatic Rotary Union Joint 1000RPM
Mechanical Electric Pneumatic Rotary Union Joint 1000RPM
Specifications
Brand Name :
senring
Model Number :
3008006
Certification :
CE, ISO9001,ROHS,REACH
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T,credit card or Paypal
Packaging Details :
Carton
Channels :
8 Channels
Max. Operating Pressure :
Positive Pressure 1Mpa, Vacuum -90kPa
Pipe Size :
6~8mm pipe, G1/8" Port
torque :
<0.8N.m
Working temperature :
-30°C~80°C
Operating humidity :
0~85% RH
Description

3008006 Series G1/8 8 Channels Pneumatic & Electric Rotary Union

Channel Size G1/8",Support 6~8mm pipes,Can be Combine To Transfer 6~56 Circuits Electrical Power/Signal

Description of rotary union

SENRING 3008006 series,support G1/8 port for 6~8mm pipes,can transfer various mediums including compressed air,steam,vacuum,negative pressure when 360° rotating, Advantages : compact size, light weight , low torque.

Technical Specification of 3008006 series slip ring

Channels(Gas) 8 channels
Pipe Size 6~8mm pipe, G1/8" Port
Mechanical Data
spec. data
Operating life 10millions for ref(depends on working conditions)
Max. Operating Speed 250RPM continously, 1000RPM intermittently
Working temperature -30°C~80°C
Work humidity 0~85% RH
Contact Materia Precious Metal
Housing Material aluminum alloy
IP Grade IP51
Max. Operating
Pressure		 Positive Pressure 1Mpa, Vacuum -90kPa
torque <0.8N.m
Electrical Data
spec. data
Power Signal
Voltage range 0~440VAC/VDC 0~440VAC/VDC
Insulation resistance <500MΩ/300VDC <500MΩ/300VDC
Lead wire size AWG17# Silver-plated teflon wire AWG22# Silver-plated teflon wire
Lead wire length standard 300mm(can be customized)
Insulation resistance 500VAC@50Hz,6s
Electrical noise <0.01Ω

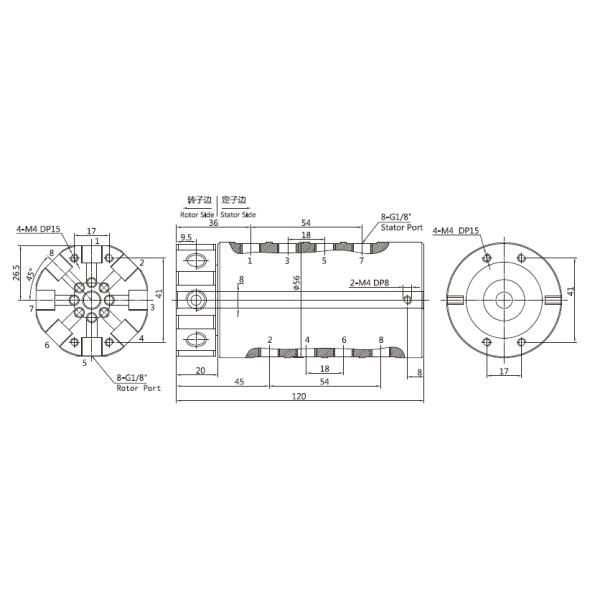

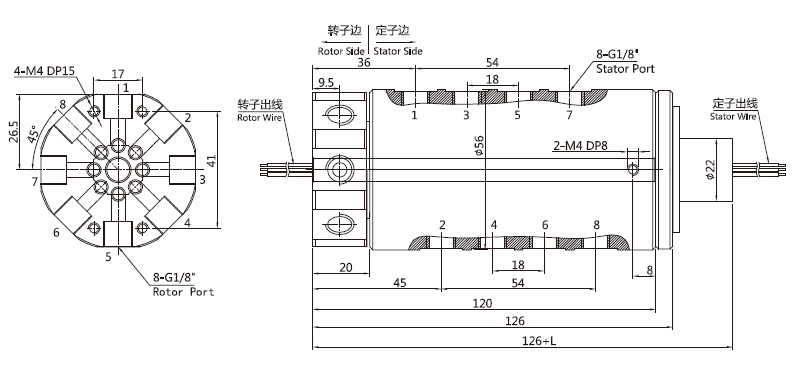

Drawing
Mechanical Electric Pneumatic Rotary Union Joint 1000RPM
Mechanical Electric Pneumatic Rotary Union Joint 1000RPM
Features
1.Support transmit mixed power and signals,such as USB,HDMI, 1000M ethernet, VGA, DVI, coaxial RF (high frequency),servo 2.motor signal,industrial bus slip rings...etc;
3.360° transmit compressed air,steam,vacuum,negative pressure,positive pressure...etc;
4.Max. Pressure(s):1Mpa (vacuum: -1.5kPa, higher Pressure can be customized)；
5.Support 8 G1/8" port for 6~8mm pipes;
Application:
1. Automation equipment
2. Robotics
3. Medical equipments
4. Wind turbine generator

5.Variable-speed motor

FAQ:
Q: How to get in touch with us?
A: You can click "Contact Now"above,
Q: How to pay?
A: Normally we advise accept T/T, accept credit card, Paypal also.
Q: Can you make by customer's design?
A: Yes, we can.Please email your design details to us, we will make as your requirement.
Q: What's the delivery time?
A: Normally within 15 days, also depends on your order quantity.
