Odm Low Torque Medium Capsule Slip Ring Manufacturers 22mm 2~36 Wire
Odm Low Torque Medium Capsule Slip Ring Manufacturers 22mm 2~36 Wire
Specifications
Brand Name :
senring
Model Number :
M220
Certification :
CE, ISO9001,ROHS,REACH
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T,paypal or credit card
Packaging Details :
carton
Dielectric Strength :
300VAC@50Hz, 60s
Electrical Noise :
< 0.01Ω
Rotating speed :
250RPM
IP Grade :
IP51
Working Life :
10millions for ref(depends on working conditions)
Torque :
0.05N.m+0.01N.m/6 wire
Description

Low Torque Medium Capsule Slip Ring OD 22mm 2~36wires Power / Signal

Description of M220 Capsule Slip Ring

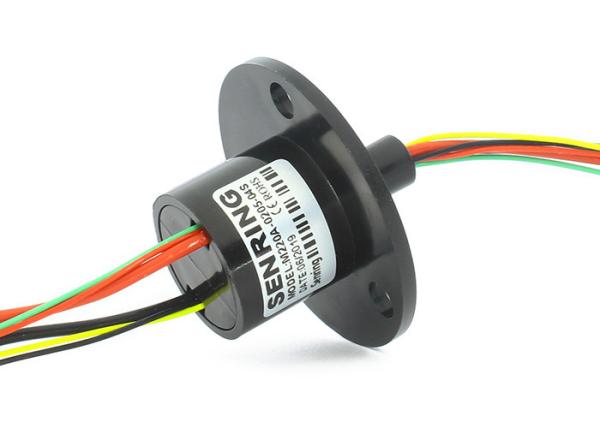

Senring SNM220 series medium capsule slip ring,OD 22mm, length from 19mm~57.3mm option,A type flange and without flange optional.SNM022 series capsule slip ring is designed 90° V- groove ensures smooth rotating, low torque, also compact, advanced military

Features of M220 Capsule Slip Ring

1. The slip ring has an outer diameter of 22mm;

2. The torque is very small, less than 0.06N.m;

3. The standard model supports 2-36 channels of signal (2A per channel), and custom slip rings with different numbers of channels can be made;

4. Standardized product with stock available;

5. Easy to install, with both A-type and U-type flange mounting options.

Technical Specification of M220 Capsule Slip Ring

Mechanicall parameters
Working Life 10millions for ref(depends on working conditions)
Rotating speed 250RPM
Working Temp. -30°C~80°C
Work Humidity 0~85% RH
Contact Material precious metal:gold-gold
Housing Material engineered plastic
Torque 0.05N.m+0.01N.m/6 wire
IP Grade IP51
Electrical parameters
Spec. Power Signal
Voltage Range 0~240VAC/VDC 0~240VAC/VDC
Insolution Resistance ≥200MΩ/300VDC ≥200MΩ/300VDC
Lead wire Spec. refer to model list refer to model list
lead wire length standard length 150mm(can be customized)
Dielectric Strength 300VAC@50Hz,60s
Electrical Noise < 0.01Ω
IP Grade IP51

Part no. description

Odm Low Torque Medium Capsule Slip Ring Manufacturers 22mm 2~36 Wire

Drawing
Odm Low Torque Medium Capsule Slip Ring Manufacturers 22mm 2~36 Wire
Standard model list
model Circuits NO. Max current/circuit lead wire spec. Length L(mm)
M220-06 6 2A Silver-plated teflon AWG26# 19
M220-12 12 2A Silver-plated teflon AWG26# 26
M220-18 18 2A Silver-plated teflon AWG26# 33
M220-24 24 2A Silver-plated teflon AWG26# 40
M220-36 36 2A Silver-plated teflon AWG26# 54.5
M220-0605 6 5A Silver-plated teflon AWG22# 40
M220-0805 8 5A Silver-plated teflon AWG22# 40
M220-1205 12 5A Silver-plated teflon AWG22# 40
M220-0210 2 10A Silver-plated teflon AWG17# 26
M220-0310 3 10A Silver-plated teflon AWG17# 33
M220-0410 4 10A Silver-plated teflon AWG17# 40
M220-0230 2 30A Silver-plated teflon AWG12# 45
M220-0330 3 30A Silver-plated teflon AWG12# 45
M220-0205-12S 2circuits@5A+12circuits Signal@2A 5A&AWG22#, signal &AWG26# 40
M220-0305-12S 3circuits@5A+12circuits Signal@2A 5A&AWG22#, signal &AWG26# 40
M220-0605-06S 6circuits@5A+6circuits Signal@2A 5A&AWG22#, signal &AWG26# 40
M220-0210-12S 2circuits@10A+12circuits Signal@2A 10A&AWG17#, signal &AWG26# 40
M220-0310-06S 3circuits@10A+6circuits Signal@2A 10A&AWG17#, signal &AWG26# 40
M220-0320-04S 3circuits@20A+4circuits Signal@2A 20A&AWG14#, signal &AWG26# 40
M220-0410-04S 4circuits@10A+4circuits Signal@2A 10A&AWG17#, signal &AWG26# 40

Color code of Lead Wire

ring no. 1 2 3 4 5 6 7 8 9 10 11 12
color black brown red orange yellow green blue purple grey white pink lightblue
