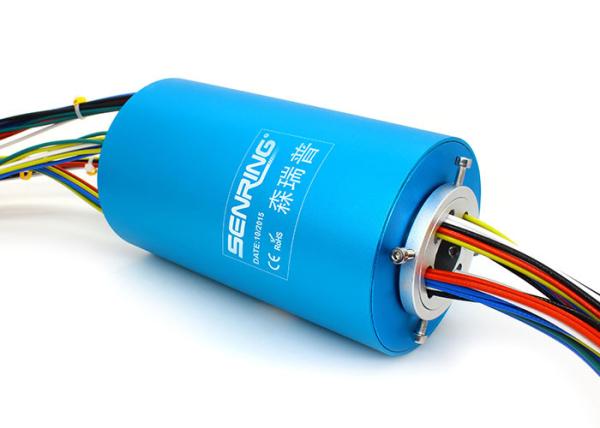

H38119 Through Bore Rotary Joint Electrical Connector 12 Wire Slip Ring
H38119 Through Bore Rotary Joint Electrical Connector 12 Wire Slip Ring
H38119 Through Bore Rotary Joint Electrical Connector 12 Wire Slip Ring
H38119 Through Bore Rotary Joint Electrical Connector 12 Wire Slip Ring
Specifications
Brand Name :
senring
Model Number :
H38119
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C
Insolution Resistance:Power :
≥1000MΩ/500VDC
Insolution Resistance:Signal :
≥1000MΩ/500VDC
OD :
119mm
Hole size :
50mm
working temp. :
-30℃∼80℃
Work Humidity :
0~85% RH
Description

Through Bore Slip Ring Applied To Any Devices Where Requires To Transmit Power And Signals

Description of H38119 Through Bore Slip Ring

The H38119 series is a standard aperture conductive slip ring with a 38.1mm aperture (suitable for any rotating device with a diameter of ≤38.1mm) and an outer diameter of 119mm. It can stably transmit 2 to 48 channels of current or signal and can be used for any device that requires 360° rotation for conducting or transmitting various signals.

Where is a slip ring used and where is a commutator used?
A commutator is a specialized slip ring typically used on Direct Current motors and electrical generators to transfer electrical power between the stationary housing and the rotating armature with the added purpose of reversing the electrical current direction.
Technical Specification of H38119 Through Bore Slip Ring
Mechanical parameters
Working Life refer to slip ring grade table
Rotating speed refer to slip ring grade table
Working Temp. -30°C~80°C
Work Humidity 0~85% RH
Contact Material refer to slip ring grade table
Housing Material AL alloy
Torque 0.05N.m+0.02N.m/6 wire
IP Grade IP51
Electrical parameters
Spec. Power Signal
Voltage Range 0~690VAC/VDC 0~440VAC/VDC
Insolution Resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
Lead wire Spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard length 300mm(can be customized)
Dielectric Strength 800VAC@50Hz,60s
Electrical Noise < 0.01Ω

Features of H38119 Through Bore Slip Ring

1. Advanced multi-point contact brush technology ensures reliable contact with low friction;

2. Standard model supports 2~36 circuits power@10A or 2~108 circuits signal@2A,current and channels can be customized.

3. Can be customized to combine power/signal transmitting

4. Support transmitting power with signals ;

5. Integrated structure design, easy installation.

Part no. description
H38119 Through Bore Rotary Joint Electrical Connector 12 Wire Slip Ring
Drawing
H38119 Through Bore Rotary Joint Electrical Connector 12 Wire Slip Ring
Standard model list
model circuits Length L(mm) model circuits Length L(mm)
10A signal or 0-5A 10A signal or 0-5A
H38119-02S 0 2 36 H38119-36S 0 36 172
H38119-0210 2 0 36 H38119-0610-30S 6 30 172
H38119-03S 0 3 40 H38119-1210-24S 12 24 172
H38119-0310 3 0 40 H38119-3610 36 0 172
H38119-06S 0 6 52 H38119-42S 0 42 196
H38119-0210-04S 2 4 52 H38119-0610-36S 6 36 196
H38119-0410-02S 4 2 52 H38119-1210-30S 12 30 196
H38119-0610 6 0 52 H38119-4210 42 0 196
H38119-12S 0 12 76 H38119-48S 0 48 220
H38119-0210-10S 2 10 76 H38119-0610-42S 6 42 220
H38119-0310-09S 3 9 76 H38119-1210-36S 12 36 220
H38119-0610-06S 6 6 76 H38119-1810-30S 18 30 220
H38119-0810-04S 8 4 76 H38119-P2410-24S 24 24 220
H38119-1010-02S 10 2 76 H38119-4810 48 0 220
H38119-1210 12 0 76 H38119-60S 0 60 268
H38119-18S 0 18 100 H38119-0610-54S 6 54 268
H38119-0210-16S 2 16 100 H38119-0910-51S 9 51 268
H38119-0410-14S 4 14 100 H38119-1210-48S 12 48 268
H38119-0610-12S 6 12 100 H38119-2410-36S 24 36 268
H38119-0810-10S 8 10 100 H38119-72S 0 72 316
H38119-1010-08S 10 8 100 H38119-1210-60S 12 60 316
H38119-1210-06S 12 6 100 H38119-2410-48S 24 48 316
H38119-1410-04S 14 04 100 H38119-3610-36S 36 36 316
H38119-1610-02S 16 2 100 H38119-84S 0 84 364
H38119-24S 0 24 124 H38119-1210-72S 12 72 364
H38119-0410-20s 4 20 124 H38119-2410-60s 24 60 364
H38119-0610-18S 6 18 124 H38119-3610-48S 36 48 364
H38119-1210-12S 12 12 124 H38119-96S 0 96 412
H38119-1810-06S 18 6 124 H38119-1210-84S 12 84 412
H38119-2410 24 0 124 H38119-2410-72S 24 72 412
H38119-30S 0 30 148 H38119-3610-60S 36 60 412
H38119-0610-24S 6 24 148 H38119-4210-54S 42 56 412
H38119-1210-18S 12 18 148 H38119-108S 0 108 460
H38119-1810-12S 18 12 148 H38119-1210-96S 12 96 460
H38119-2410-06S 24 06 148 H38119-2410-84S 24 84 460
H38119-3010 30 0 148 H38119-3610-72S 36 72 460

* Remark: circuits can be combined in parallel for bigger current, N circuits of 10A to get N*10A, such as 2 circuits of 10A in parallel for 20A use.10A circuits No. and signal circuits ( 5A) No. can be customized based on standard products, pls inquiry Senring for details.

H38119 Grade Table

Grade code Max rotating speed Working Life Contact Material
C(Standard) 250RPM 20 millions revolutions precious metal
D(Industrical) 600RPM 80 millions revolutions precious metal
H(High Quality) 1000RPM 150 millions revolutions gold alloy
