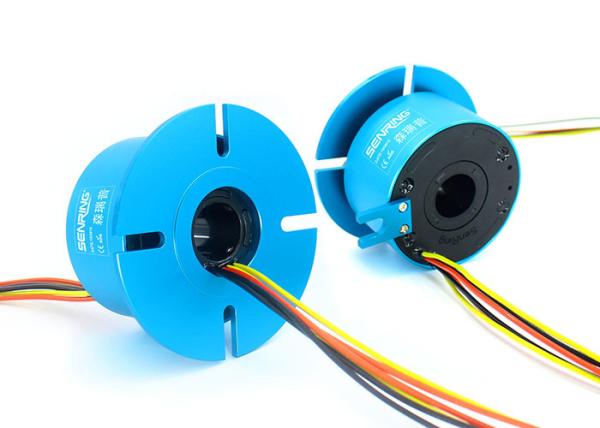

Senring 6 Wire Through Bore Slip Ring Hole 38.1mm OD 99mm
Senring 6 Wire Through Bore Slip Ring Hole 38.1mm OD 99mm
Senring 6 Wire Through Bore Slip Ring Hole 38.1mm OD 99mm
Senring 6 Wire Through Bore Slip Ring Hole 38.1mm OD 99mm
Senring 6 Wire Through Bore Slip Ring Hole 38.1mm OD 99mm
Senring 6 Wire Through Bore Slip Ring Hole 38.1mm OD 99mm
Specifications
Brand Name :
senring
Model Number :
H3899F
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C
product name :
Rotor flange Through Bore Slip Ring
Housing Material :
AL alloy
Hole size :
38.1mm
OD :
99mm
working temp. :
-30℃∼80℃
Work Humidity :
0~85% RH
Description

Rotor flange Medium Size Through Bore Slip Ring Hole Size 38.1mm OD 99mm

Description of H3899F Through Bore Slip Ring

The H3899F series is a standard aperture conductive slip ring with a 38.1mm aperture (suitable for any rotating device with a diameter of ≤38.1mm) and an outer diameter of 99mm. It can stably transmit 2 to 8 channels of 0~2A current or signal and can be used for any device that requires 360° rotation for conducting or transmitting various signals.

Technical Specification of H3899F Through Bore Slip Ring
Mechanical parameters
Working Life refer to slip ring grade table
Rotating speed refer to slip ring grade table
Working Temp. -30°C~80°C
Work Humidity 0~85% RH
Contact Material refer to slip ring grade table
Housing Material AL alloy
Torque 0.05N.m+0.02N.m/6 wire
IP Grade IP51
Electrical parameters
Spec. Power Signal
Voltage Range 0~690VAC/VDC 0~440VAC/VDC
Insolution Resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
Lead wire Spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard length 300mm(can be customized)
Dielectric Strength 800VAC@50Hz,60s
Electrical Noise < 0.01Ω

Features of H3899F Through Bore Slip Ring

1. Advanced multi-point contact brush technology ensures reliable contact with low friction;

2. Standard model supports 2~36 circuits power@10A(N*10A)) or 2~72 circuits signal@2A,current and channels can be customized;

3. Can be customized to combine power/signal transmitting

4. Support transmitting power with signals ;

5. Integrated structure design, easy installation.

Part no. description
Senring 6 Wire Through Bore Slip Ring Hole 38.1mm OD 99mm
Drawing
Senring 6 Wire Through Bore Slip Ring Hole 38.1mm OD 99mm
Standard model list
model circuits Length L(mm) model circuits Length L(mm)
10A signal or 0-5A 10A signal or 0-5A
H3899F-02S 0 2 32 H3899F-1210-12S 12 12 120
H3899F-0210 2 0 32 H3899F-1810-06S 18 6 120
H3899F-03S 0 3 36 H3899F-2410 24 0 120
H3899F-0310 3 0 36 H3899F-30S 0 30 144
H3899F-06S 0 6 48 H3899F-0610-24S 6 24 144
H3899F-0210-04S 2 4 48 H3899F-1210-18S 12 18 144
H3899F-0410-02S 4 2 48 H3899F-1810-12S 18 12 144
H3899F-0610 6 0 48 H3899F-2410-06S 24 6 144
H3899F-12S 0 12 72 H3899F-3010 30 0 144
H3899F-0210-10S 2 10 72 H3899F-36S 0 36 168
H3899F-0310-09S 3 9 72 H3899F-0610-30S 6 30 168
H3899F-0610-06S 6 6 72 H3899F-1210-24S 12 24 168
H3899F-0810-04S 8 4 72 H3899F-3610 36 0 168
H3899F-1010-02S 10 2 72 H3899F-42S 0 42 192
H3899F-1210 12 0 72 H3899F-0610-36S 6 36 192
H3899F-18S 0 18 96 H3899F-1210-30S 12 30 192
H3899F-0210-16S 2 16 96 H3899F-48S 0 48 216
H3899F-0410-14S 4 14 96 H3899F-0610-42S 6 42 216
H3899F-0610-12S 6 12 96 H3899F-1010-38S 10 38 216
H3899F-0810-10S 8 10 96 H3899F-1210-36S 12 36 216
H3899F-1010-08S 10 8 96 H3899F-1810-30S 18 30 216
H3899F-1210-06S 12 6 96 H3899F-2410-24S 24 24 216
H3899F-1410-04S 14 4 96 H3899F-60S 0 60 264
H3899F-1610-02S 16 2 96 H3899F-0610-54S 6 54 264
H3899F-24S 0 24 120 H3899F-1010-50S 10 50 264
H3899F-0410-20S 4 20 120 H3899F-1210-48S 12 48 264
H3899F-0610-08S 6 18 120 H3899F-72S 0 72 312

* Remark: circuits can be combined in parallel for bigger current, N circuits of 10A to get N*10A, such as 2 circuits of 10A in parallel for 20A use.10A circuits No. and signal circuits ( 5A) No. can be customized based on standard products, pls inquiry Senring for details.

H3899F Grade Table

Grade code Max rotating speed Working Life Contact Material
C(Standard) 250RPM 20 millions revolutions precious metal
D(Industrical) 600RPM 80 millions revolutions precious metal
H(High Quality) 1000RPM 150 millions revolutions gold alloy
FAQ:
Q: How to get in touch with us?
A: You can click "Contact Now"above,

Q: How to pay?
A: Normally we advise accepting T/T, L/C, accept Western Union, Paypal also.

Q: Can you make by customer's design?
A: Yes, we can.Please email your design details to us, we will make as your requirement.

5. What's the delivery time?
A: Normally within 15 days, also depends on your order quantity.

As the product design and specification more than the given product attributes, images, prices are for reference only, welcome to send your design and requests to us, thanks.
