1080P HD Signal HD-SDI Slip Ring Electrical Contacts 1 Channel
1080P HD Signal HD-SDI Slip Ring Electrical Contacts 1 Channel
1080P HD Signal HD-SDI Slip Ring Electrical Contacts 1 Channel
1080P HD Signal HD-SDI Slip Ring Electrical Contacts 1 Channel
Specifications
Brand Name :
senring
Model Number :
O022-12
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C
working life :
10millions for ref(depends on working conditions)
product name :
1 Channel HD-SDI Slip Ring
Specification :
RG405
Frequency rate :
DC-3GHz
Insertion loss fluctuation :
+/-0.05dB
impedance :
50Ω
Description

1 Channel 1080P HD Signal 12 Circuits 2A Current HD-SDI Slip Ring

Description of O022-12 HD-SDI Slip Ring

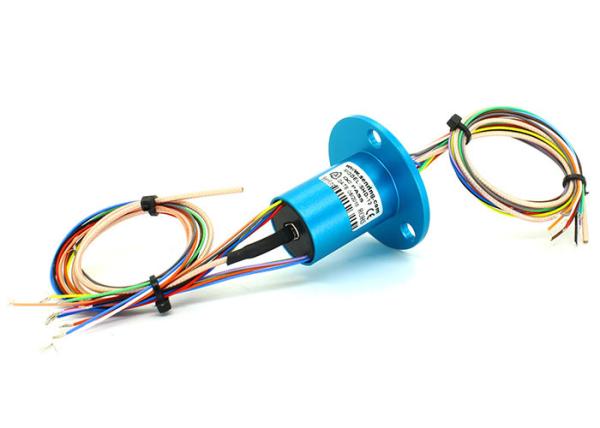

SENRING O022-12 seires HD video slip ring ,can transmit 1 channel HD video signal ,DC~3GHz coaxial HD signal or 12 circuits 2A signal when 360° roating,rated speed:100RPM.SHD-12 series HD slip ring,OD 22mm, length 25.5,MMCX,SMA coaxial connector optional.

HD-SDI slip rings are high-end products, specially designed to support high definition video signal 1080P. This series slip ring can support max rate 3GHZ, also can combine with 1-24 circuits signal and weak current. It deals with brushes for hard gold plating, which guarantees low resistance fluctuation and long working life. This product is mainly used for transmitting the weak controlling signal for small and medium applications, such as video, control, sensor, power, Ethernet, etc.

Features of O022-12 HD-SDI Slip Ring

1. Support DC~3GHz, can stable transmit 1080P HD vedio signal;

2. Solid, with flange;

3. Can transmit 1 channel HD video slip ring +12 circuits 2A power/signal when 360° rotating;

4. OD:22mm,length:25.5mm;

5. Can be combined to transmit HF signal, control signal, video signal and other signals;

6. Excellent electrical transmission and rotation performance;

7. Typical Application:HD security monitoring, photographic camera, HD camera and other fields.

Technical Specification of O022-12 HD-SDI Slip Ring

Frequency rate DC-3GHz
Insertion loss fluctuation +/-0.05dB
Specification RG405
VSWR ≤1.3
impedance 50Ω
Mechanical Data
spec data
working life 10millions for ref(depends on working conditions)
Rotating speed 250RPM continously
working temp. -30℃∼80℃
work humidity 0∼85% RH
contact material refer to slip ring grade table
housing material aluminum alloy
torque 0.1N.m+(0.03N.m/6 circuits)
Insertion loss 0.65dB/1GHz Max
return loss -18 dB/1GHz Max
Max speed 50RPM
VSWR fluctuation +/-0.05
Style BNC/F (Options)
Electrical Data
spec data
voltage range 0∼440VAC/VDC
insulation resistance ≥1000MΩ/500VDC
lead wire spec. AWG26# Silver-plated teflon
lead wire length standard 250mm(can be customized)
Dielectric Strength 500VAC@50Hz,60s
Electrical noise < 0.01Ω
Electrical Noise < 10mΩ
CE certificate Yes
material RoHS compliant

Drawing

1080P HD Signal HD-SDI Slip Ring Electrical Contacts 1 Channel

Product tags

slip ring hdmi

,

belden hd sdi cable

,

hdmi cable arc compatible
