1000M/100M Base-T Gigabit Ethernet Slip Ring High Power 2 Channels
1000M/100M Base-T Gigabit Ethernet Slip Ring High Power 2 Channels
1000M/100M Base-T Gigabit Ethernet Slip Ring High Power 2 Channels
1000M/100M Base-T Gigabit Ethernet Slip Ring High Power 2 Channels
Specifications
Brand Name :
senring
Model Number :
EH3899-02
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C
Ethernet :
2 channels 100M/1000M baseT
lead wire length :
can be customized
Dielectric Strength :
500VAC@50Hz，60s
working temp :
-30℃∼80℃
work humidity :
0∼85% RH
connectors :
RJ45
Description

1000M/100M Base-T Ethernet Slip Ring 2 Channels Gigabit Ethernet

Description of EH3899-02 Ethernet Slip Ring

Available for custom, run 100/1000M Ethernet signal

Insertion loss, return loss and crosstalk are three very important parameters for an Ethernet slip ring. All SenRing technology Ethernet slip ring components are reliable metal and gold plated circuits connections, products housing is made of aluminium. The company supply slip rings with advantages of stable transmission, no packet loss, no serial code, small return loss, low insertion loss, etc.

Although SenRing offer modularized & standardized design for various application solutions as an original slip rings manufacturer. To create your most suitable Ethernet slip ring connector, please feel free to contact us.

Features of EH3899-02 Ethernet Slip Ring

1. This product uses a standard RJ45 connector and can be equipped with an RJ45 female connector.

2. It can stably transmit a single channel gigabit Ethernet signal and can transmit up to 8 Ethernet channels simultaneously.

3. It can mix transmit 1-58 channels of power/current/signal. It mainly transmits Ethernet (10M/100M/1000M BaseT), and can also work with current channels or fluid rotary joints.

4. The slip ring has a hole diameter of 50mm and an outer diameter of 120mm.

5. It uses US military coating technology with an ultra-low BER error rate and an ultra-high signal-to-noise ratio.

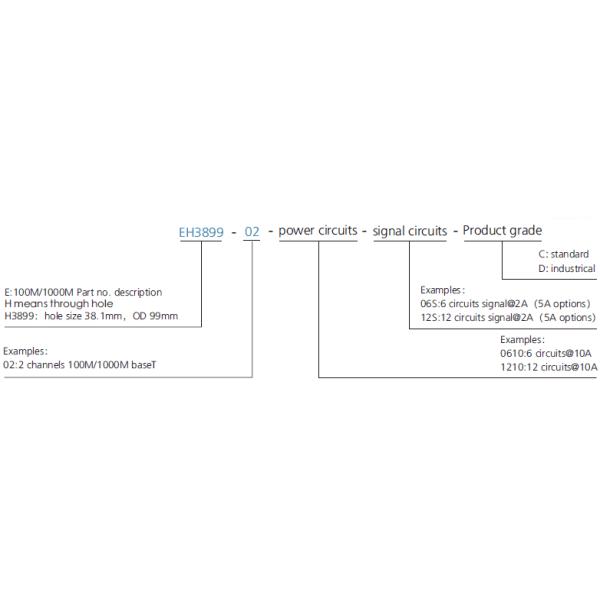

Part no. description

1000M/100M Base-T Gigabit Ethernet Slip Ring High Power 2 Channels

Drawing of EH3899-02 Ethernet Slip Ring

1000M/100M Base-T Gigabit Ethernet Slip Ring High Power 2 Channels

Technical Specification of EH3899-02 Ethernet Slip Ring

Ethernet 2 channels 100M/1000M baseT
Mechanical Data
spec data
working life refer to slip ring grade table
Rotating speed refer to slip ring grade table
working temp -30℃∼80℃
work humidity 0∼85% RH
contact material refer to slip ring grade table
housing material aluminum alloy
torque 0.1N.m;+0.03N.m/6 circuits
connectors RJ45
Electrical Data
spec data
power signal
voltage range 0∼440VAC/VDC 0∼440VAC/VDC
insulation resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
lead wire spec AWG17# Silver-plated teflon wire AWG22# Silver-plated teflon wire
lead wire length standard 300mm(can be customized)
Dielectric Strength 500VAC@50Hz,60s
Electrical noise < 0.01Ω
Electrical Noise <10 Ω
CE certificate yes
Mechanical vibration MIL-STD-810E
Material RoHS compliant

Standard model list

Model power/signal circuits no. Ethernet channels no. length L(mm)
signal(0∼2A) power(10A) power(20A)
EH3899-02-02S 2 0 0 2 96
EH3899-02-0210 0 2 0 2 96
EH3899-02-08S 8 0 0 2 120
EH3899-02-0810 0 8 0 2 120
EH3899-02-0410-04S 4 4 0 2 120
EH3899-02-14S 14 0 0 2 144
EH3899-02-1410 0 14 0 2 144
EH3899-02-20S 22 0 0 2 168
EH3899-02-26S 26 0 0 2 196
EH3899-02-32S 32 0 0 2 216
EH3899-02-56S 56 0 0 2 312

EH3899-02 Ethernet Slip Ring Grade Table

Grade code Max rotating speed Working Life Contact Material
C(Standard) 250RPM 20 millions revolutions precious metal
D(Industrical) 600RPM 80 millions revolutions gold-gold

Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
