NTC 2k Temperature Sensor For HVAC
NTC 2k Temperature Sensor For HVAC
NTC 2k Temperature Sensor For HVAC
NTC 2k Temperature Sensor For HVAC
NTC 2k Temperature Sensor For HVAC
NTC 2k Temperature Sensor For HVAC
NTC 2k Temperature Sensor For HVAC
NTC 2k Temperature Sensor For HVAC
Specifications
Brand Name :
KeramControls
Model Number :
KTS120
Certification :
CE
Place of Origin :
China
MOQ :
10
Payment Terms :
L/C, T/T
Supply Ability :
2000pics/month
Delivery Time :
7days
Packaging Details :
Carton
Temperature Sensitive Element :
NTC 2k
Storage Temperature :
-30...+70°C
Housing Material :
PC & ABS, UL94-V0
Description

NTC 2k temperature Sensor for HVAC

Description

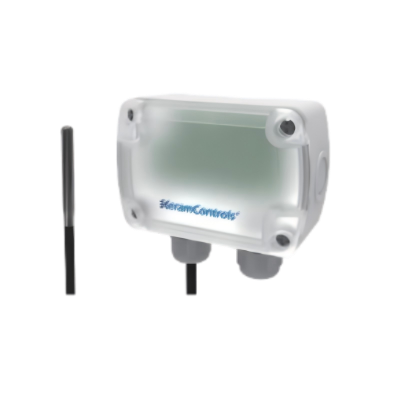

KTS120 cable temperature sensor has IP65 protection level, which can effectively prevent rain and dust, so as to protect the internal electronic components of the sensor, so that the measurement accuracy is more stable and the service life is longer.

Feature

  • Range from -40 to +200°C
  • Resistance output
  • Standard accuracy, see table
  • Protection class: IP65 / NEMA 4

Application

KTS120 temperature transmitter used for temperature measurement in heating, ventilation and air conditioning systems enabling weather-dependent temperature regulation.

Technical Data

Model KTS120
Temperature Sensitive Element PT100 Class A Accuracy ±(0.15+0.002t)
PT 1000 Class A Accuracy ±(0.15+0.002t)
NTC 10k B3950 Accuracy B:3989K±1%
NTC 10k B3435 Accuracy B:3435K±1%
NTC 1k Accuracy B:3500K±1%
NTC 2k Accuracy B:3977K±0.3%
Response Time <1min / < 30s, measuring the liquid in the pipeline
Element Connection 2-wire
Media Air or liquid
Operating Temperature -30...+ 70℃ (body) / -30...+ 200℃(probe)
Storage Temperature -30...+70°C
Measuring Range -40...+200°C
Housing Material PC & ABS, UL94-V0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5

Notes On Disposal

NTC 2k Temperature Sensor For HVAC

Product Certification

NTC 2k Temperature Sensor For HVAC

Additional Instructions

Temperature compensation

Probe length Cable resistance Temperature compensation
0.5m 0.086Ω 0.22℃
2m 0.344Ω 0.88℃
3m 0.516Ω 1.32℃

*When the temperature resistance of high resistance value (R>1000Ω), the temperature compensation can be ignored

Dimensions(mm)

NTC 2k Temperature Sensor For HVAC

Ordering Guide

KTS120- Element-Probe length

Model Element Probe length
KTS120 PT100 Class A (1) 0.5m (A)
PT1000 Class A (2) 2m (B)
NTC 10k B395 (3) 3m (C)
NTC 10k B3435 (4)
NTC 1k (5)
NTC 2k (6)

NTC 2k Temperature Sensor For HVAC

NTC 2k Temperature Sensor For HVACNTC 2k Temperature Sensor For HVAC

FAQ

1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.

2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.

3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.

4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.

5 Q: What is the warranty of your products?

A: Normal is 12 months.

6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
