Specifications
Brand Name :
Keramcontrols
Model Number :
KTH510
Certification :
CE
Place of Origin :
China
MOQ :
10
Price :
$55-$75/pic
Payment Terms :
L/C, T/T
Supply Ability :
1000pics/month
Delivery Time :
7days
Packaging Details :
Carton
Output :
4-20mA/0-5V/0-10V/RS-485
Temperature measurement range :
-35...+80℃
Humidity measurement range :
0...100%RH
Description

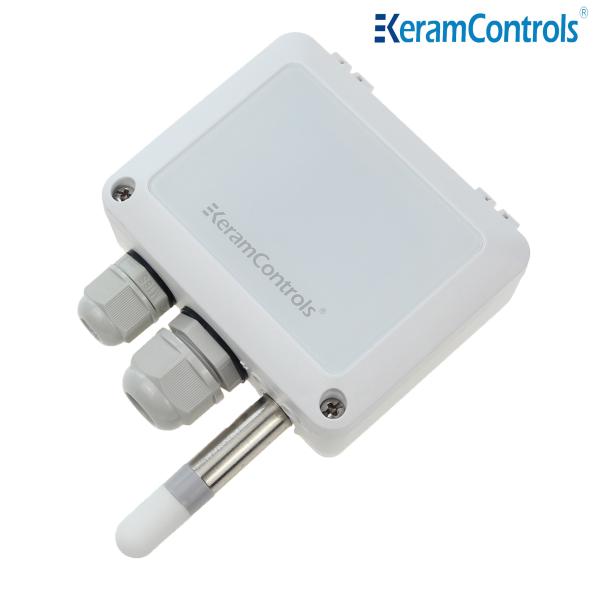

0-5V 3 Wire Humidity And Temperature Sensor For Greenhouse

Description

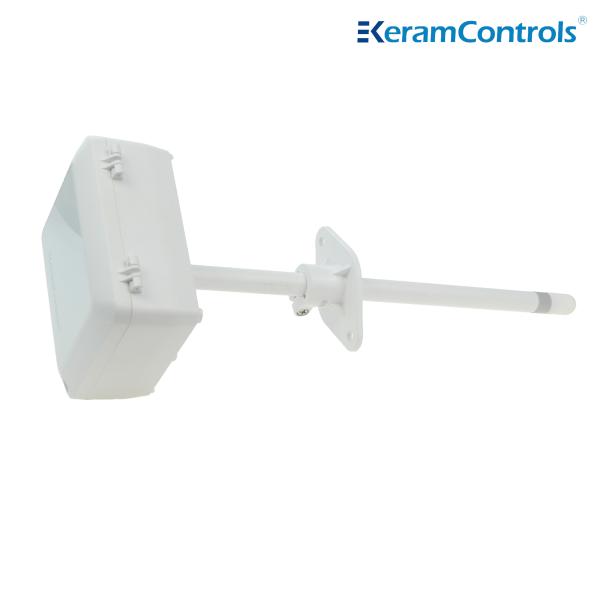

KTH510 series temperature transmitter is a temperature and humidity transmitter specially designed for customers who do not need display. It has wall installation and pipe installation options. Customers can purchase according to their own requirements. At the same time, We also support OEM, customers can come according to their needs.


Feature

  • Shell connected by hinge

More convenient wiring and setting

  • M16 M20 double cable gland

Cable size φ5…12mm

  • Smooth and flflat surface

Prevent the pollution of the shell surface in harsh environment

  • IP65/NEMA4

Application

  • HVAC system
  • Greenhouse
  • Food transportation
  • Cold storage and refrigeration
  • Clean room environment monitoring

Technical Data

Model KTH510
Power Supply 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 )
Output 4-20mA/0-5V/0-10V/RS-485
Operating Temperature -30…+70℃
Storage Temperature -40…+60℃
Operating Humidity 0...100%RH
Temperature Range DIP Switch
Maximum Wind/Flow Speed 30m/s
Electromagnetic compliance EN61326-1,Industrial Environment
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5
Measurement Performance-Temperature
Measurement Range -35...+80℃
Accuracy ±0.3℃(20-60℃)
Temperature Dependence ±0.01℃/℃
Measurement Performance-Humidity
Measurement Range 0...100%RH
Accuracy ±2%(0-90% @25℃)/±3%(90-100%@25℃)
Stability in Typical HVAC Applications ±0.01RH/Year

Dimension(mm)

0-5V 3 Wire Humidity And Temperature Sensor For Greenhouse0-5V 3 Wire Humidity And Temperature Sensor For Greenhouse


Measuring range adjustment

0-5V 3 Wire Humidity And Temperature Sensor For Greenhouse


Ordering guide

KTH510——Output——Installation——Filter

Model Output Installation Filter
KTH510 4-20mA(2 wire) (E) Wall (W) PTFE (P)
4-20mA(3 wire) (F) Duct (D) Stainless (S)
0-5V/0-10VAD(3 wire) (G)
RS-485 (H)

0-5V 3 Wire Humidity And Temperature Sensor For Greenhouse

0-5V 3 Wire Humidity And Temperature Sensor For Greenhouse

FAQ

1 Q: What's the delivery time?

A: According to the specification and quantity of your order, generally 4

days for normal standard products within 10pcs.

2 Q:Are you manufacturer or trading company?

A: We are manufacturer with many years of experience.We have our

own factory.Welcome to visit our factory.

3 Q: Can we use our logo on the products?

A: Yes.We can provide OEM service.

4 Q: Do you have products with ex-proof certificate?

A: Yes,we can offer intrinsic-safety and flame proof certificates.

5 Q: What is the warranty of your products?

A: Normal is 12 months.

6 Q: What's the means of transport?

A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
