Automatic 2 Phase Starch Separator with Nozzle for Protein and Waste Water Separation
Automatic 2 Phase Starch Separator with Nozzle for Protein and Waste Water Separation
Automatic 2 Phase Starch Separator with Nozzle for Protein and Waste Water Separation
Automatic 2 Phase Starch Separator with Nozzle for Protein and Waste Water Separation
Specifications
Place of Origin :
China
Brand Name :
Peony
Certification :
ISO9001
Model Number :
PDSS10000
MOQ :
1 set
Packaging Details :
Standard export packing
Delivery Time :
60 days after deposit if without stock
Payment Terms :
TT. LC, Western Union
Supply Ability :
100 sets per month
Price :
USD17500-108500 FOB Shanghai
Product Name :
Automatic 2 Phase Starch Separator with Nozzle for Protein and Waste Water Separation
Discharging type :
Nozzle continually discharging
Bowl rotating speed :
4600rpm
Separation factor :
4726
capacity :
8～12m³/h
Motor power :
15KW,380V,50Hz
Operation :
Automatic continuous
MOC :
SS
Bearing :
SKF
Description

Automatic 2 Phase Starch Separator with Nozzle for Protein and Waste Water Separation

Description:

Model PDSS separator is mainly used in food industry, medical dye and chemical industry, for solid-liquid 2 phase separation, concentration, purification and recycling, it is also specially for protein separation in starch industry and waste water treatment in Environmental Protection.
The machine has the advantages of high efficiency, low material consumption, convenient operation and economic maintenance cost
The clear liquid is pumped out by centripetal pump, the concentration liquid is discharged continually by nozzles.
The machine is one kind of rotary machine with high speed, after accurate dynamic balancing, it can run for long time with low vibration, safety and security.
Automatic 2 Phase Starch Separator with Nozzle for Protein and Waste Water Separation

Main technical parameter:

Discharging type Nozzle continually discharging
Bowl rotating speed rpm 4600
Max diameter of bowl mm 350
Separation factor / 4726
capacity m³/h 8～12
Outlet pressure of clear liquid Mpa 0.05-0.15Mpa
Motor power kw 15KW,380V,50Hz
N.W. kg 812
export dimension of package L×W×H 1370mm×1340mm×1610mm
G.W. kg 1000

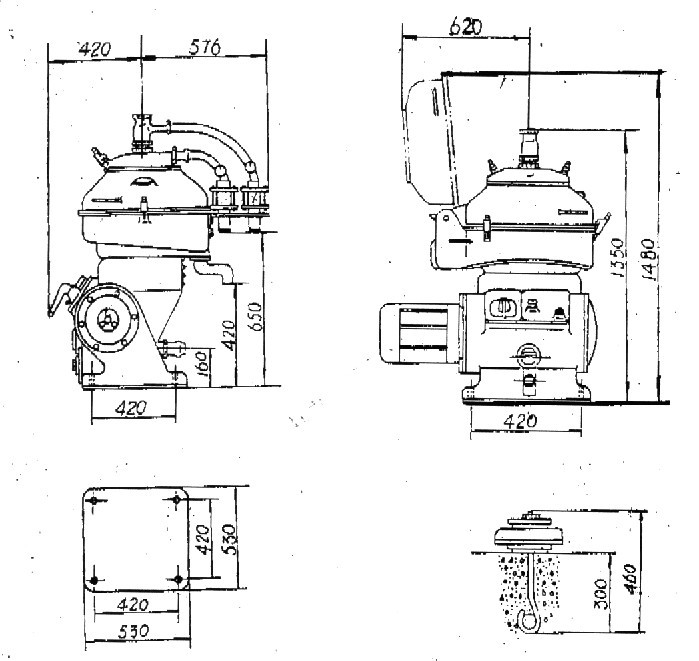

Overall and installation dimension diagram
Automatic 2 Phase Starch Separator with Nozzle for Protein and Waste Water Separation
Installation Notice
1. Take into consideration the enough space available to maintenance and repair separator before installation.
2. The foundation must be firm, plan and leveling.
3. All the pipes connecting with separator should be flexible.
4. The operation water of the separator must be soft water, the pressure of which is between 0.025MPa and 0.03MPa.
5. Separator and the outer pipe joints should use hoses, to prevent the separator and the outer pipe system resonance, and ensure the separator work normally.
Structure diagram of bowl
Automatic 2 Phase Starch Separator with Nozzle for Protein and Waste Water Separation
1. upper sealing cover 2.O-sealing ring 3.small lock ring 4.bowl cover
5. upper lock ring 6.O-sealing ring 7.discs 8. Distributor
9. O-sealing ring 10.Spray pipe cover 11. Spray pipe cover 12. Distributor cover
Separator structure diagram
Automatic 2 Phase Starch Separator with Nozzle for Protein and Waste Water Separation
1. Bowl 2. Vertical shaft 3. Machine base 4. Water pump 5. Level shaft 6. Brake unit
7. Speed test unit 8. Upper machine body 9. Machine cover 10. Liquid inlet and outlet
Separation principle
When separator running at rated condition, material into the disc through the distributor via feeding tube, under the action of the centrifugal force field, the solid particle with bigger specific gravity, it will receive a larger centrifugal force, and along the lower surface of the disc outward movement, gradually gathered around the drum inside wall.
Meanwhile, the rinse water from the end pump ejected from the nozzle tube, to dilute the accumulation material at the nozzle, to prevent block the nozzle, and wash the accumulation material, after washing the accumulation material ejected from the nozzle, and enter into the next process by discharge tube; the liquid with a smaller specific gravity, along the upper surface of the disc inward movement, enter into the centripetal pump, through the centripetal pump room, the kinetic energy of liquid is converted to static pressure, and discharge from the overflow pipe.
Reference Drawing:



Automatic 2 Phase Starch Separator with Nozzle for Protein and Waste Water Separation



Packing:


Automatic 2 Phase Starch Separator with Nozzle for Protein and Waste Water Separation

Guarantee:

Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time.
We are committed to reward you with a better quality in return for our interest in and faith toward.
We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.
