Planetary Gearbox Automatic Control Drilling Mud Centrifuge with Solid Bowl
Planetary Gearbox Automatic Control Drilling Mud Centrifuge with Solid Bowl
Planetary Gearbox Automatic Control Drilling Mud Centrifuge with Solid Bowl
Planetary Gearbox Automatic Control Drilling Mud Centrifuge with Solid Bowl
Planetary Gearbox Automatic Control Drilling Mud Centrifuge with Solid Bowl
Planetary Gearbox Automatic Control Drilling Mud Centrifuge with Solid Bowl
Planetary Gearbox Automatic Control Drilling Mud Centrifuge with Solid Bowl
Planetary Gearbox Automatic Control Drilling Mud Centrifuge with Solid Bowl
Specifications
Place of Origin :
China
Brand Name :
Peony
Certification :
ISO
Model Number :
PDC, PNX
MOQ :
1 set
Packaging Details :
Standard wooden case
Delivery Time :
75-90 days after down payment
Payment Terms :
TT,.LC, Western Union
Supply Ability :
60 sets per month
Price :
USD25000-100000/SET FOB Shanghai
Application :
Drilling mud, oil field
Operation :
Automatic continuous
Conveyor :
Tiled with hard alloy
MOC :
SS
Motor :
Double
Bearing :
SKF, NSK as optional
Control box :
With
Solid discharge :
360 degree
Description

Planetary Gearbox Automatic Control Drilling Mud Centrifuge with Solid Bowl


Competitive Advantages

  • Automatic continuous operation
  • 360 degree discharge
  • Water level adjustable
  • High efficiency and low power consumption
  • PLC control
  • Screw conveyor: tiled


Separation principle

Taking advantage of the principle that the light liquid, heavy liquid and solid phase, with different density and mutually insoluble in the mixed liquid, gain different sedimentation speed in the centrifugal force field or gravity force field, separating stratification or causing the solid particles in the liquid to deposit can be achieved.

Specifications

Model

Diameter
(mm)

Speed (rpm)

Length
(mm)

G-force

Capacity
(m3/h)

Main motor Power
(kw)

Assistant motor power
(kw)

Weight
(kg)

Overall Size
(L × W × H)
(mm)

PNX-414

355

4000

860

3175

1~10

22

7.5

2035

2765 × 920 × 1060

PDC-14

355

4000

1160

3175

1~15

22

7.5

2122

3065 × 920 × 1060

PNX-418

355

4000

1460

3175

1~25

22

7.5

2222

3365 × 920 × 1060

PDC-17-3

420

3600

1290

3042

1~20

22

7.5

2100

2931 × 990 × 1066

PDC-17-4

420

3600

1680

3042

2~35

22

7.5

2230

3331 × 990 × 1066

PDC-18-3.8

450

3500

1720

3080

4~40

37

11

3560

4100 × 1120 × 1239

PDC-18-4.4

450

3300

2000

2739

4~50

45

Hydraulic

3655

4000 × 1120 × 1239

PDC-20

500

3200

2000

2860

5~45

55

11

4213

4489 × 1160 × 1350

PDC-21

540

2800

2000

2366

5~50

55

15

5290

4587 × 1285 × 1368

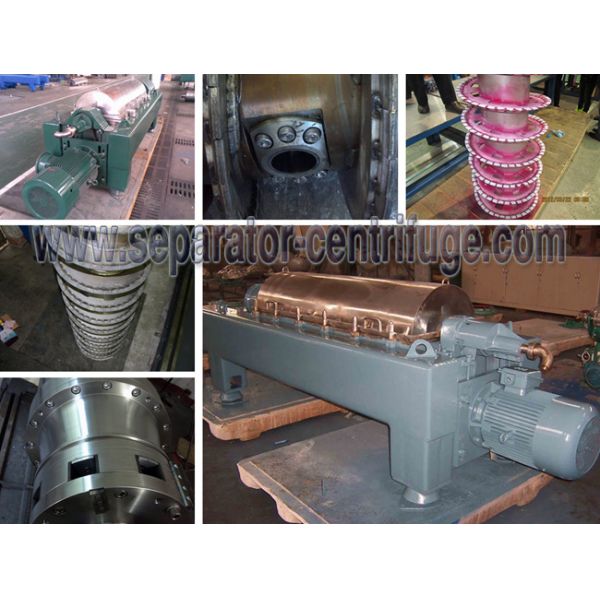

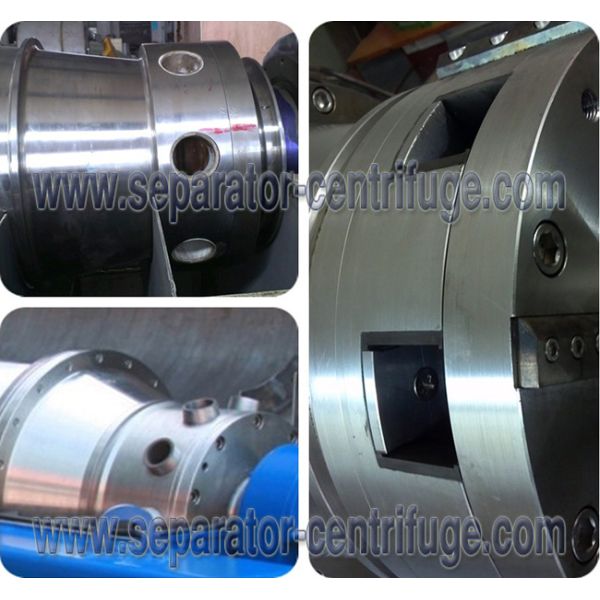

More pictures

Planetary Gearbox Automatic Control Drilling Mud Centrifuge with Solid Bowl
Planetary Gearbox Automatic Control Drilling Mud Centrifuge with Solid Bowl
Planetary Gearbox Automatic Control Drilling Mud Centrifuge with Solid Bowl


Guarantee

Peony Centrifuge is committed to producing high-quality machinery and equipment, as well as providing facility construction services. We aim to provide the best possible products while ensuring customer satisfaction. We believe in rewarding our customers with superior quality products in return for their trust and interest. Our team is dedicated to taking one more step forward by providing infinite services and a strong commitment to our customers.
