Specifications
Place of Origin :
China
Brand Name :
Peony
Model Number :
DHSY
MOQ :
1
Packaging Details :
Standard export packing
Delivery Time :
45days
Payment Terms :
TT,.LC
Supply Ability :
100sets per month
Certification :
ISO&CE
Type :
Disc
Operation :
Continuous
Operation phase :
3 phase
Model :
PDSY
Structure :
Afla Laval
Discharging type :
Part discharging
Effect :
Degum, de-soap and water washing
Capacity :
1500L~15000L
Application1 :
Refining of animal oil and vegetable oil
Application2 :
Methanol and Glycerine Separation
Description

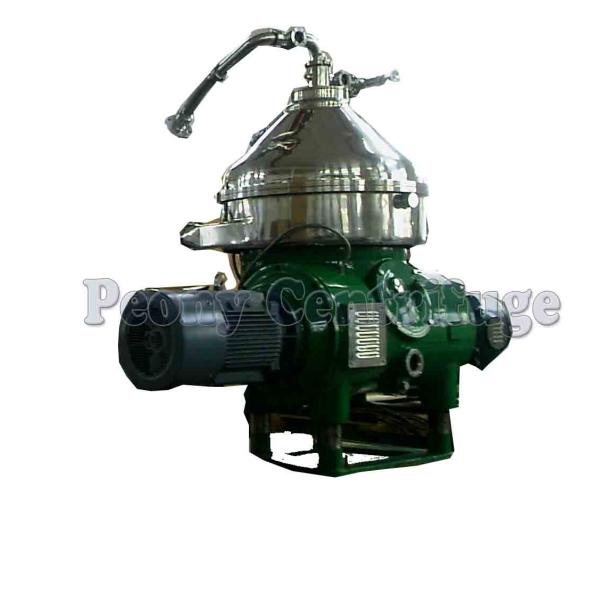

Low Noise Automatic Biodiesel Oil Separator Disc Stack

Centrifuges For Catalyst, Sap

Description

Bio-diesel oil is green reborn energy, which achieved by the reaction between alcohol (methanol, ethanol ) and fat crop like soy and rapeseed, fat forest fruit like oil palm and yellow wood, fat water vegetable like algae, and also animal fat, wasted edible oil.Bio-diesel oil is used as fuel, being excellent replacement for petroleum diesel oil.Bio-diesel oil is typical "green energy". Which good for the economy continuously developing, and has important strategic meaning at improving energy replacement, reducing environment pressure, controlling the atmospheric pollution.

Process flow diagram

Low Noise Automatic Biodiesel Oil Separator Disc Stack Centrifuges For Catalyst, Sap

Specification

Model

Capacity (l/h)

Input pressure (Mpa)

Output pressure (Mpa)

Motor power (kw)

Weight (kg)

Dimension

(LxWxH) (mm)

DHSY204

700-2000

0.05

0.1-0.25

4

408

810x850x1350

DHSY360

1200-2500

0.05

0.1-0.25

7.5

1280

1500x1150x1500

DHSY470

4000-7000

0.05

0.1-0.3

15

1880

1800x1200x1800

DHSY550

6000-15000

0.05

0.1-0.3

22

2200

1850x1550x2050

We could prive capacity from 60TPD to 420TPD

Centrifuges can be used in the following process stages in

virtually all of the following

1.Separation of methyl ester and glycerine/catalyst/sap/methanol

2.Washing of methyl ester

3.Separation of fatty acids from glycerine

4.Separation of salts from glycerine

Advantages

High speed,

stable operation,

fully closed of inlet and outlet system

Low noise

High oil rate,

Fully automatic control

Low Noise Automatic Biodiesel Oil Separator Disc Stack Centrifuges For Catalyst, SapLow Noise Automatic Biodiesel Oil Separator Disc Stack Centrifuges For Catalyst, Sap

Processing equipment

Low Noise Automatic Biodiesel Oil Separator Disc Stack Centrifuges For Catalyst, Sap

Guarantee

Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time.We are committed to reward you with a better quality in return for our interest in and faith toward.We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.
