Specifications
Place of Origin :
China
Brand Name :
Peony
Certification :
ISO9001&ISO14001,CE
Model Number :
PWC
MOQ :
1
Packaging Details :
Standard export packings
Delivery Time :
45 days
Payment Terms :
T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability :
30 sets/month
Name :
PWC Pusher Centrifuge
Solid% feeding :
25-75%
Moisture after separation :
around 3-4%
Material for process :
crystal like salt,CuSO4
particles requirements :
larger than 0.1mm
Description

PWC Pusher Centrifuge / Spiral Discharging Filtrating Equipment For Suspension Liquid



Description

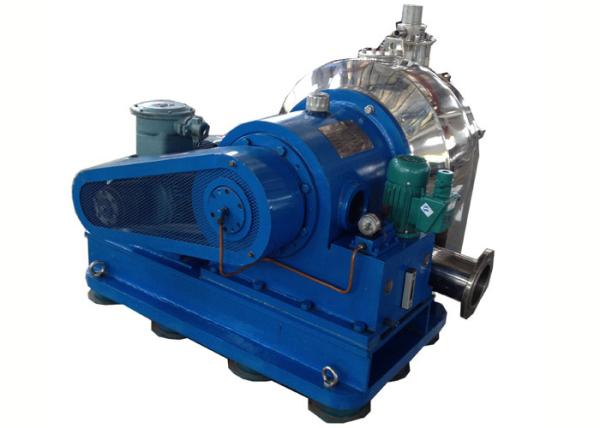

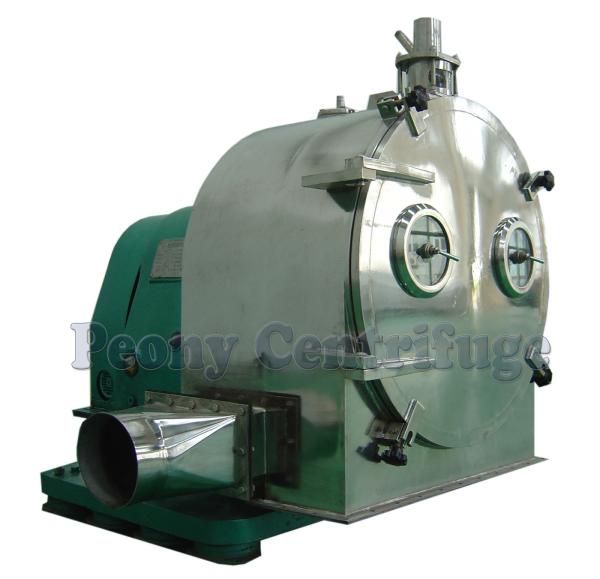

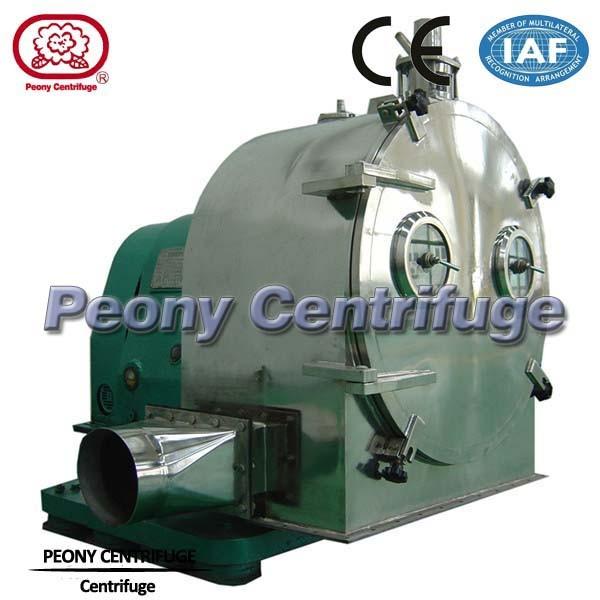

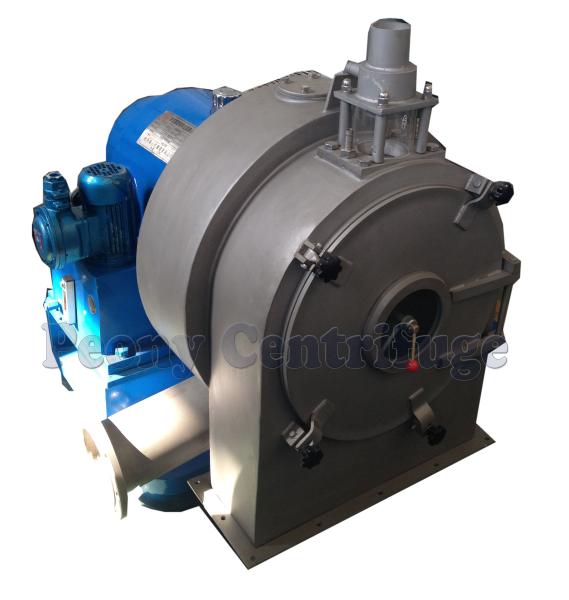

The PWC centrifuge model is a type of horizontal filtration equipment designed for continuous operation. It utilizes a rotating drum and helix that spin at high speeds in the same direction, but with a significant speed difference. The material being processed is continuously fed into the inner cylinder of the spiral feeder through a feeding pipe. Upon acceleration, the material enters the drum.

Inside the centrifuge, the centrifugal force field causes the liquid phase to pass through the filtering medium and exit the machine, while the solid-phase material is retained within the drum, forming the filter residue. Through the combined effect of the centrifugal force and the spiral feeder, the filter residue steadily moves towards the larger end of the drum. Eventually, it is discharged from the machine through the discharging trough.

Importantly, this machine is capable of performing continuous feeding, separation, washing, and discharging while operating at full speed. It offers several notable features, including a compact structure, minimal space requirements, uninterrupted operation, smooth performance, strong adaptability, high handling capacity, and low moisture content in the filter cake.



Applications

It is applicable to the separating of suspension liquid containing the solid-phase material with the granule size greater than 0.1 mm and concentration being 25! 75% or the separating of short fibers. It has found wide applications in such industries as chemical, salt making, alkali making, environmental protection, etc.

Specifications

Model

Drum

Motor power

(kw)

Weight

(kg)

Dimension

(L×W×H)

(mm)

Max dia

(mm)

Height

(mm)

Filter area

(m²)

Testing water

(m³/h)

Max speed

(r/min)

Max separating

factor

PWC-12

300

265

0.215

7.5

3000

1764

7.5

1250

910 × 1050 × 800

PWC-14

350

315

0.28

10

3000

1764

11

1400

1135 × 1590 × 1160

PWC-18

450

360

0.44

15

2400

1452

22

2200

1340 × 1820 × 1320

PWC-22

560

345

0.55

20

2000

1255

30

3380

1535 × 1820 × 1455

PWC-25

630

400

0.71

25

1800

1143

37

3800

1690 × 2000 × 1470
