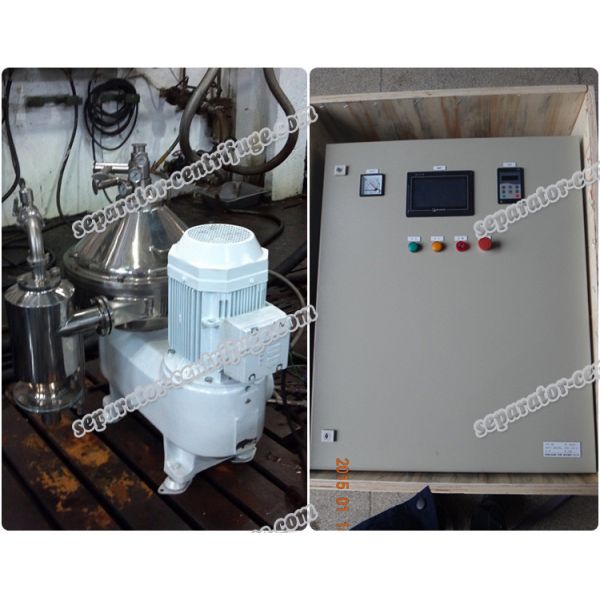

High Speed Automatic Centrifugal Separator for Cold Pressed VCO Extraction
High Speed Automatic Centrifugal Separator for Cold Pressed VCO Extraction
High Speed Automatic Centrifugal Separator for Cold Pressed VCO Extraction
High Speed Automatic Centrifugal Separator for Cold Pressed VCO Extraction
Specifications
Brand Name :
Peony
Model Number :
PDSC-204SD
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD32000/SET FOB SHANGHAI
Payment Terms :
TT,.LC, Western Union
Supply Ability :
100 sets per month
Delivery Time :
60-90 days after down payment
Packaging Details :
Standard export packing
Application :
Coconut oil extraction
Capacity :
800-1000/h
RPM :
11200rpm
Starting Mode :
Friction Startup
N.W. :
730kg
Operation :
Automatic continuous
MOC :
0Cr13 + SS304
Product Name :
High Speed Automatic Centrifugal Separator for Cold Pressed VCO Extraction
Description

High-Speed Automatic Centrifugal Separator for Cold Pressed VCO Extraction

Structure Features:


The material of the drum body, drum cover, and the valve is high strength stainless steel, the Moc of other parts are all high quality, anti-corrosion SS304, the separator shell employ SS304.

Drive structure support uses SKF bearing, by employing optimal design to reduce the height of the drum’s center of gravity. It can effectively lower the vibrational level of the whole separator, improve the reliability of the equipment, and increase the stability of the separator.

In the dismounting and maintenance, the parts of the drum can be hoisted integrally, thus make the dismounting of the main lock ring more convenient, saving both time and labor, easy to install the drum.

The separator runs supercurrent, it will send warning signals and be stoped if the machine overload, to make the separator runs safely.

The separator has less vibration and more stability through the price dynamic balance of the drum.

The separator adopts separation factor technology. It can separate product that is hard to separate, meanwhile, the machine has light volume and use the small volume to get big capacity and high separation efficiency.

The separator adopts an advanced belt drive, improving the reliability and maintainability of the separator, and decreasing the cost of spare parts.

High Speed Automatic Centrifugal Separator for Cold Pressed VCO Extraction
Main Technical Specification:
Capacity500-1000/h
RPM11200rpm
Outlet pressure of the clear liquid≤0.2MPa
Pressure of feeding≤0.2MPa
Starting ModeFriction Startup
Driving ModeBelt Drive
N.W730kg
The dimension of Package (L*W*H)1200X810X1300mm
MotorPower15kW



Dimensions:
High Speed Automatic Centrifugal Separator for Cold Pressed VCO Extraction
Value Analysis:

1. Peony adopts SKF bearing, which is consistent with Alfa, Westfalia.
2. Alfa and Westfalia only provide clients with the bearing and the gear in the overhaul package(need to buy separately) while Peony has a more sufficient attachment supply.

3. Peony never reduces the number of spare parts and tools for users buying many sets of the same model machine. (unless the customer put forward in specially).

4. Regular spare parts are all in stock in Peony’s company.
High Speed Automatic Centrifugal Separator for Cold Pressed VCO Extraction




Our service:

1. 12 months guarantee period from machine arriving date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated in priority.
9. Marketing team will visit you during our visit to your country if you require it.

High-Speed VCO Extraction Disc Separator.pdf
