Specifications
Brand Name :
Peony
Model Number :
PDSD14000
Certification :
CE / ISO
Place of Origin :
China
MOQ :
1
Supply Ability :
500sets/ month
Delivery Time :
20-60 days
Packaging Details :
standard export wooden package
Payment Terms :
D/A, D/P, Western Union, L/C, T/T, MoneyGram
Description :
Land Power Station Used 14000LPH Disc Stack Separator Centrifuge
Application :
DO,FO,LO ,Waste oil treatment
Model name :
PDSD14000
Discharge :
Automatic Discharge
Description

Industrial Disc Stack Separator Centrifuge Module For Fuel Oil and Land Power Station

Product overview:

Model PDSD14000 separator is mainly used to remove water and mechanical impurities from diesel oil, lubricating oil and other mineral oil in marine diesel engine unit and land-used diesel generator unit of power station so as to reduce wear of the diesel engine and other machine, and prolong engine life. The model is also used to separate two unsolvable liquids with different specific gravity or remove small amount of solid particle from liquid.


The machine has the advantages of high efficiency, low oil consumption, convenient operation and economic
maintenance cost.The clear oil and dirty water are let out freely, the sludge is discharged manually.

The machine is one kind of rotary machine with high speed, After accurate dynamic balancing, it can run for long time
with low vibration, safety and security.
The design, product and acceptance are conformed to the standard of GB/T5745 “Marine Disc Separator”.

Advantage:

1.Manual type slag removal unit

2.Modular design

3.Automatic control

Technical parameter:

Discharging type

Full discharge

Max capacity

L/h

14000

Motor power

Kw

11-15

N.W.

kg

730

Packing Dimension

L × W × H (mm)

1200*810*1225



Other oil capacity reference chart

oil types

fuel oil

lubrication oil

fuel oil

heavy fuel oil

SAE30,40

detergence oil

steam turbine oil

kinematical viscosity(mm2/s)

1.9-5.5

5.5-24

120

180

380

100-120

61.2-74.8

40°C

50°C

40°C

40°C

density/(kg/m3)(20°C)

less than 900

900-991

880-900

less than 900

separating temperature

(°C)

normal temperature,40-60best

90-98

80-95

recommended capcity

(l/h)

17500

14000

7700-8400

6300-7000

4900-5600

7000-8400

3500-4200

11200-11900


Relation application:

Industrial Disc Stack Separator Centrifuge Module For Land Power Station

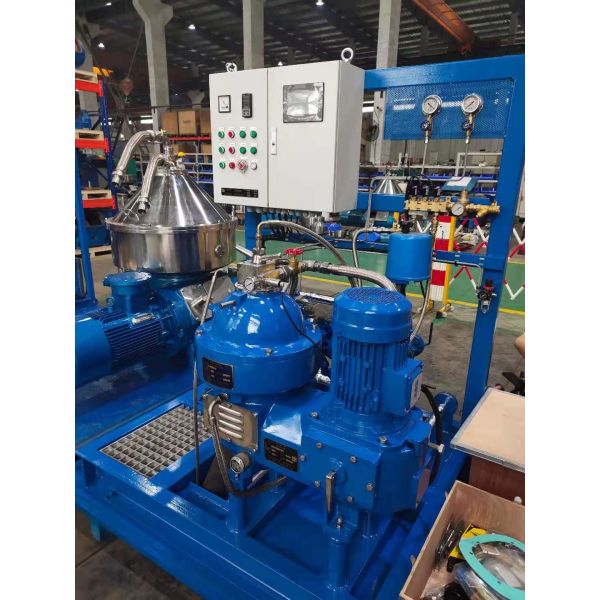

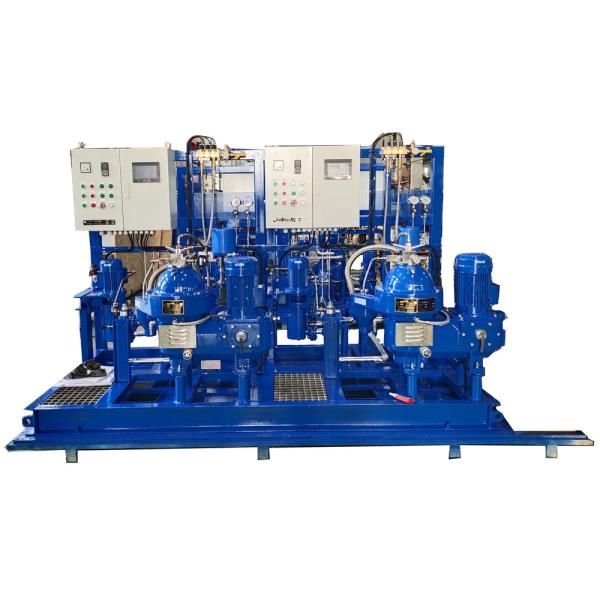

Pictures:

Industrial Disc Stack Separator Centrifuge Module For Land Power Station

Industrial Disc Stack Separator Centrifuge Module For Land Power Station
