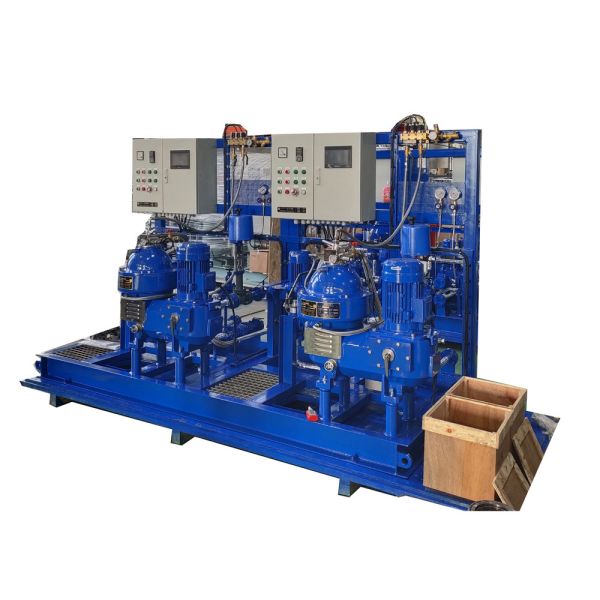

Self Discharge Fuel Oil Separator Centrifuge Machine Automatic Control Belt Drive
Self Discharge Fuel Oil Separator Centrifuge Machine Automatic Control Belt Drive
Self Discharge Fuel Oil Separator Centrifuge Machine Automatic Control Belt Drive
Self Discharge Fuel Oil Separator Centrifuge Machine Automatic Control Belt Drive
Self Discharge Fuel Oil Separator Centrifuge Machine Automatic Control Belt Drive
Self Discharge Fuel Oil Separator Centrifuge Machine Automatic Control Belt Drive
Self Discharge Fuel Oil Separator Centrifuge Machine Automatic Control Belt Drive
Self Discharge Fuel Oil Separator Centrifuge Machine Automatic Control Belt Drive
Specifications
Brand Name :
Peony
Model Number :
PDSD14000
Certification :
CE / ISO
Place of Origin :
China
MOQ :
1
Supply Ability :
500sets/ month
Delivery Time :
20-60 days
Packaging Details :
standard export wooden package
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Description :
Oil separator
Application :
DO,FO,LO ,Waste oil treatment
Power consumption :
2.2kw
Model name :
PDSD14000
Discharge :
Self discharge
Description

High Performance Fuel Oil Separator Centrifuge Machine Automatic Control

Product overview:

Model PDSD14000 separator is mainly used to remove water and mechanical impurities from diesel oil, lubricating oil and other mineral oil in marine diesel engine unit and land-used diesel generator unit of power station so as to reduce wear of the diesel engine and other machine, and prolong engine life. The model is also used to separate two unsolvable liquids with different specific gravity or remove small amount of solid particle from liquid.


The machine has the advantages of high efficiency, low oil consumption, convenient operation and economic maintenance cost.The clear oil and dirty water are let out freely, the sludge is discharged manually.

The machine is one kind of rotary machine with high speed, After accurate dynamic balancing, it can run for long time with low vibration, safety and security.


The design, product and acceptance are conformed to the standard of GB/T5745 “Marine Disc Separator”.

Advantage:

1.Manual type slag removal unit

2.Modular design

3.Automatic control

Technical parameter:

Discharging type

Manual discharging
Max capacity L/h 14000
Motor power Kw 11-15
N.W. kg 730
Installation dimension L × W × H (mm) 1200x810x1225

Other oil capacity reference chart

oil types

fuel oil

lubrication oil

fuel oil

heavy fuel oil

SAE30,40

detergence oil

steam turbine oil

kinematical viscosity(mm2/s)

1.9-5.5

5.5-24

120

180

380

100-120

61.2-74.8

40°C

50°C

40°C

40°C

density/(kg/m3)(20°C)

less than 900

900-991

880-900

less than 900

separating temperature

(°C)

normal temperature,

40-60best

90-98

80-95

recommended capcity

(l/h)

17500

14000

7700-8400

6300-7000

4900-5600

7000-8400

3500-4200

11200-11900
