Automatic Large Capacity Pusher Centrifuge For Industrial Salt Production
Automatic Large Capacity Pusher Centrifuge For Industrial Salt Production
Automatic Large Capacity Pusher Centrifuge For Industrial Salt Production
Automatic Large Capacity Pusher Centrifuge For Industrial Salt Production
Automatic Large Capacity Pusher Centrifuge For Industrial Salt Production
Automatic Large Capacity Pusher Centrifuge For Industrial Salt Production
Automatic Large Capacity Pusher Centrifuge For Industrial Salt Production
Automatic Large Capacity Pusher Centrifuge For Industrial Salt Production
Automatic Large Capacity Pusher Centrifuge For Industrial Salt Production
Automatic Large Capacity Pusher Centrifuge For Industrial Salt Production
Automatic Large Capacity Pusher Centrifuge For Industrial Salt Production
Automatic Large Capacity Pusher Centrifuge For Industrial Salt Production
Specifications
Brand Name :
Peony
Model Number :
PP
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
60 sets/month
Delivery Time :
60-90 days after down payment
Packaging Details :
Standard export packings
Price :
USD24800-125000/set FOB Shanghai
Application :
Liquid-solid separation
Suitable for :
Salt dewatering, solid 40-60% the best
Technique :
Sulzer Echer Wyss
MOC :
SS316L, DSS， SS304
Bearing :
SKF
Control box :
With
Moisture after separation :
2%-4%
Product Name :
Salt Centrifuge
Description

Automatic Large Capacity Pusher Centrifuge For Industrial Salt Production​​

Brief introduction:

The Model PP Two-stage Pusher Centrifuge is a type of perforated basket centrifuge that is both continuous and effective. It is capable of continuously dewatering and washing slurry with crystals and fiber larger than 50 microns. This machine has successfully separated over 200 different kinds of products, such as sodium salt, ammonium salt, PVC, EPS, etc.

The machine is designed reasonably and manufactured accurately. All parts that come in contact with the material being processed are made of high corrosion-resistant special stainless steel with extremely low carbon content and high content of molybdenum or any other stainless steel that the customer requires. The machine has several advantages such as:

- Bearing design life: ≥30,000 hours

- Mechanical seal design life: ≥8,000 hours

- Machine design life: ≥15 years

- Running time under normal operating conditions: guaranteed for over 6000 hours every year

Automatic Large Capacity Pusher Centrifuge For Industrial Salt Production

Technical Parameters of PP-40

Equipment

2-stage pusher centrifuge

Spec.

PP-40

Qty

set

Technical parameters

1

Basket diameter

290/360 mm

2

Basket Rotate Speed (Max)

2500r/min

3

Stroke of Pusher Mechanism

40-80times/min

4

First, second stage mesh aperture (as per the material)

mm, mm

5

Separation Factor

586-728

6

Main motor

Spec/Power

11-15KW

Installation type

Horizontal

Protection class

IP54/F1

Electrical power

3 phase 380V/50Hz AC

7

Oil pump motor

Spec/Power

5.5-7.5KW

Installation type

Horizontal

Protection class

IP54/F1

Electrical power

3 phase 380V/50Hz AC

8

Oil pump

Spec.

NB4C100F

outflow

100ml/turn

Maximum pressure

2.5Mpa

9

Overall size

2346mm×1090mm×1006mm

10

Weight

2600kg

11

Shell type

open

12

Output

3T-5T/h(sea salt)

13

Moisture content after separation:

3-4%(sea salt)

14

Object processed

Mineral salt/Sea salt

Technical Parameters of PP-50

Equipment

2-stage pusher centrifuge

Spec.

PP-50

Qty

set

Technical parameters

1

Basket diameter

438/500 mm

2

Basket Rotate Speed (Max)

2000rpm

3

Stroke of Pusher Mechanism

40-80times/min(can be adjusted)

4

First, second stage mesh aperture (as per the material)

mm, mm

5

Separation Factor

1119

6

Main motor

Spec/Power

45KW

Installation type

Horizontal

Protection class

IP54/F1

Electrical power

3 phase 380V/50Hz AC

7

Oil pump motor

Spec/Power

22KW

Installation type

Horizontal

Protection class

IP54/F1

Electrical power

3 phase 380V/50Hz AC

8

Oil pump

Spec.

SNE/A280

outflow

480ml/turn

Maximum pressure

2Mpa

9

Overall size

3660mm×1420mm×2078mm

10

Weight

4400kg

11

Shell type

open/seal(can be select)

12

Output

≥12T/h(sea salt)

13

Moisture content after separation:

4%(sea salt)

Technical Parameters of PP-60

Equipment

2-stage pusher centrifuge

Spec.

PP-60

Qty

set

Technical parameters

1

Basket diameter

560/630 mm

2

Basket Rotate Speed (Max)

1360 r/min

3

Stroke of Pusher Mechanism

70-80 times/min

4

First, second stage mesh aperture (as per the material)

mm, mm

5

G-force

570-642

6

Main motor

Spec/Power

55KW

Installation type

Horizontal

Protection class

IP54/F1

Electrical power

3 phase 380V/50Hz AC

7

Oil pump motor

Spec/Power

30KW

Installation type

Horizontal

Protection class

IP54/F1

Electrical power

3 phase 380V/50Hz AC

8

Oil pump

Spec.

NB5D140F

outflow

140ml/turn

Maximum pressure

8Mpa

9

Overall size

3127mm × 1700mm × 1955mm

10

Weight

4860kg

11

Shell type

open

12

Output

≥15T/h (Mineral salt)

13

Moisture content after separation:

≤3%

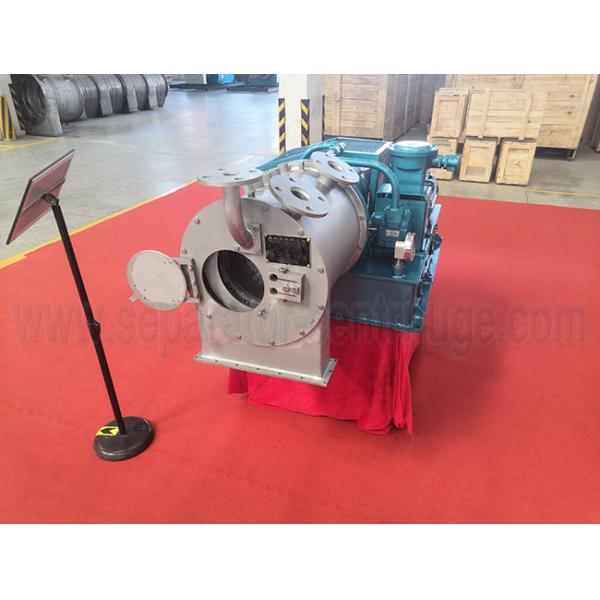

More Pictures:

Automatic Large Capacity Pusher Centrifuge For Industrial Salt Production

Automatic Large Capacity Pusher Centrifuge For Industrial Salt Production

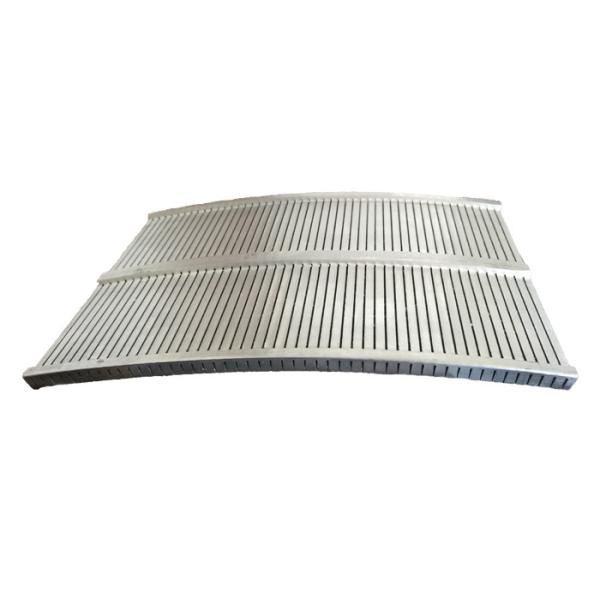

Sieve Segment for Pusher Centrifuge:

Automatic Large Capacity Pusher Centrifuge For Industrial Salt ProductionAutomatic Large Capacity Pusher Centrifuge For Industrial Salt Production

Automatic Large Capacity Pusher Centrifuge For Industrial Salt Production

Guarantee:

Peony Centrifuge is dedicated to producing high-quality machinery and equipment, as well as providing construction services for facilities. We constantly strive to achieve the best quality and produce the best products possible. Our commitment to our customers is to provide better quality products in return for their trust and loyalty. We will continue to work tirelessly to make progress and provide excellent service to our customers.
