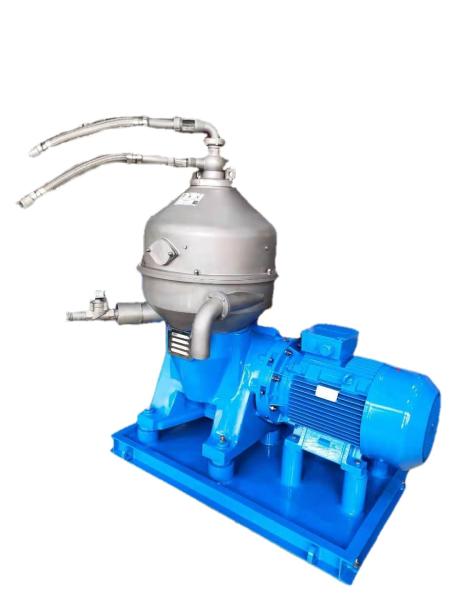

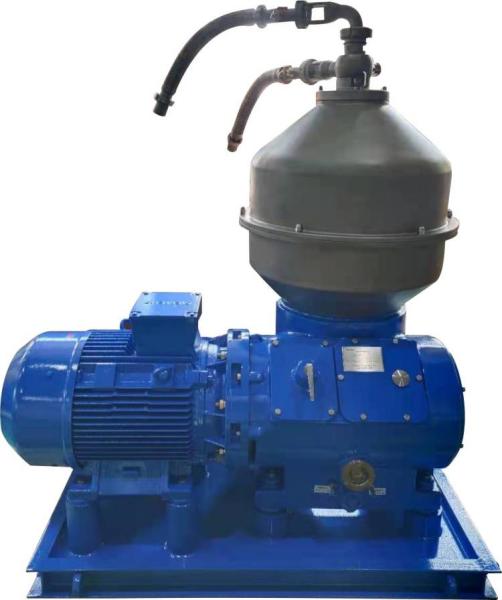

PDSP-15000 Palm Oil 3 Phase Oil Solid Bowl Disc Centrifuge For Crude Oil Extracting

Working Principle

Advantages

1. Inverter start-up

2. El.magnetic brake

3. Short stopping-and long effective separating time

4. Large treatment capacity

5. Good separating efficiency

More Introduce

FEED AND DISCHARGE

Through an enclosed line system the latex will be fed into initial container of the separator;the liquid level maintains constant by means of floating.Feeding rate can be adjusted by raising or lowing the floating.

FRAME,HOOD AND DRIVE

The frame of separator is equipped with magnetic brake,machine brake tachometer for control the speed of bowl and level inspection glass. The separator is driven by motor installed by means of friction pad and power transferred to bowl through

centrifugal friction clutch. All bearing and gears are flush lubrication used oil from oil groove on the frame.The hood is fixed on the frame by four turning press unit,feeder unit with floating fixed on initial container of top of hood by adjustable

press unit.

MAGNETIC BRAKE

Magnetic brake that installed on upper section of frame consists of six magnetic coils.It can brake bowl in

short time(≤four mins).

Acting of the brake indicated by pilot light,the bowl also can be broken with machine brake during power

broken.The acting of machine brake is upon horizontal axes.

After sales

*12 months guarantee period from machine arriving date.
*Abundant spare parts in stock are availble to provide.
*Our technicians could be dispatched for overseas service.
*7*24 hours technical consultation.
*Your workers could get trained both in our factory and yours.
*Routine tracing till the machine work properly will be done timely.
*We will remind you to do the normal maintenance.
*Your suggestions or any comments & reflection would be treated in priority.
*Marketing team will visit you during our visit to your country if you require.

PDSP-15000 Palm Oil 3 Phase Oil Solid Bowl Disc Centrifuge For Crude Oil Extracting
