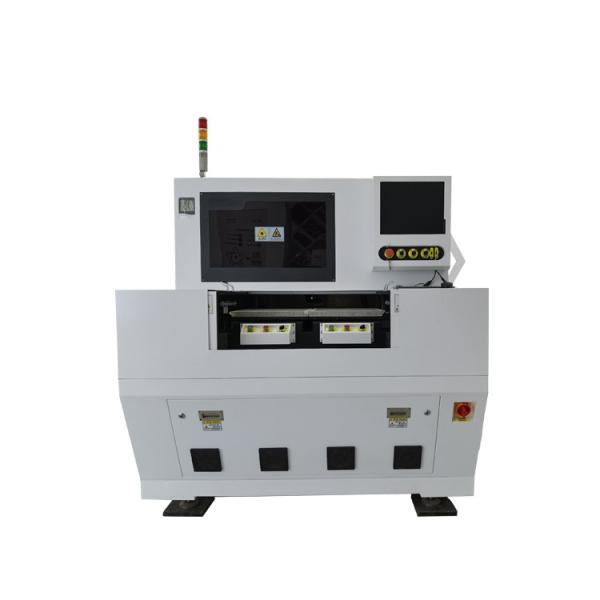

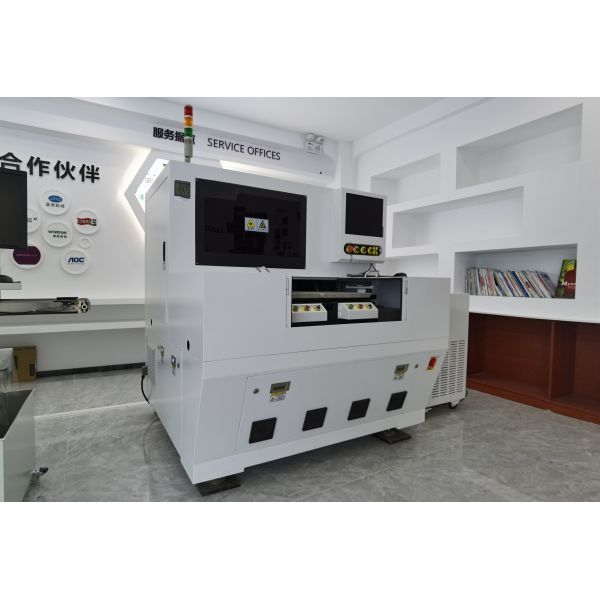

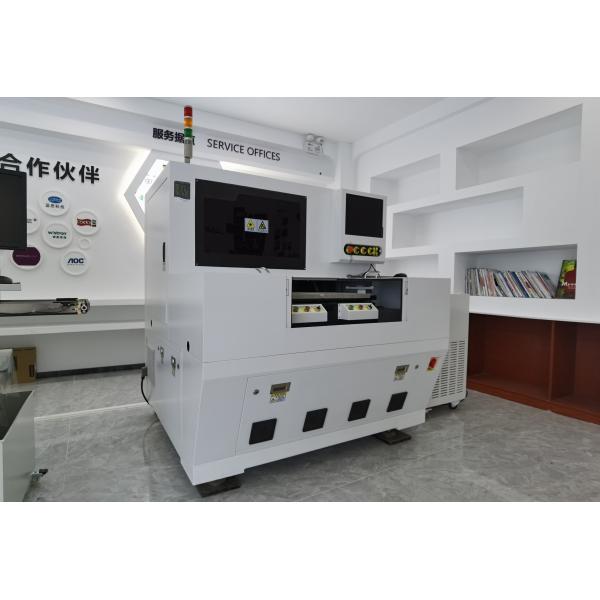

Industrial 1.6mm UV PS PCB Laser Cutting Machine Aluminum PCB Laser Cutter
Industrial 1.6mm UV PS PCB Laser Cutting Machine Aluminum PCB Laser Cutter
Industrial 1.6mm UV PS PCB Laser Cutting Machine Aluminum PCB Laser Cutter
Industrial 1.6mm UV PS PCB Laser Cutting Machine Aluminum PCB Laser Cutter
Specifications
Brand Name :
Seprays
Model Number :
ZMLS5000DP
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD2000-90000
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 sets per Month
Delivery Time :
30-45 days
Packaging Details :
Vacuum packed in wooden cases
Machine Name :
PCB Laser Cutting Machine
Type :
ZMLS5000DP
Machine Size :
1680*1650*1800mm
Product Weight :
2000KG
Voltage :
Single Phase AC220V/3KW
Laser source :
PS Laser/NS Laser
Processing size :
650mm*650mm
Laser power :
15W/20W （Optional）
Description

Industrial UV PS PCB Laser Cutting Machine Aluminum PCB Laser Cutter

Industrial Laser Cutting Machine Aluminum Laser Cutting Machine With UV Laser

PCB Laser Cutting Machine Description:

1. with control software with independent intellectual property rights, user-friendly interface, complete functions, simple operation;
2. can process any graphics, cutting different thicknesses and different materials can be processed and the synchronization is complete hierarchical; optical system design optimization to ensure high beam quality, reduce the focused spot size, to ensure precision;
3. using high-performance UV laser with wave length, high beam quality, higher peak power characteristics. Due to ultraviolet light through decomposition, vaporization rather than melting materials processing to achieve, so almost no post-processing glitches, small thermal effect, no points
Layer, the effect of cutting precision, smooth, steep sidewalls.
4. using vacuum fixed sample, no mold protection plate is fixed, convenient, improve processing efficiency.
5. can cut a variety of substrate materials, such as: silicon, ceramic, glass and the like.
6. automatic correction, automatic positioning function, multi-plate cutting, automatic thickness measurement and compensation, motor Bank and compensation, working better uniformity and small machining depth fluctuations, higher processing efficiency of complex graphics.
FPC UV laser cutting machine, FPC laser cutting machine Technical parameters:
Solid-state UV laser source laser wavelength: 355nm

PCB Laser Cutting Machine Specification
Item

PCB Laser Cutting Machine

ZMLS5000DPIndustrial 1.6mm UV PS PCB Laser Cutting Machine Aluminum PCB Laser Cutter
Machine size(L*W*H) 1680*1650*1800mm
Weight 2000KG
Power supply Single Phase AC220V/3KW
Laser source PS Laser/NS Laser
Laser power 15W/20W (Optional)
Material thickness ≦1.6mm (According to material)
Whole machine precision ±20 μm
positioning precision ±2 μm
Repeat precision ±2 μm
Processing size 350mm*450mm*2
Focus spot diameter 20 ± 5 μm
Environment temperature/humidity 20±2 °C/<60%
Machine tool body Marble
Galvanometer system Original imported
Motion controlling system Original imported
Formats Gerber,DXF, ASCII, Excellon I and II, sieb&Meier
Necessary hardware and software Including PC and CAM software
Working mode Manual loading and unloading

Fully automatic positioning: the use of high-precision CCD automatic positioning, focusing, so that the positioning fast, accurate and high precision, without manual intervention, simple operation, to achieve the same type of one-button mode, greatly improve the production efficiency.


Waste gas treatment system: suction system can eliminate all cutting waste gas, avoid the harm to the operator and environmental pollution.

Industrial 1.6mm UV PS PCB Laser Cutting Machine Aluminum PCB Laser Cutter
