Specifications
Brand Name :
Seprays
Model Number :
ZM10T
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
USD1500-32000
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 pcs per Month
Delivery Time :
30-45 days
Packaging Details :
Vacuum packed in wooden cases
Dimensions(mm) :
830*730*2100MM
Weight :
530KG
Shape :
Vertical
Color :
White
Voltage :
AC220V 200W
Working Pressure/Pipe Dia. :
》0.6MP /6mm
Minimum distance of part from cutting position :
≥＝0.5mm
Max.Cutting Length :
300*360mm / 300*360mm / 350*600mm(Can customized larger size)
Description

Lower Die Automatic Entry FPC PCB Punching Machine With Exited Slitting Method

Lower Die Automatic Entry & Exited Slitting Method PCBA/FPC Punching Machine ZM10T

Feature:

1.High Efficiency. FPCs can be divided into 6 to 8 pieces in one minute.

2.The surface of the product is flat and uniform.

3.Low noise, no dust, thus reducing environment pollution.

4.Low Energy, the main power of consumption is compressed air.

5.Low labor intensity for employee.

6.Adopt the lower die automatic entry and exit slitting method, which is protected by both grating and safety door. The operator is very safe to operate it.

1. Machine Exterior Sepecifications Machine Name FPC Punch Cut Machine
Model ZM10T
Outsize 830*730*2100MM
Shape Vertical
Weight 530KG
Color Computer White
2. Machine Supply Requirements Power Supply AC220V 200W
Enviroment Required Clean and dry environment ,Avoid moisture or high temperature environment

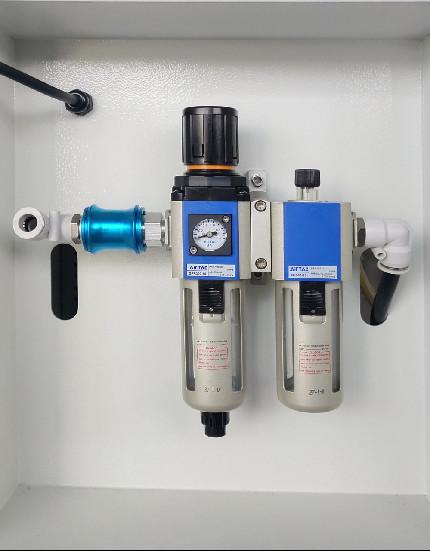

Working Pressure/Pipe Dia. >0.6MP /6mm
Minimum distance of part from cutting position ≥＝0.5mm
Max.Cutting Length 300*360mm / 300*360mm / 350*600mm(Can customized larger size)
FPC Cutting Position Don’t allow components to cross above the cutting position
Position Hole Required FPC has4 holes at least and extra one foolproof hole
Max.height of the FPC Components Obverse max.height is: 20mm front max.height is 35mm
3. Machine Software Part PLC Mitsubishi/Zhongyan PLC
Paramenters Setting Can set the punch cut times through touch screen,and the maintenance time of the cutter time etc.
Storage Module Can store 50 sets of programs
Operating System Chinese and English operation interface
Touch Screen WEINVIEW 7inch Touch Screen
Fiber Optic Sensor Daochuan Sensor
