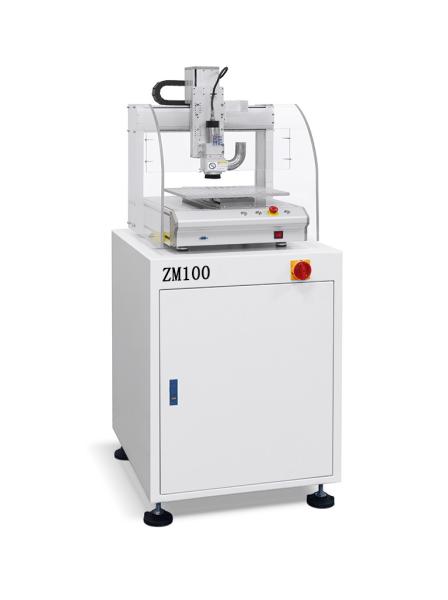

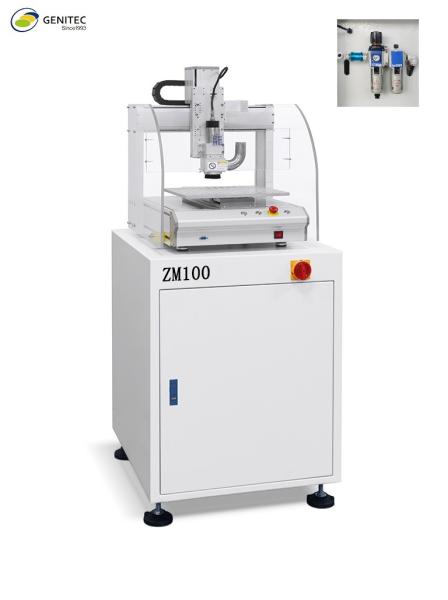

Genitec PCB Desktop Router Machine for Prototype ZM100
Genitec PCB Desktop Router Machine for Prototype ZM100
Genitec PCB Desktop Router Machine for Prototype ZM100
Genitec PCB Desktop Router Machine for Prototype ZM100
Specifications
Brand Name :
Genitec
Model Number :
ZM100
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
1 set
Price :
USD1500-10000
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 Sets per Month
Delivery Time :
5-45 days
Packaging Details :
Vacuum packed in wooden cases
PCB Size :
330mm* 280mm
X,Y Axis Cutting Speed :
0~100mm/s
Machine Precision :
±0.01mm
Z Axis Route :
50mm
X, Y, Z Control Method :
Adopts Card and Manual Editor
X, Y, Z Drive Method :
Stepping Servo Motor
Cutting Precision :
±0.1mm
Dust Collector :
Upper Dust Collector
Spindle Speed :
MAX40000rpm
Programme 1 :
Whole PCB Scanning Function
Programme 2 :
Offline Program Function
Description

Genitec We are PCB separator expert. We provide PCB depaneling total solution.


Genitec founded in Taiwan in 1993. We have two factories for over 20000 square meters.


We produce most kind of PCB separator. Including PCB router, laser PCB separator, V-cut,

PCB/FPC punching machine.


If you have any project about PCB depaneling, welcome your inquiry, we will provide you solution.

Genitec PCB Desktop Router Machine for Prototype ZM100

Feature

Design for small quantity or prototype production depaneling.

With upper dust collector.

Small size, can be inline use.

Provide customized service.

Uses a high-speed spindle to drive the milling bit to cut the PCBs according to the design route;

Provide customer with a high-performance,high-security,high-stability industrial equipment platform

(High-precision integrated motion control card,stepping motor,precision slide rail) simple operation;

Suitable for the division of puzzles and semi-finished products;

With high-intensity dust collection system,keep PCB and working surface clean.

Genitec PCB Desktop Router Machine for Prototype ZM100

Some advantage

(1) The cutting stress is smaller,about 1/10 of the punching type,and 1/100 of the hand-held,so as to prevent chis such as

ceramic capacitors from being damaged during the cutting process;

(2) A variety of shapes such as straight lines and arc lines can be cut on the PCB, so the PCB design are greatly increased.

(3) The cutting precision is high,and the cutting surface is smooth without burrs,which meets the customer’s needs for

high-quality production technology.

(4) Replaces manual cutting method/ V-CUT/Punch cutting ,depaneling PCB with high-speed spindle,

will not cause damage to the components on the PCB,the cutting surface is flat,no burrs and the product production is improved.

(5) Powerful upper suction filter dust collection device ,cleanly solve the problem of cutting dust.

(6) Fully-enclosed machine,which automatically puts products in and out by fixtures to protect the operator’s safety.

(7) Grinding ball screw and linear slide.

(8) Equipped with the teaching function of handle positioning operation point.

(9) Specifications can be made according to customer requirements.

Genitec PCB Desktop Router Machine for Prototype ZM100
PCB Size
330mm* 280mm
X,Y Axis Cutting Speed
0~100mm/s
Machine Precision
±0.01mm
Z axis Route
50mm
X,Y,Z Control Method
Adopts Card and Manual Editor
X,Y,Z Drive Method
Stepping Servo Motor
Cutting Precision
±0.1mm
Spindle Speed
MAX40000rpm
Machine Voltage
220V 50/60HZ
Power Consumption
1KVA
Dust Collector
Upper Dust Collector
Dust Collector Voltage
380V2HP
Separator Outside Size
550mm*550mm*550mm
Dust Collector Outside Size
680mm*400mm*900mm
