Wall Mount Server Rack Cabinet Static Loading 60kg With Assistant Profile
Wall Mount Server Rack Cabinet Static Loading 60kg With Assistant Profile
Wall Mount Server Rack Cabinet Static Loading 60kg With Assistant Profile
Wall Mount Server Rack Cabinet Static Loading 60kg With Assistant Profile
Wall Mount Server Rack Cabinet Static Loading 60kg With Assistant Profile
Wall Mount Server Rack Cabinet Static Loading 60kg With Assistant Profile
Wall Mount Server Rack Cabinet Static Loading 60kg With Assistant Profile
Wall Mount Server Rack Cabinet Static Loading 60kg With Assistant Profile
Wall Mount Server Rack Cabinet Static Loading 60kg With Assistant Profile
Wall Mount Server Rack Cabinet Static Loading 60kg With Assistant Profile
Wall Mount Server Rack Cabinet Static Loading 60kg With Assistant Profile
Wall Mount Server Rack Cabinet Static Loading 60kg With Assistant Profile
Wall Mount Server Rack Cabinet Static Loading 60kg With Assistant Profile
Wall Mount Server Rack Cabinet Static Loading 60kg With Assistant Profile
Specifications
Place of Origin :
Zhejiang, China (Mainland)
Brand Name :
LE or OEM
Model Number :
WS3
Supply Ability :
1000 Piece/Pieces per Week Wall Mounted Cabinet
Packaging Details :
Assembly packing or flat packing.
MOQ :
50 Piece/Pieces
Price :
Negotiable
Cabinet Standard :
IEC297-2
Size :
Customized
Color Serial :
Ral9004; Ral9005; Ral7035
Height :
4U-18U
Loading Capacity :
Static Loading: 60kg
Degree of protection :
IP20
Description

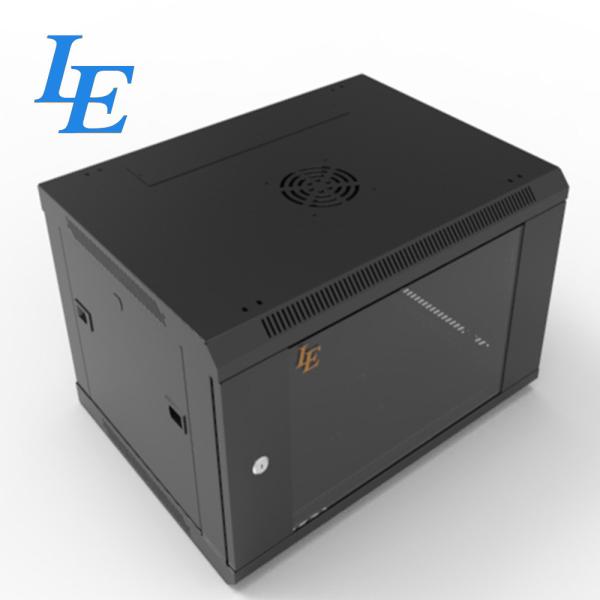

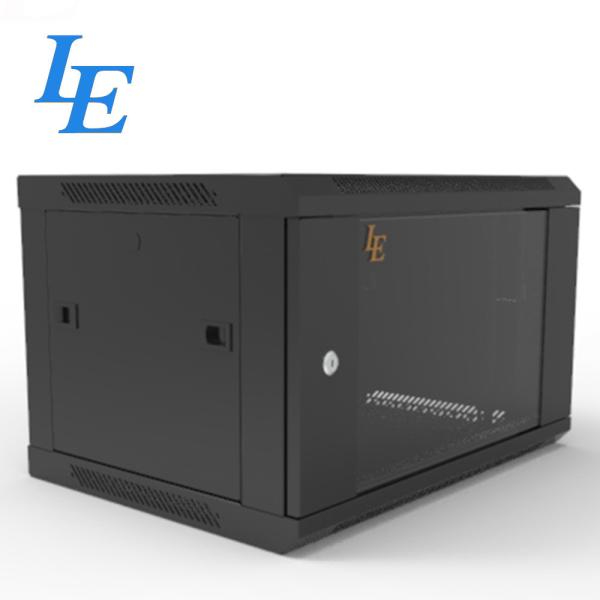

OEM IP20 19 Inch Wall Mounted Server Network Rack

Features:

Steel frame with assistant profile unassembled structure;
Single section,compatible with 19" standard equipments;
5mm tempered glass front door with over 180 turning degree;
Removable side panel,easy to install and lock optional;
Cable entry on the top and bottom;
L-shaped mounting profile,easy to adjustable on the mounting rail;
Fan cutout on the top,easy to install fan;
Back panel with four mounting holes,easy to fix on the wall;
Various accessories for option;
Flat packing,save the container space,easy to transport;

S/N

LE-WS3
Standard

Comply with ANS/EIA RS-310-D, IEC297-2,

DIN41491, PART1, DIN41491, PART7, ETSI Standard
Material SPCC quality cold rolled steel: Thickness:1.2mm;
Tempered glass: Thickness:5.0mm
Loading Capacity Static loading: 60kg
Degree of protection IP20
Surface Finish Degreasing; Pickling; Phosphating; Powder Coated
Product Specification 4U-18U
Width: 600mm
Depth: 450mm, 600mm

Wall Mount Server Rack Cabinet Static Loading 60kg With Assistant Profile

Wall Mount Server Rack Cabinet Static Loading 60kg With Assistant Profile

Main Structure

1. Installing Backboard

2. Horizontal mounting angle

3. Mounting profile (L-shaped)

4. Front frame

5. Cable entry plate

6. Top

7. Side panel

8. Tempered glass front door

9. Bottom

Our Advantages

1. 100% Manufacturer.

2. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.

3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.

4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.

5. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.

6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.

7. On time delivery rate more than 95%.
