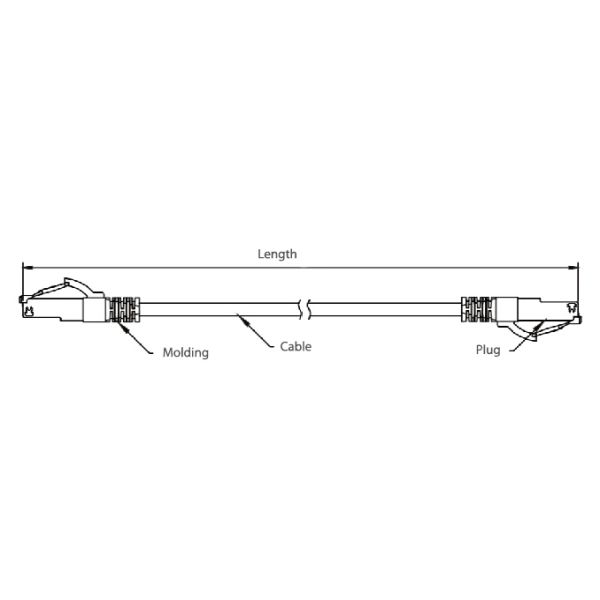

FTP/UTP 4 pairs cat6 patch cord

Electrical performance guaranteed to meet or exceed ANSI/TIA-568B CAT6 and ISO/EIC specifications

Independently tested and verified intertek(ETL)

Can support network line speeds in excess of 1 gigabit per second

DC resistance (max): 4.8Ω/100m at 20°C;
Mutual capactitance (max): 5.6nF/100m;
Unbalanced capacitance (max): 330pF/100m;
Dielectric strength between conductors (min): 2.5kV/2s;
Impedance: 1-250MHz 100±15Ω;
Differential phase delay (max): 45ns/100m;

Available with different plug mold

Available with different color of cable

Available with different length

1. Item Name	UTP CAT6 Lan Cable
   TYPE	Cat5E/CAT6/CAT6A/CAT7
   Construction	UTP/FTP/SFTP
   Conductor	CCA/23AWG Solid Copper/24AWG Solid Copper
   Number of Conductors	8
   Insulation Material	HDPE
   Cross Material	PP
   Application	Lan cable
   Jacket	PVC/LSZH
   Rip cord	Nylon
   Operating temperature	-20 ° C - +60 ° C
   Standard	EIA/TIA 568B.2 & ISO/IEC 11801/ ASTM / BS
   Certificate	CE/ISO/RoHS Approved



Our Advantages

1. 100% Manufacturer.

2. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.

3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.

4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.

5. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.

6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.

7. On time delivery rate more than 95%.
