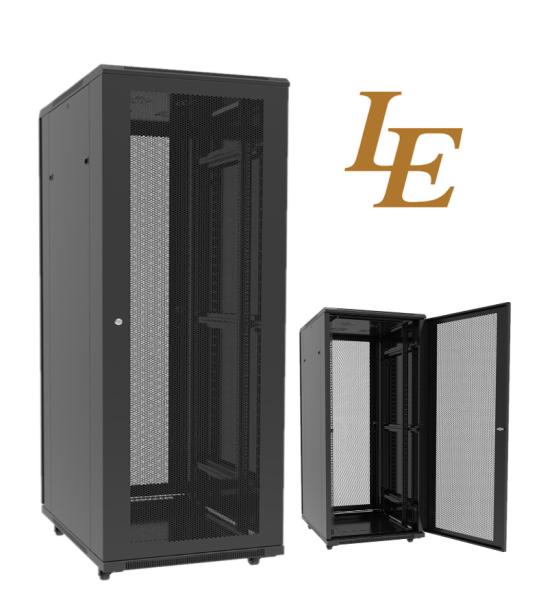

Customized SPCC Server Rack Network Cabinet With Vented Door 19 Inch 12U
Customized SPCC Server Rack Network Cabinet With Vented Door 19 Inch 12U
Specifications
Brand Name :
LE or OEM
Model Number :
NC
Certification :
CE&RoHs
Place of Origin :
Zhejiang, China (Mainland)
MOQ :
10 Piece/Pieces
Price :
Negotiable
Supply Ability :
2000 Piece/Pieces per Week Network Cabinet
Delivery Time :
1 month
Packaging Details :
Assembly packing or flat packing.
Product name :
19'' Network Cabinet With Tempered Glass Door
Cabinet Standard :
IEC297-2
Material :
SPCC Cold Rolled Steel
Size :
Customized
Color Serial :
Ral9004; Ral9005; Ral7035
Height :
18U-47U
Degree of protection :
IP20
Description

19Inch SPCC Floor Standing Network Cabinet With Vented Door

General Description

  1. Arc shaped vented front door with hexagonal holes, can turn over 180 turning degree
  2. Vented rear door with hexagonal holes
  3. Removable side panels with latch,easy to install, optional lock
  4. Adjustable cable entry on the top and bottom
  5. Welded steel frame for front and back part, flat packing is available,easy to transfer
  6. Optional plinth to fix cabinet on floor;under base cable entry
  7. Unassembled packing,about 2/5 of original volume,save container space
S/N LE-NC
Standard

Comply with ANS/EIA RS-310-D, IEC297-2,

DIN41491, PART1, DIN41491, PART7, ETSI Standard
Material SPCC quality cold rolled steel;
Mounting profile: Thickness:2.0mm; Others:1.2mm;
Tempered glass: Thickness:5.0mm
Loading Capacity Static loading: 800kg (on the adjustable feet)
Degree of protection IP20
Surface Finish Degreasing; Pickling; Phosphating; Powder Coated
Product Specification

18U-47U
Width: 600mm, 800mm
Depth: 600mm, 800mm, 900mm, 1000mm, 1200mm

Customized SPCC Server Rack Network Cabinet With Vented Door 19 Inch 12U

01: Top Cover

02: Fan Unit

03: Mounting Profile

04: Spacer

05: Mounting Angle

06: Rear Door With Hexagonal Holes

07: High-density Vented Rear Door

08: Steel Rear Door Without Hole

09: Bottom Panel

10: Heavy Duty Castor

11: Frame

12: Side Panel

13: Cable Management Slot

14: Tempered Glass Front Door

15: Arc Vented Front Door

16: 05J Border Glass Front Door

17: Single Vented Front Door

18: Steel Front Door

09: Bottom Panel

10: Heavy Duty Castor

11: Frame

12: Side Panel

13: Cable Management Slot

14: Tempered Glass Front Door

15: Arc Vented Front Door

16: 05J Border Glass Front Door

17: Single Vented Front Door

18: Steel Front Door

Customized SPCC Server Rack Network Cabinet With Vented Door 19 Inch 12U

Our Advantages

1. 100% Manufacturer.

2. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.

3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.

4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.

5. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.

6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.

7. On time delivery rate more than 95%.
