Technical specification | Dell EMC PowerEdge T550 |
processor | Up to two 3rd generation Intel Xeon Expandable processors (up to 32 cores per processor) |
memory | •16 DDR4 DIMM slots support up to 1 TB of RDIMMs at a rate of up to 3200 MT/s • Only registered ECC DDR4 DIMMs are supported |
Memory controller | • Internal controller: PERC H345, PERC H755, S150, H755N, HBA355i • Internal Boot: Internal dual SD modules, USB, Boot Optimized Storage Subsystem (BOSS-S2) : HWRAID 2 x M.2 SSD • External PERC (RAID) : PERC H840 • External HBA (non-RAID) : HBA355e |
Driver bracket | Front tray: • Up to eight 2.5-inch SAS/SATA (HDDS) with a maximum of 120 TB • Up to 16 2.5-inch SAS/SATA (HDDS) with a maximum of 240 TB • Up to 24 2.5-inch SAS/SATA (HDDS), up to 360 TB • Up to 8 x 3.5 inches SAS/SATA (HDD/SSD), up to 120 TB • Up to 8 x 3.5-inch SAS/SATA (HDD) + 8 x 2.5-inch NVMe (SSD), up to 240 TB |
Power supply unit | •600 W Platinum class 100-240 VAC or 240 HVDC with hot swap redundancy •800W Platinum class 100-240 VAC or 240 HVDC with hot swap redundancy •1100 W Titanium grade 100-240 VAC or 240 HVDC or -48 V with hot swap redundancy •1400W Platinum class 100-240 VAC or 240 HVDC with hot swap redundancy •2400W Platinum class 100-240 VAC or 240 HVDC with hot swap redundancy |
Cooling option | Air cooling |
fan | • Standard (STD) fan/High Performance (HPR) Silver level fan • Up to eight hot-swap fans |

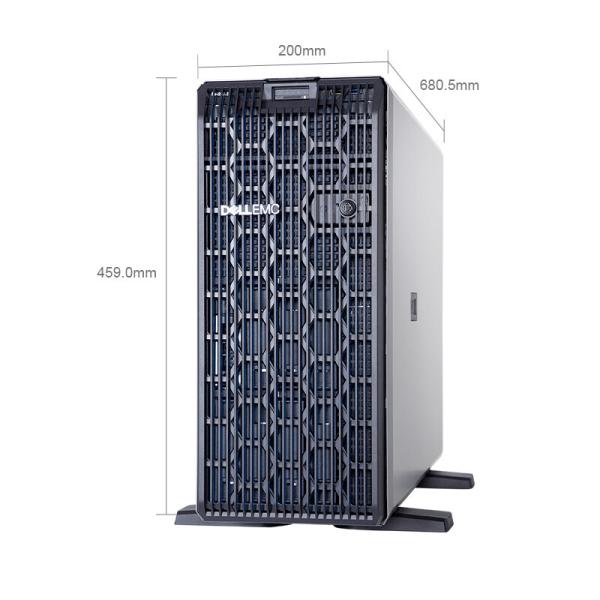

dimension | • Height - 459.0 mm (18.07 in) • Width - 200.0 mm (7.87 in) • Depth -- 663.5 mm (26.12 in) -- no baffles 680.5 mm (26.79 in) - with baffle |
Contour specification | 5U tower server |
baffle | Optional LCD baffle or safety baffle |
Network option | 1 x OCP 3.0 |
GPU options | Up to two dual width 300 W NVIDIA A40 or five single width 70 W NVIDIA T4 accelerators |
port | preport •1 iDRAC Direct (Micro-AB USB) port (optional) •1 USB 2.0 •1 USB 3.0 Back port •1 USB 2.0 • One iDRAC Ethernet port •1 serial (optional) •1 USB 3.0 •1 VGA Internal port •1 x USB 3.0 (optional) |
PCIe | Five PCIe Gen4 slots plus one PCIe Gen3 slot •3 x16 4.0 (x16 connector) full height, half length •1 x4 3.0 (x8 connector) full height and half length •2 x16 4.0 (x16 connector) Full height, full length (optional) |
System | Windows server/Linux/ubuntu |
Warranty | 3 Years |
