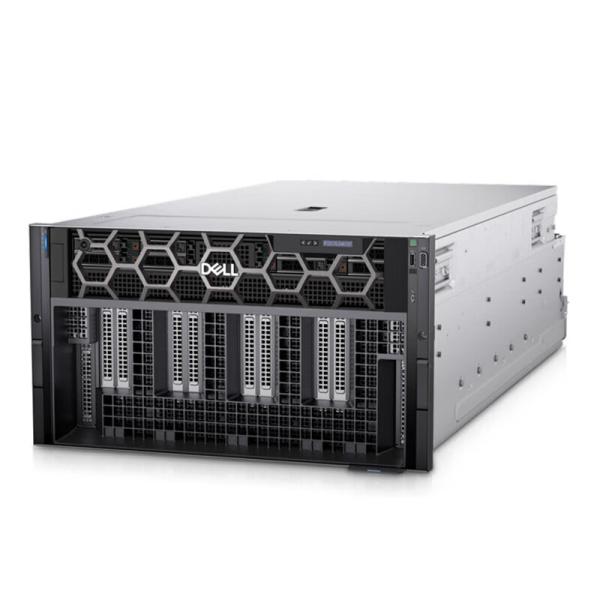

Dell PowerEdge XE9680 Server 2 Xeon 6430 CPUs 1024GB RAM 480GB SSD and 5 3.2TB SSDs
Dell PowerEdge XE9680 Server 2 Xeon 6430 CPUs 1024GB RAM 480GB SSD and 5 3.2TB SSDs
Dell PowerEdge XE9680 Server 2 Xeon 6430 CPUs 1024GB RAM 480GB SSD and 5 3.2TB SSDs
Dell PowerEdge XE9680 Server 2 Xeon 6430 CPUs 1024GB RAM 480GB SSD and 5 3.2TB SSDs
Specifications
Private Mold :
Yes
Products Status :
Stock
Type :
Rack
Processor Main Frequency :
other
Processor Type :
Xeon series
Brand Name :
Dell-
Model Number :
xe9680
Place of Origin :
Beijing, China
Product Name :
PowerEdge XE9680
Processor :
xeon series
The number of CPU supported :
Supports 2 processors
Memory slots :
32 DDR5 DIMM slots
Hard disk location :
8*3.5inch SAS/SATA
Power Supply :
2800W Titanium 200-240 VAC or 240 VDC, hot swap redundant
CS(chipset) :
C741 chipset
Weight :
113.3 KG
System :
Canonical Ubuntu Server LTS
Warranty :
3 Years
Price :
$234,600.00/pieces >=1 pieces
MOQ :
1 unit
Description
Product Description
Dell PowerEdge XE9680 Server 2 Xeon 6430 CPUs 1024GB RAM 480GB SSD and 5 3.2TB SSDs
Dell PowerEdge XE9680 Server 2 Xeon 6430 CPUs 1024GB RAM 480GB SSD and 5 3.2TB SSDs
PowerEdge XE9680
Experience extreme acceleration for Generative AI and ML/DL training with Dell’s first 8-way GPU server

The Dell PowerEdge XE9680 is a high-performance server designed and optimized for AI training & HPC use cases like • Large language Models • Recommendation engines • Molecular Dynamics and Genome Sequencing

No compromise AI infrastructure

The Dell XE9680 6U server is Dell’s first 8x GPU platform. It is engineered to significantly enhance application performance by driving the most complex GenAI, Machine Learning, Deep Learning (ML/DL) and High Performance Computing workloads (HPC). This server features up to 56-core 4th generation Intel Xeon processors and offers the highest GPU memory capacity and bandwidth currently available, making it capable of managing extremely large and complex models and datasets.
Tailor your configuration with your choice of GPU modules • Offering either eight NVIDIA H100 SXM5 700W GPUs fully interconnected with NVLink, or eight NVIDIA A100 SXM4 500W GPUs fully interconnected with NVLink, or eight AMD Instinct MI300X 750W OAM GPUs fully interconnected with Infinity Fabric links. • Improve generative AI training performance with GPU-GPU communication and up to 1.5TB* shared coherent GPU memory integrated into these offers.
Accelerated I/O throughput • Deploy latest generation technologies including DDR5, PCIe Gen 5.0, and NVMe SSDs to push the boundaries of data flow and computing possibilities. • Up to 10 front-facing PCIe Gen 5 slots and up to 16 drives enable optimal expansion for high-performance realtime AI operations. • Dell Validated Designs for Generative AI and comprehensive Dell Services offerings take the guesswork of out infrastructure and workflow integration
Cyber Resilient Architecture for Zero Trust IT environment & operations Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.
Increase efficiency and accelerate operations with an autonomous infrastructure The Dell OpenManage™ systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.
Sustainability From recycled materials in our products and packaging, to thoughtful, innovative options for energy efficiency, the PowerEdge portfolio is designed to make, deliver, and recycle products to help reduce the carbon footprint and lower your operation costs. We even make it easy to retire legacy systems responsibly with Dell Technologies Services.

Rest easier with Dell Technologies Services Maximize your PowerEdge Servers with comprehensive services ranging from Consulting, to ProDeploy and ProSupport suites, Data Migration and more – available across 170 countries and backed by our 60K+ employees and partners.
Specification
Technical specification
PowerEdge XE9680
Processor
Two 4th Generation Intel Xeon Scalable processors with up to 56 cores per processor
Memory
• 32 DDR5 DIMM slots, supports RDIMM 4 TB max, speeds up to 4800 MT/s
• Supports registered ECC DDR5 DIMMs only
GPU
• 8 NVIDIA HGX H100 80GB 700W SXM5 GPUs, fully interconnected with NVIDIA NVLink technology
• 8 NVIDIA HGX A100 80GB 500W SXM4 GPUs, fully interconnected with NVIDIA NVLink technology
• 8 AMD Instinct MI300X 192GB 750W OAM accelerator with AMD Infinity Fabric connectivity
Storage controllers
• Internal boot: Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs
• Software RAID: S160
Drive bays
Front Bays
• Up to 8 x 2.5-inch NVMe/SAS/SATA SSD drives max 122.88 TB
• Up to 16 x E3.S NVMe direct drives max 122.88 TB
Power Supplies
2800W Titanium 200-240 VAC or 240 VDC, hot swap redundant
Cooling Options
Air cooling
chipset
Intel® C741 chipset
PCIe
Up to 10 x16 Gen5 (x16 PCIe) full-height, half-length
Embedded NIC
2 x 1 GbE
Network Options
1 x OCP 3.0 (x8 PCIe lanes)
Fans
• Up to six high performance (HPR) gold grade fans installed in mid tray
• Up to ten high performance (HPR) gold grade fans installed on the rear of the system
• All are hot swap fans
Dimensions and weight
• Height — 263.2 mm (10.36 inches)
• Width — 482.0 mm (18.97 inches)
• Depth — 1008.77 mm (39.71 inches) with bezel — 995 mm (39.17 inches) without bezel
• Weight —113.3 kg (249.78 pounds)
Form Factor
6U rack server
Warranty
3 Years
Ports
Front ports
• 1 x iDRAC Direct (Micro-AB USB) port
• 1 x USB 2.0
• 1 x VGA

Rear ports
• 1 x USB 2.0
• 1 x USB 3.0
• 1 x VGA
• 1 x RJ45 iDRAC9 ethernet port
Packing & Delivery
Dell PowerEdge XE9680 Server 2 Xeon 6430 CPUs 1024GB RAM 480GB SSD and 5 3.2TB SSDs
Dell PowerEdge XE9680 Server 2 Xeon 6430 CPUs 1024GB RAM 480GB SSD and 5 3.2TB SSDs
Dell PowerEdge XE9680 Server 2 Xeon 6430 CPUs 1024GB RAM 480GB SSD and 5 3.2TB SSDs
Dell PowerEdge XE9680 Server 2 Xeon 6430 CPUs 1024GB RAM 480GB SSD and 5 3.2TB SSDs
Factory original packaging
