Huawei 03024QDB CE-L48XS-FD1 48-port 10GBASE-X interface card (FD1, SFP+) for CE12804/CE12808/CE12812/CE12816
Huawei 03024QDB CE-L48XS-FD1 48-port 10GBASE-X interface card (FD1, SFP+) for CE12804/CE12808/CE12812/CE12816
Huawei 03024QDB CE-L48XS-FD1 48-port 10GBASE-X interface card (FD1, SFP+) for CE12804/CE12808/CE12812/CE12816
Huawei 03024QDB CE-L48XS-FD1 48-port 10GBASE-X interface card (FD1, SFP+) for CE12804/CE12808/CE12812/CE12816
Huawei 03024QDB CE-L48XS-FD1 48-port 10GBASE-X interface card (FD1, SFP+) for CE12804/CE12808/CE12812/CE12816
Huawei 03024QDB CE-L48XS-FD1 48-port 10GBASE-X interface card (FD1, SFP+) for CE12804/CE12808/CE12812/CE12816
Huawei 03024QDB CE-L48XS-FD1 48-port 10GBASE-X interface card (FD1, SFP+) for CE12804/CE12808/CE12812/CE12816
Huawei 03024QDB CE-L48XS-FD1 48-port 10GBASE-X interface card (FD1, SFP+) for CE12804/CE12808/CE12812/CE12816
Huawei 03024QDB CE-L48XS-FD1 48-port 10GBASE-X interface card (FD1, SFP+) for CE12804/CE12808/CE12812/CE12816
Huawei 03024QDB CE-L48XS-FD1 48-port 10GBASE-X interface card (FD1, SFP+) for CE12804/CE12808/CE12812/CE12816
Huawei 03024QDB CE-L48XS-FD1 48-port 10GBASE-X interface card (FD1, SFP+) for CE12804/CE12808/CE12812/CE12816
Huawei 03024QDB CE-L48XS-FD1 48-port 10GBASE-X interface card (FD1, SFP+) for CE12804/CE12808/CE12812/CE12816
Specifications
Model Number :
03024QDB CE-L48XS-FD1
Place of Origin :
Beijing, China
Packaging Details :
New Original Packing
Supply Ability :
100 Piece/Pieces per Quarter
MOQ :
2 pieces
Price :
$2,200.00/pieces >=2 pieces
Brand Name :
HUAWEI
Products Status :
Stock
Type :
Wired
Kind :
External
Transmission Rate :
1000Mbps
Description
Product Description
Huawei 03024QDB CE-L48XS-FD1 48-port 10GBASE-X interface card (FD1, SFP+) for CE12804/CE12808/CE12812/CE12816
Huawei 03024QDB CE-L48XS-FD1 48-port 10GBASE-X interface card (FD1, SFP+) for CE12804/CE12808/CE12812/CE12816
Huawei 03024QDB CE-L48XS-FD1 48-port 10GBASE-X interface card (FD1, SFP+) for CE12804/CE12808/CE12812/CE12816
Huawei 03024QDB CE-L48XS-FD1 48-port 10GBASE-X interface card (FD1, SFP+) for CE12804/CE12808/CE12812/CE12816
Huawei 03024QDB CE-L48XS-FD1 48-port 10GBASE-X interface card (FD1, SFP+) for CE12804/CE12808/CE12812/CE12816
Huawei 03024QDB CE-L48XS-FD1 48-port 10GBASE-X interface card (FD1, SFP+) for CE12804/CE12808/CE12812/CE12816
Specification

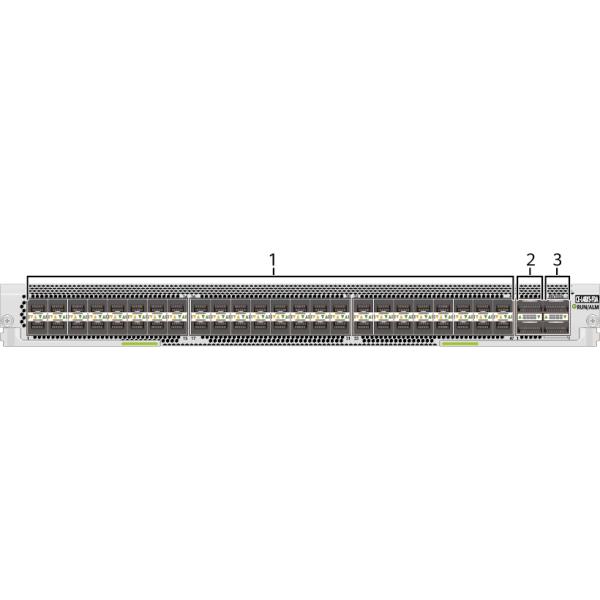

CE-L48XS-FD1 (48-Port 10GBASE-X Interface Card (FD1, SFP+))
Introduction
The CE-L48XS-FD1 provides data packet processing and traffic management on 48 10GE/25GE optical ports.
The CE-L48XS-FD1 can be installed in:
Slots 1 to 4 of the CE12804 chassis, as shown in Slot layout in the CE12804 chassis
Slots 1 to 8 of the CE12808 chassis, as shown in Slot layout in the CE12808 chassis
Slots 1 to 12 of the CE12812 chassis, as shown in Slot layout in the CE12812 chassis
Slots 1 to 16 of the CE12816 chassis, as shown in Slot layout in the CE12816 chassis
Slots 1 to 4 of the CE12804S chassis, as shown in Slot layout in the CE12804S chassis
Slots 1 to 8 of the CE12808S chassis, as shown in Slot layout in the CE12808S chassis
Functions and features
Function and Feature
Description
Basic function
The CE-L48XS-FD1 provides data packet processing and traffic management on 48 10GE/25GE optical ports.
Maximum port density
If all LPUs are CE-L48XS-FD1 cards:
The CE12804/CE12804S chassis provides a maximum of 192 10GE/25GE optical ports.
The CE12808/CE12808S chassis provides a maximum of 384 10GE/25GE optical ports.
The CE12812 chassis provides a maximum of 576 10GE/25GE optical ports.
The CE12816 chassis provides a maximum of 768 10GE/25GE optical ports.
High 10GE/GE port density (48x10GE/GE)
When the 10GE ports work in 10GE mode, they support SFP+ 10GE optical modules, and can work with 10GE Twinax high-speed cables or
AOC cables.
Optical ports on a CE-L48XS-FD1 card work at the rate of 10 Gbit/s by default. You can run the port mode 25ge command to configure
the ports to work at the rate of 25 Gbit/s. The ports support SFP28 optical modules, SFP28 high-speed cables, and AOC cables.
In versions earlier than V200R005C00, 10GE optical ports on the CE-L48XS-FD1 card cannot work at the rate of 1 Gbit/s. In
V200R005C00 and later versions, 10GE optical ports on the card support GE optical and copper modules. When a GE copper module is
installed on a 10GE optical port, the port supports only the rate of 1000 Mbit/s. When a GE optical module is installed on a 10GE
optical port, the port works in non-auto-negotiation mode by default and does not support the auto-negotiation configuration.
