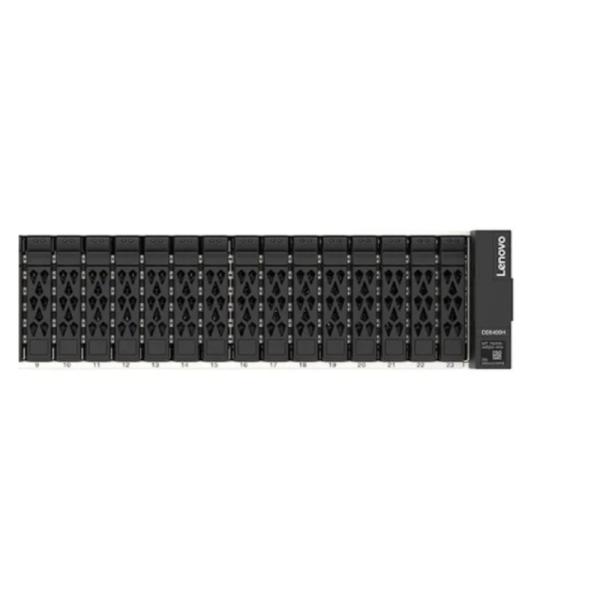

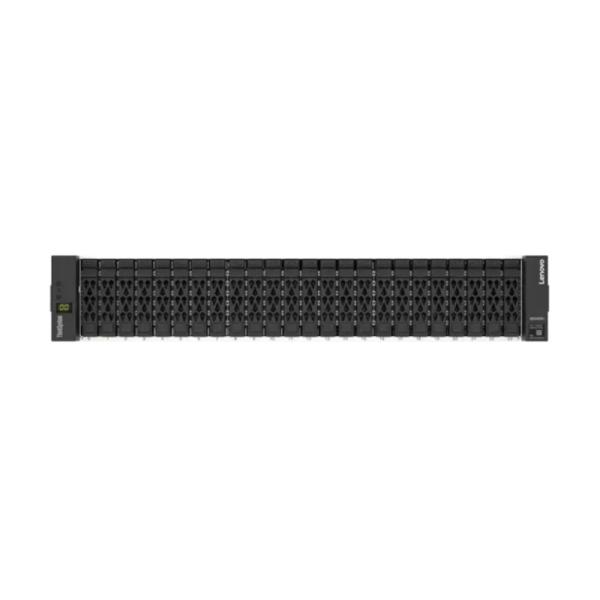

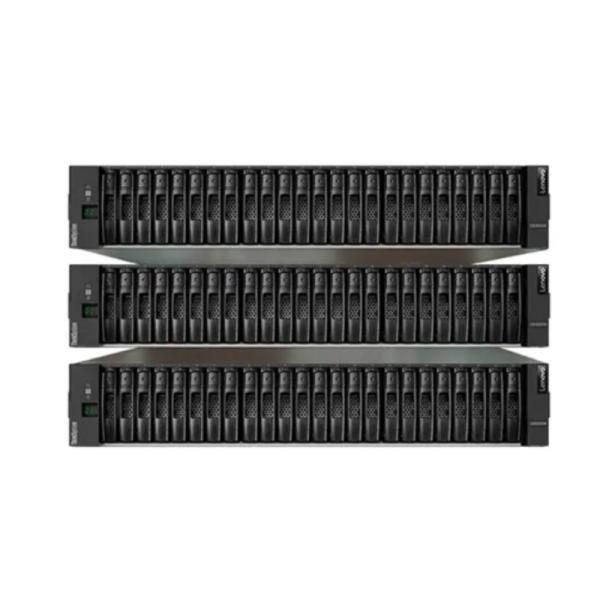

Highly Secure ThinkSystem DE6400H Hybrid Storage Array NVMe Base Controller
Highly Secure ThinkSystem DE6400H Hybrid Storage Array NVMe Base Controller
Highly Secure ThinkSystem DE6400H Hybrid Storage Array NVMe Base Controller
Highly Secure ThinkSystem DE6400H Hybrid Storage Array NVMe Base Controller
Highly Secure ThinkSystem DE6400H Hybrid Storage Array NVMe Base Controller
Highly Secure ThinkSystem DE6400H Hybrid Storage Array NVMe Base Controller
Highly Secure ThinkSystem DE6400H Hybrid Storage Array NVMe Base Controller
Highly Secure ThinkSystem DE6400H Hybrid Storage Array NVMe Base Controller
Specifications
Brand Name :
Lenovo
Model Number :
DM5000H/F DM7100H/F
Place of Origin :
China
Packaging Details :
Original Packing
Supply Ability :
100 Carton/Cartons per Month
MOQ :
1 pieces
Price :
$6666.00 - $9,800.00/pieces
Payment Terms :
T/T
Delivery Time :
1-2months
Model :
DE6400H
Segment :
Midrange NVMe
Controller :
NVMe base
IOPS :
Up to 670K IOPS
Maximum Drives :
96
Sustained Throughput :
Up to 10GBps
Networking :
Flexible IO (100 Gb NVMe/IB)
Scale up :
Up to 264 drives (4xDE600S SAS + 1 enclosure controller NVMe)
Description
Highly Secure ThinkSystem DE6400H Hybrid Storage Array NVMe Base Controller
Highly Secure ThinkSystem DE6400H Hybrid Storage Array NVMe Base Controller
Highly Secure ThinkSystem DE6400H Hybrid Storage Array NVMe Base Controller
DE6000H
DE4000H
DE6400H
DE6600H
Form Factor (Controller Enclosure)
4U, 60 drives
2U, 24 drives
2U, 24 drives
2U, 12 drives
4U, 60 drives
2U, 24 drives (NVMe)
2U, 24 drives (NVMe)
Maximum Raw Capacity
Supports up to 8.64PB
Supports up to 3.456PB
Supports up to 4.68PB
Supports up to 7.92PB
Maximum Drives
Supports up to 480 HDDs / 120 SSDs
Supports up to 192 HDDs / 120 SSDs
Supports up to a maximum of 264 drives (24 NVMe in Controller Enclosure + 240 NL-SAS HDDs)
Supports up to a maximum of 444 drives (24 NVMe in Controller Enclosure + 420 NL-SAS HDDs)
Maximum Expansion
2U/12, 2U/24: up to 7 expansions
4U/60: up to 3 expansions
2U/12, 2U/24: up to 7 expansions
4U/60: up to 3 expansions
2U/12, 2U/24, 4U/60: up to 4 expansions
2U/12, 2U/24, 4U/60: up to 4 expansions
IOPS
1,000,000 IOPS
300,000 IOPS
670,000 IOPS
2,000,000 IOPS
System Memory
32GB/128GB
16GB/64GB
16GB per controller
32GB or 128GB per controller
Optional I/O Ports (per system)
8x 16Gb/32Gb FC
8x 10Gb/25Gb iSCSI
8x 12Gb SAS
8x 16Gb/32Gb FC
8x 10Gb/25Gb iSCSI
8x 12Gb SAS
4x 100Gb NVMe/IB, NVMe/RoCe, SRP/IB and iSER/IB
8x 32Gb FC (supports FC SCSI and NVMe/FC)
8x 25Gb iSCSI
8x 100Gb NVMe/IB, NVMe/RoCe, SRP/IB and iSER/IB
16x 32Gb FC (supports FC SCSI and NVMe/FC)
16x 25Gb iSCSI
Highly Secure ThinkSystem DE6400H Hybrid Storage Array NVMe Base Controller
Highly Secure ThinkSystem DE6400H Hybrid Storage Array NVMe Base Controller
Highly Secure ThinkSystem DE6400H Hybrid Storage Array NVMe Base Controller
Highly Secure ThinkSystem DE6400H Hybrid Storage Array NVMe Base Controller
